Horn Switch Test
- Remove the steering column covers (see STEERING COLUMN REMOVAL AND INSTALLATION
).

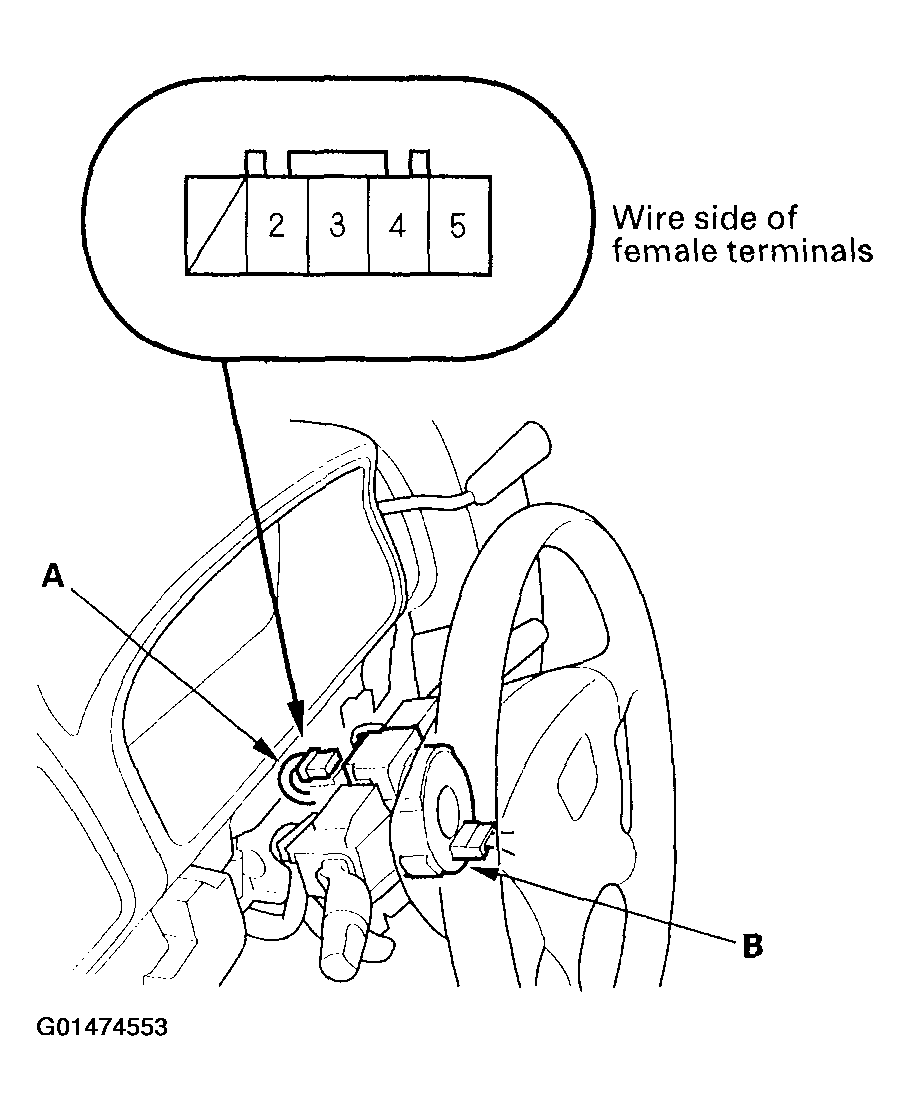

- Disconnect the dashboard wire harness B 5P connector (A) from the cable reel (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Using a jumper wire, connect the dashboard wire harness B 5P connector (A) No. 2 terminal to body ground.
- If the horns sound, go to step 4.
- If the horns do not sound, check these items:
- Horn relay
- No. 7 (15A) fuse in the under-hood fuse/relay box.
- Horn Test/Replacement (see Horn Test/Replacement
)
- An open in the wire

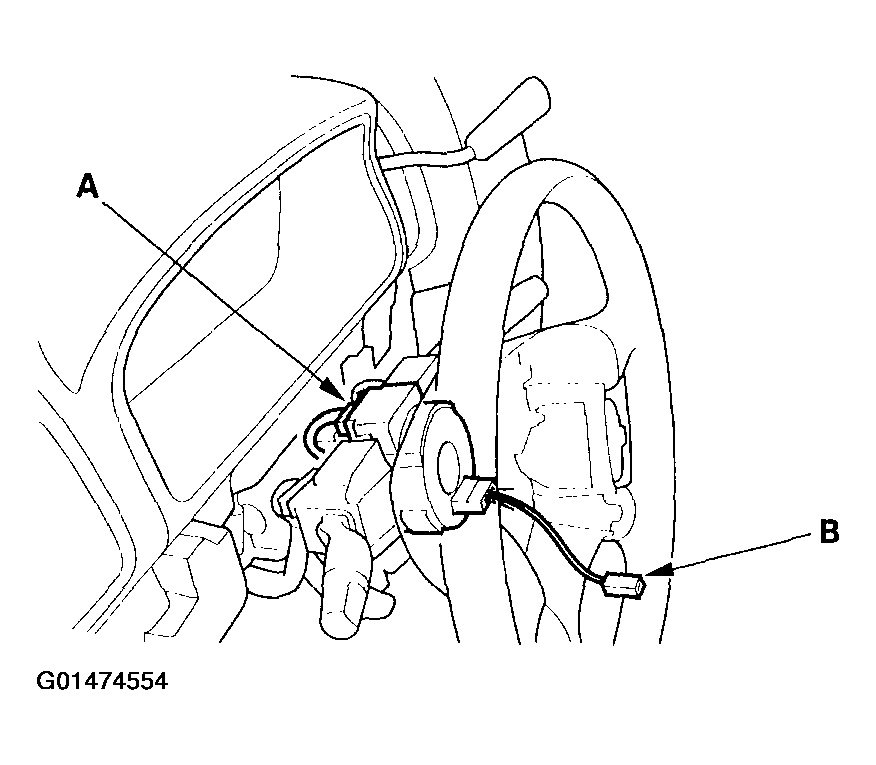

- Reconnect the dashboard wire harness B 5P connector (A), and disconnect the horn switch positive 1P connector (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Using a jumper wire, connect the horn switch positive 1P connector to body ground.
- If the horns sound, go to step 6.
- If the horns do not sound, replace the cable reel.
- Reconnect the horn switch positive connector (B).
- Using a jumper wire, connect the steering wheel to body ground.
- Close the contact between the horn plate and the contact place.
- If the horns sound, replace the steering column.
- If the horns do not sound, replace the horn plate and the contact plate.
