Horn Test/Replacement

  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).

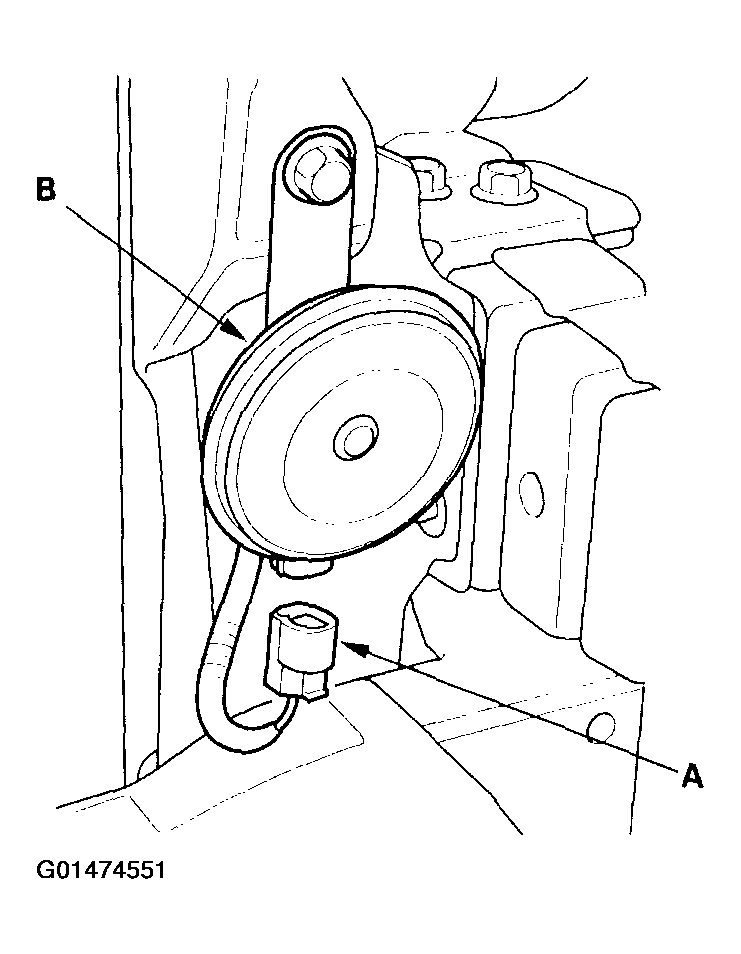

  2. Disconnect the 1P connector (A), and remove the horn (B).
    Fig 1: Removing Horn
    G01474551Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the horn by connecting battery power to the terminal (A) and ground to the bracket (B). The horn should sound.
    Fig 2: Testing Horn By Connecting Battery Power To Terminal & Ground To Bracket
    G01474552Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the horn fails to sound, replace it.
