Front Door Outer Handle Replacement

NOTE: Put on gloves to protect your hands.

Remove these items:
- Door panel (see Front Door Panel Removal/Installation )
- Plastic cover, as necessary (see Component Location Index )
Raise the glass fully.

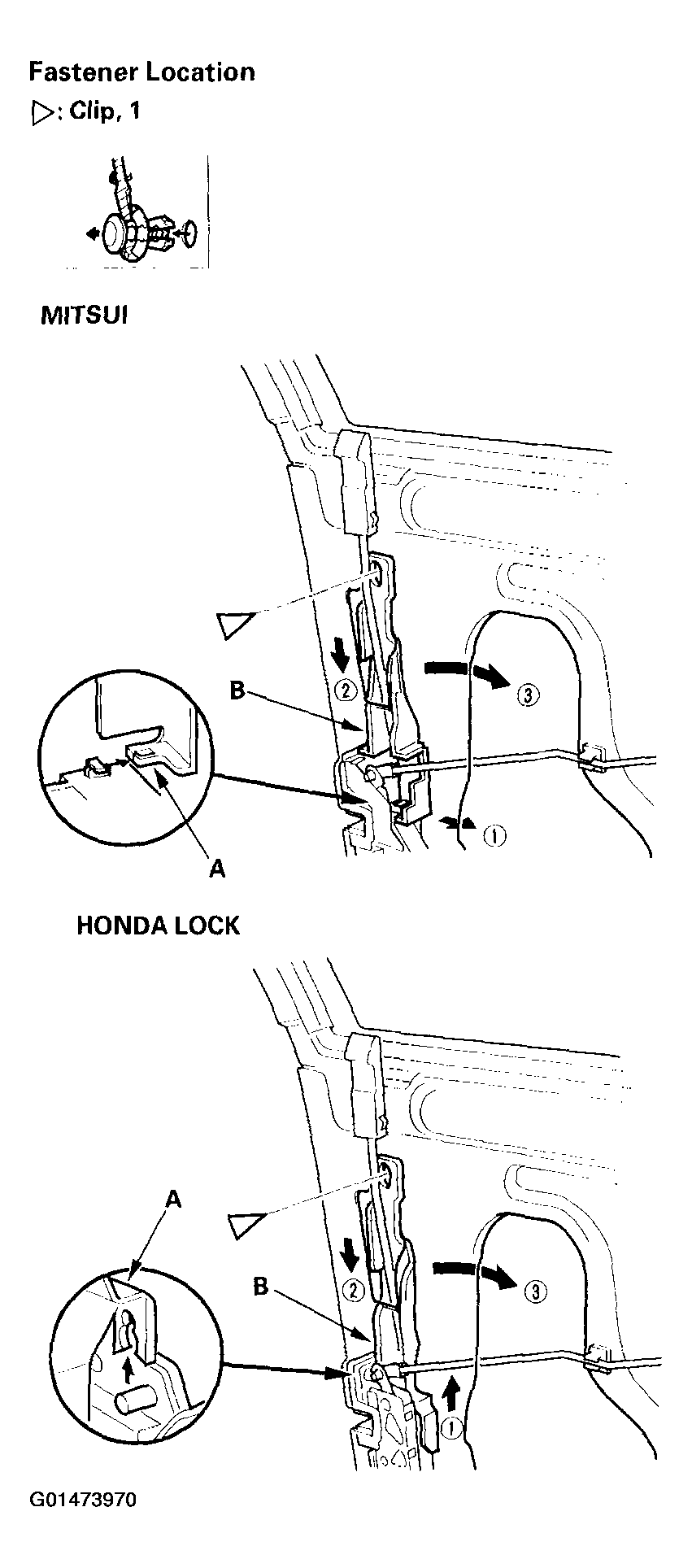

Release the clip and detach the hook (A), then remove the lock rod protector (B).

Fig 1: Removing Lock Rod Protector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the outer handle rod (A) and cylinder rod (B).

Fig 2: Disconnecting Outer Handle Rod & Cylinder Rod
Courtesy of AMERICAN HONDA MOTOR CO., INC.

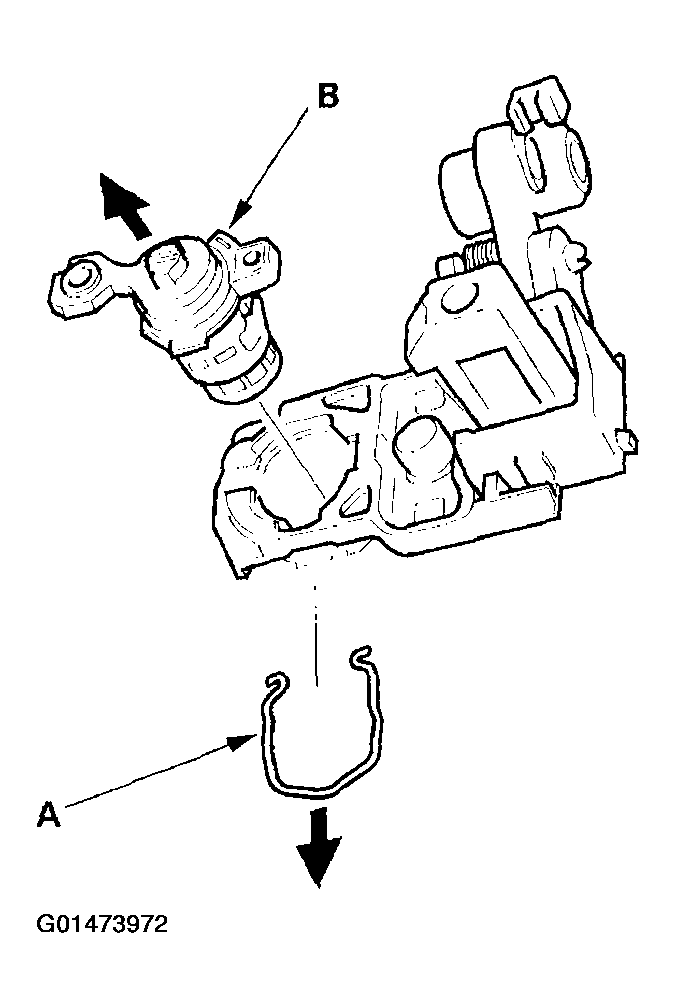

Release the retainer clip (A) with a hook-shaped tool. Remove the lock cylinder (B).

Fig 3: Removing Lock Cylinder
Courtesy of AMERICAN HONDA MOTOR CO., INC.

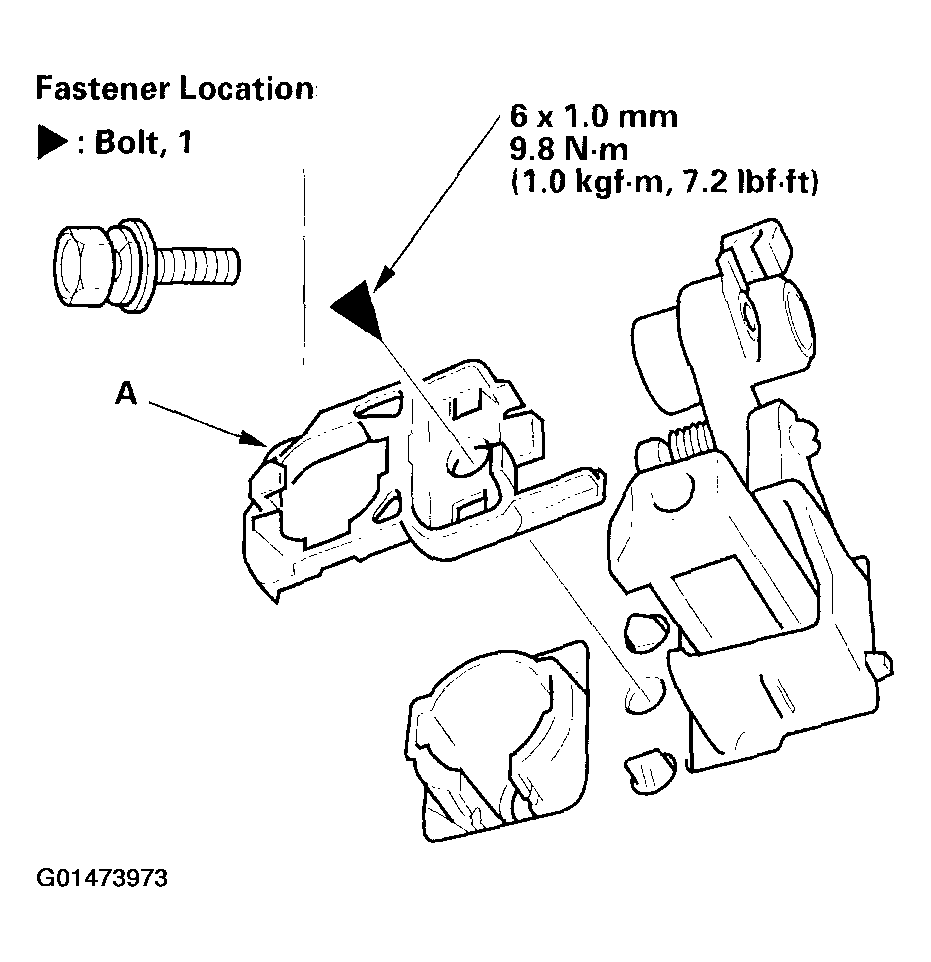

Remove the bolt, then remove the cylinder protector (A).

Fig 4: Removing Cylinder Protector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

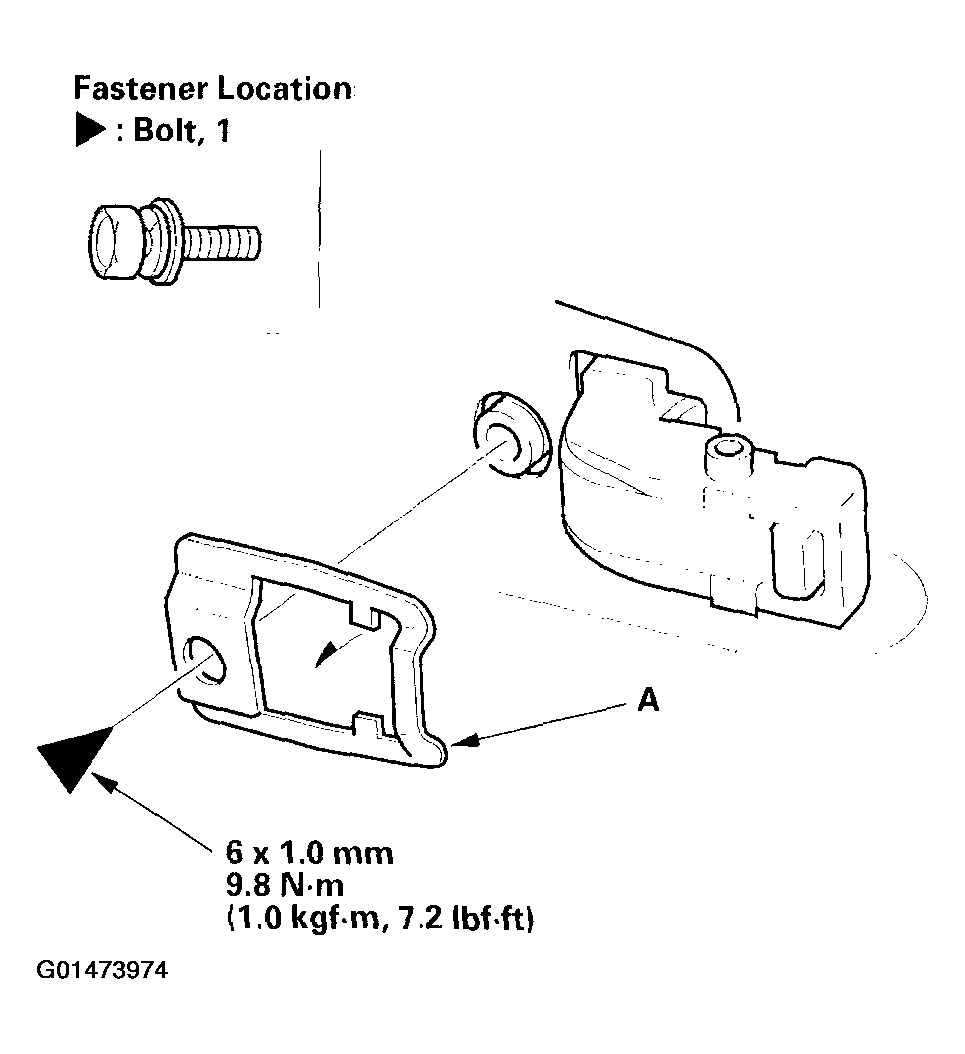

Remove the bolt, then remove the spacer (A).

Fig 5: Removing Spacer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
While pulling the outer handle (A), remove the handle from the holes in the door panel. Take care not to scratch the door.

Fig 6: Removing Handle From Holes In Door Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the handle in the reverse order of removal, and note these items:
- Make sure each rod is connected securely.
- Make sure the door locks and opens properly.
- When installing the lock cylinder, leave the outer door handle bolts loose so the inner protector does not interfere with the lock cylinder installation, then tighten the handle bolts.
- Install the lock cylinder retaining clip on the handle, then install the lock cylinder. Be sure the clip is fully seated in the slot on the lock cylinder.
- When reinstalling the door panel, make sure the plastic cover is installed properly and sealed around its perimeter.
