Front Door Panel Removal/Installation

Special Tools Required

• Trim pad remover, Snap-on A 177A, or equivalent, commercially available.
• KTC trim tool set SOJATP2014

1. Using a trim tool, pry out the upper portion of the cover (A) to release the hooks (B), then remove the cover.
   Fig 1: Removing Cover

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the screws.
3. Driver's door: Pull the inner handle (A) rearward and out half-way to release the power door lock switch bracket (B) from the door panel (C).
   Fig 2: Pulling Inner Handle Rearward (Driver's Door)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Passenger's door: Pull the inner handle (A) half-way.
   Fig 3: Pulling Inner Handle Half-Way (Passenger's Door)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Driver's door: Disconnect the power door lock switch connector (A). Disconnect the inner handle rod (B), then remove the inner handle (C).
   Fig 4: Disconnecting Power Door Lock Switch Connector. Disconnecting Inner Handle Rod

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Lower the glass fully.
7. Remove the screws from under the armrest.
   Fig 5: Removing Screws From Under Armrest

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

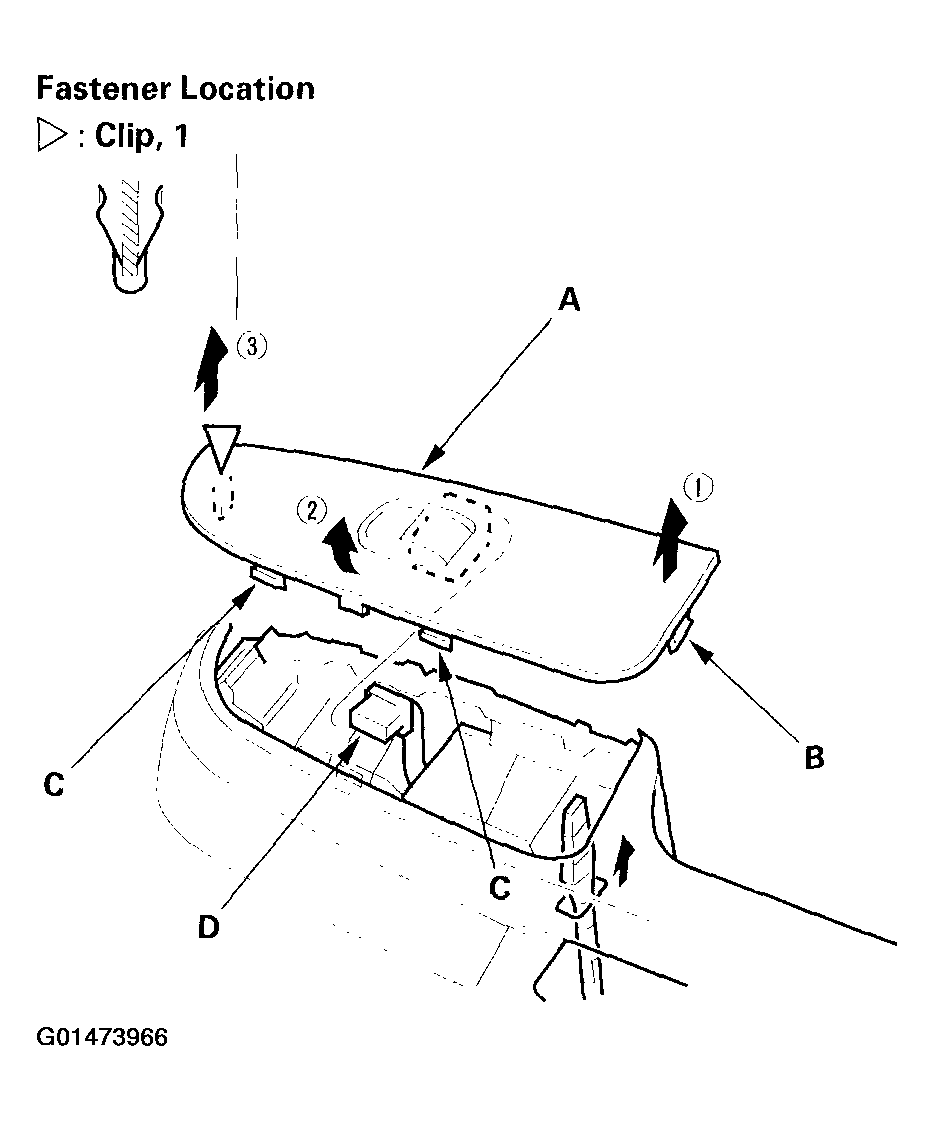

8. Passenger's door: Remove the switch panel (A).
   1. Insert a flat-tip screwdriver wrapped with protective tape through a hole under the armrest, and push up the back of the panel to release the rear hook (B).
   2. Pull out along the edge of the panel to release the hooks (C) and clip.
   3. Disconnect the power window switch connector (D).
      Fig 6: Removing Switch Panel

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Remove the mirror mount cover (see POWER MIRROR REPLACEMENT ).

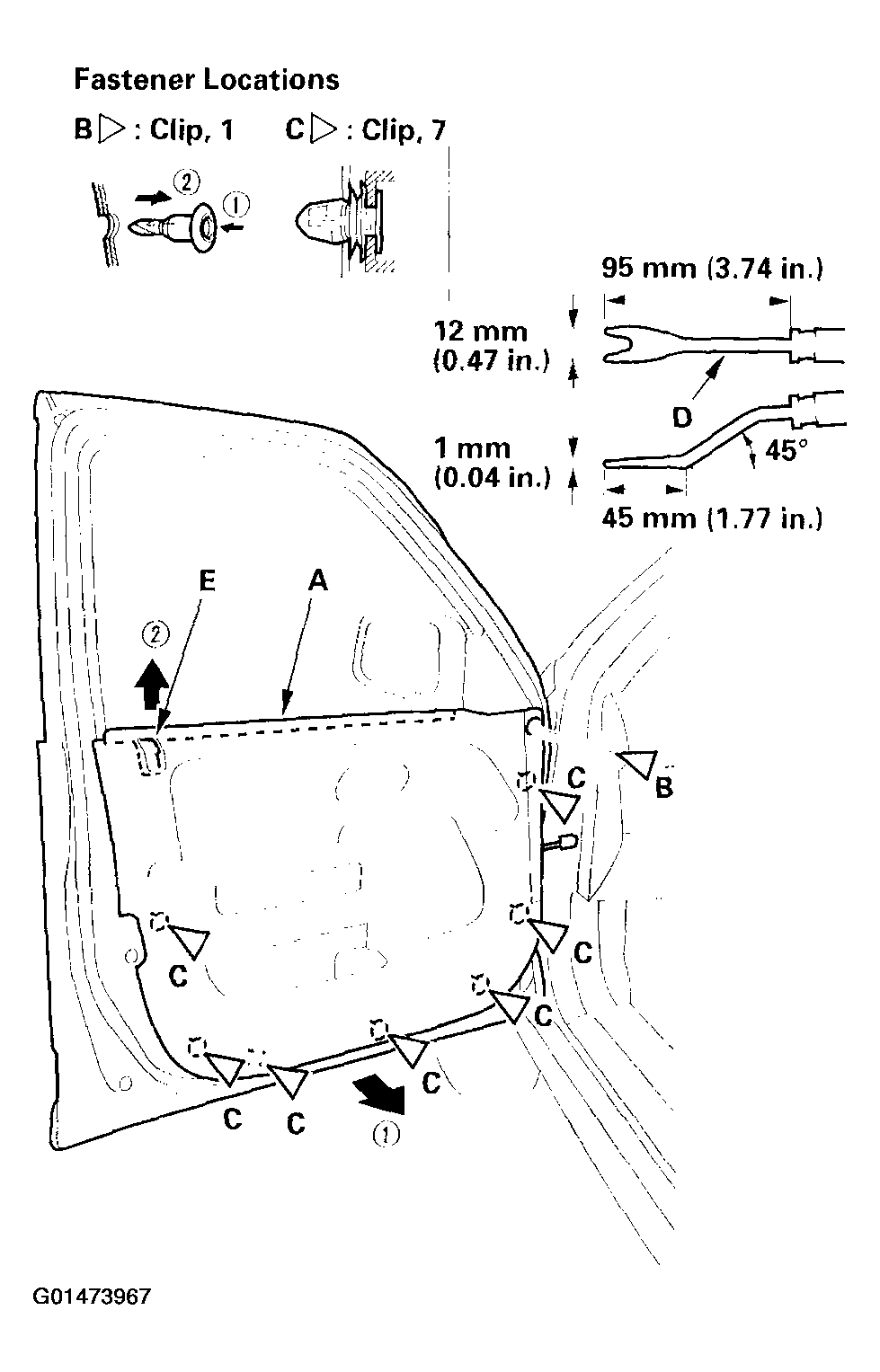

10. Remove the door panel (A) with as little bending as possible to avoid creasing or breaking it.
    1. Release the clip (B).
    2. Release the clips (C) that hold the door panel with a commercially available trim pad remover (D).
    3. Starting at the rear, pull the door panel upward, then release the lock knob (E).
       Fig 7: Removing Door Panel

       Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. Driver's door: Disconnect the power window switch connector (A), power mirror switch connector (B), hatch glass opener switch connector (C), and detach the harness clips (D) from the back of the door panel.
    Fig 8: Disconnecting Power Window Switch Connector, Power Mirror Switch Connector, Hatch Glass Opener Switch Connector (Driver's Door)

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

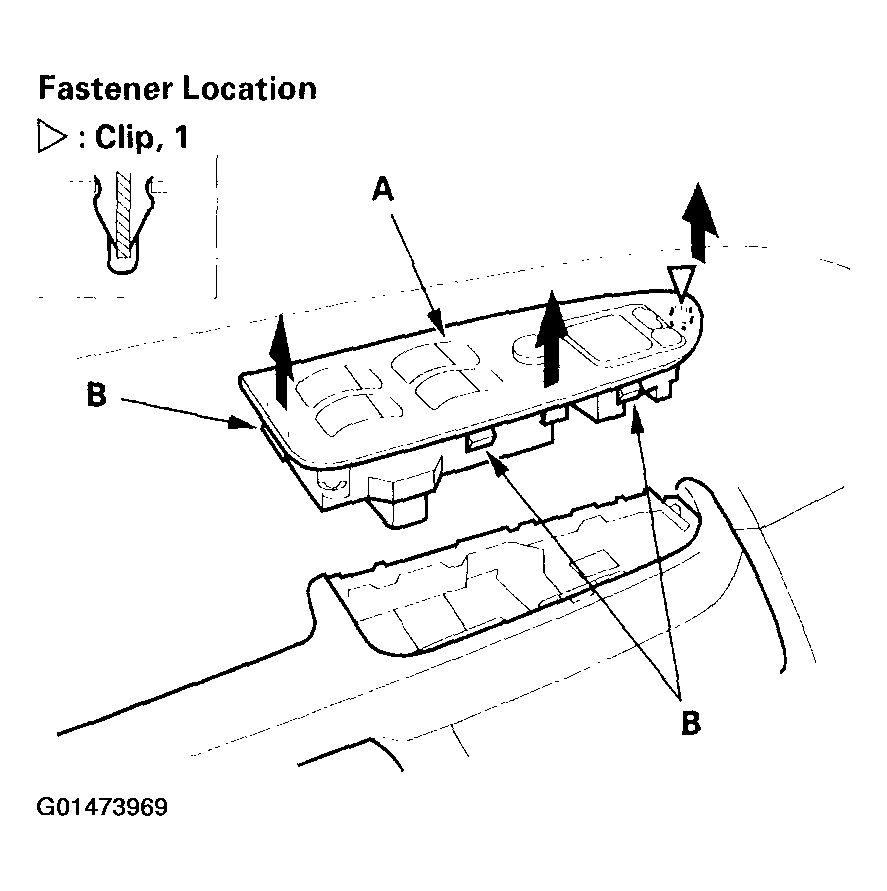

12. Driver's door: Push up the back of the switch panel (A) to release the clip and hooks (B), then remove the panel.
    Fig 9: Pushing Up Back Of Switch Panel

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
13. Install the panel in the reverse order of removal, and note these items:
    • Replace any damaged clips.
    • Make sure the connectors are plugged in properly, and the rod is connected properly.
    • Push the clips into place securely.
    • Do the power window control unit reset procedure (see RESETTING THE POWER WINDOW CONTROL UNIT ).
    • Check the window and power door lock operations.
