Switch Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 6P connector (A) from the seat heater switch (B).

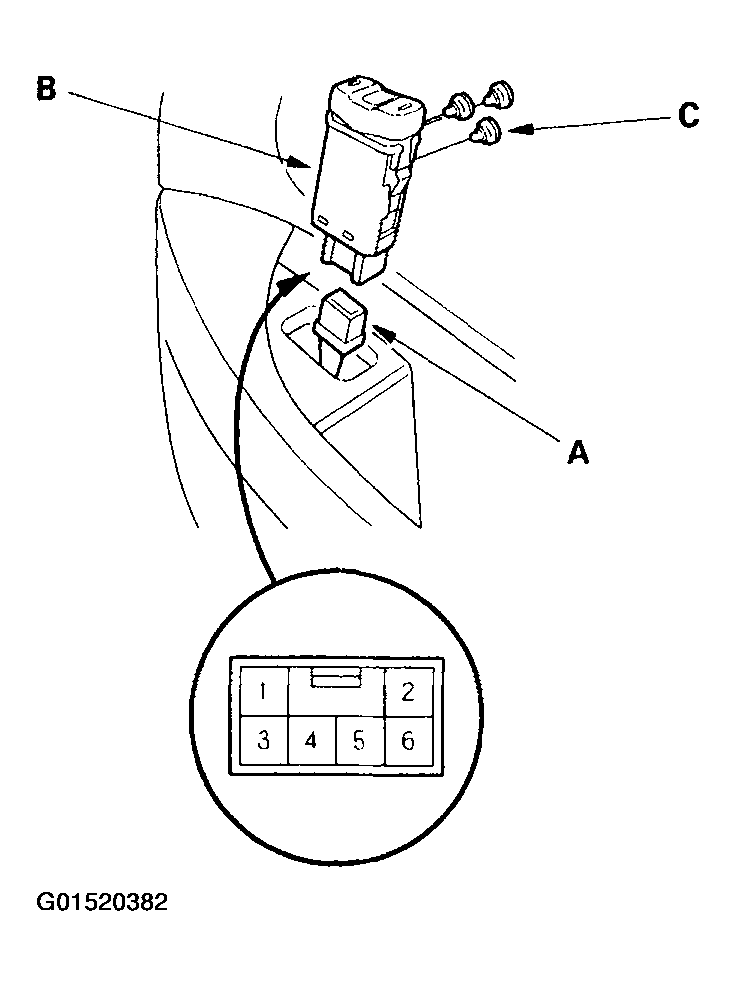

    Fig 1: Disconnecting 6P Connector From Seat Heater Switch
    G01520382Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminal in each switch position according to the table.

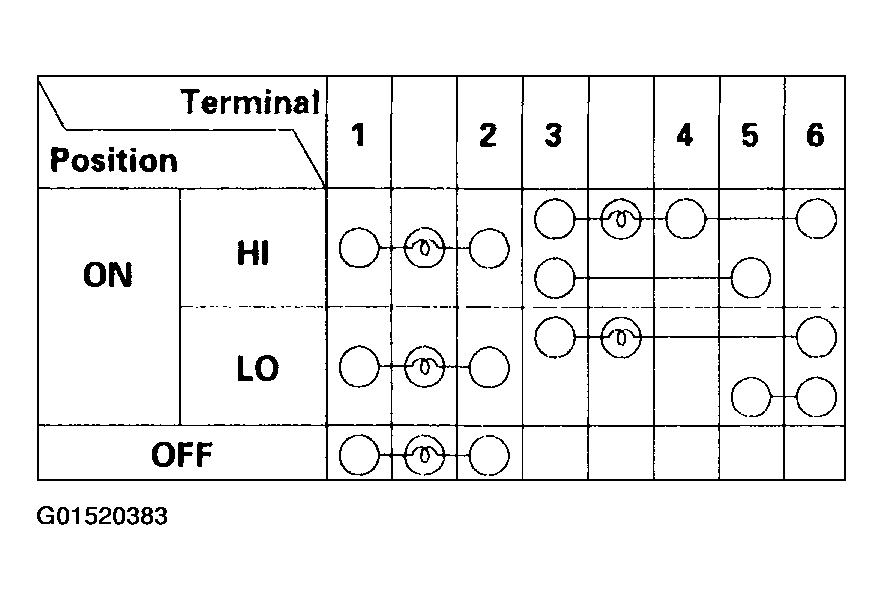

    Fig 2: Checking Continuity Between Terminal
    G01520383Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, replace the bulbs (C) or the switch.
