Hood Opener Cable Replacement

NOTE:

Remove the front inner fender (see FRONT INNER FENDER REPLACEMENT ).
If equipped, remove the clip (A), then remove the condenser upper seal (B). Disconnect the hood opener cable (C) from the hood latch (D) (see HOOD LATCH REPLACEMENT ), and remove the bolts (E), then remove the hood release handle (F) from the body.

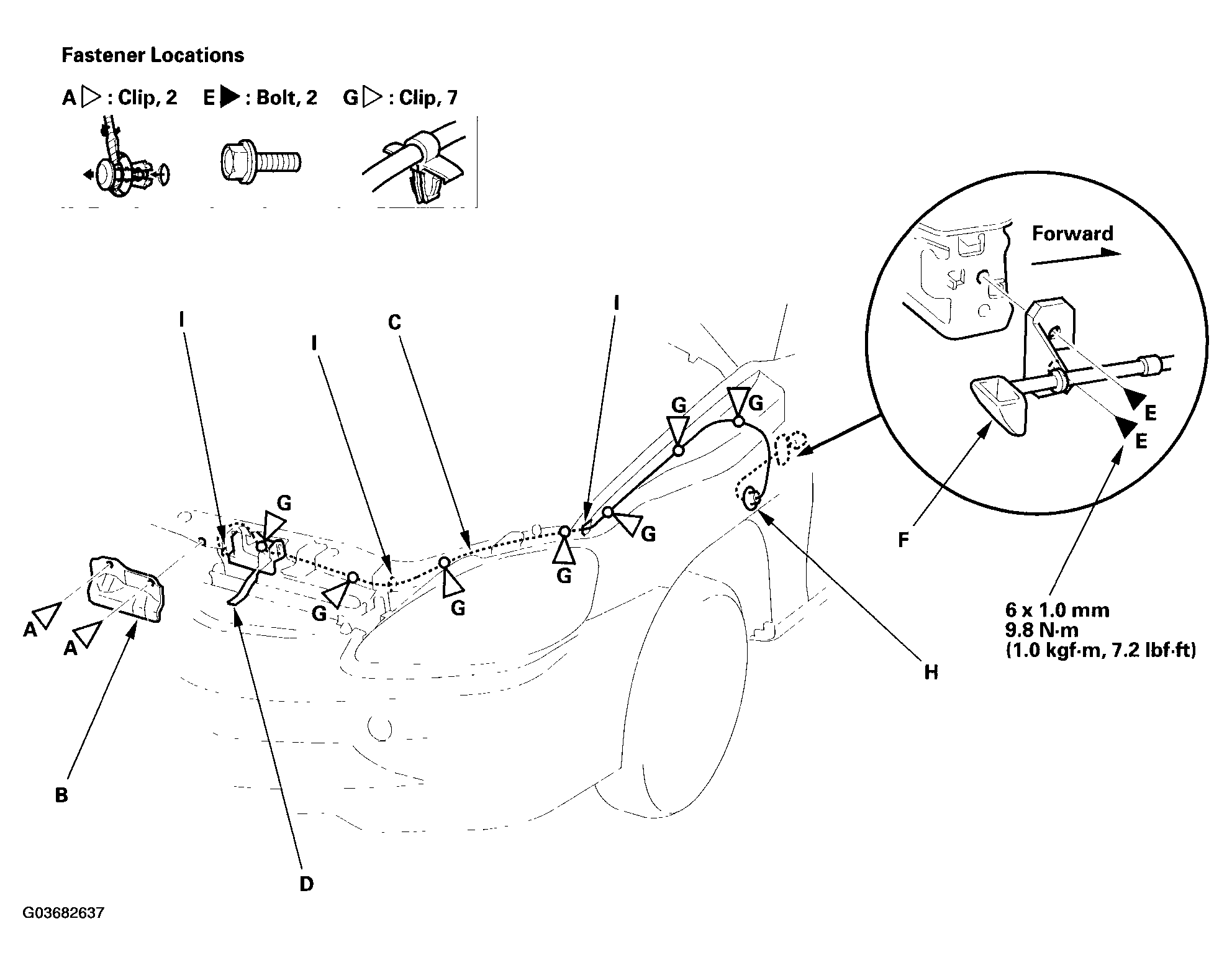

Fig 1: Removing Front Inner Fender And Torque Specfications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Using a clip remover, detach the clips (G) and remove the grommet (H) from the body, then remove the hood opener cable. Take care not to kink the cable.
Install the hood opener cable in the reverse order of removal, and note these items:
- Check for damaged or stress-whitened clips, and replace them with new ones.
- Route the cable through the holes (I) in the body.
