Front Inner Fender Replacement

NOTE: Take care not to scratch the body.
  1. Remove the front inner fender as shown.
  2. Install the front inner fender in the reverse order of removal, and check for damaged or stress-whitened clips, and replace them with new ones.

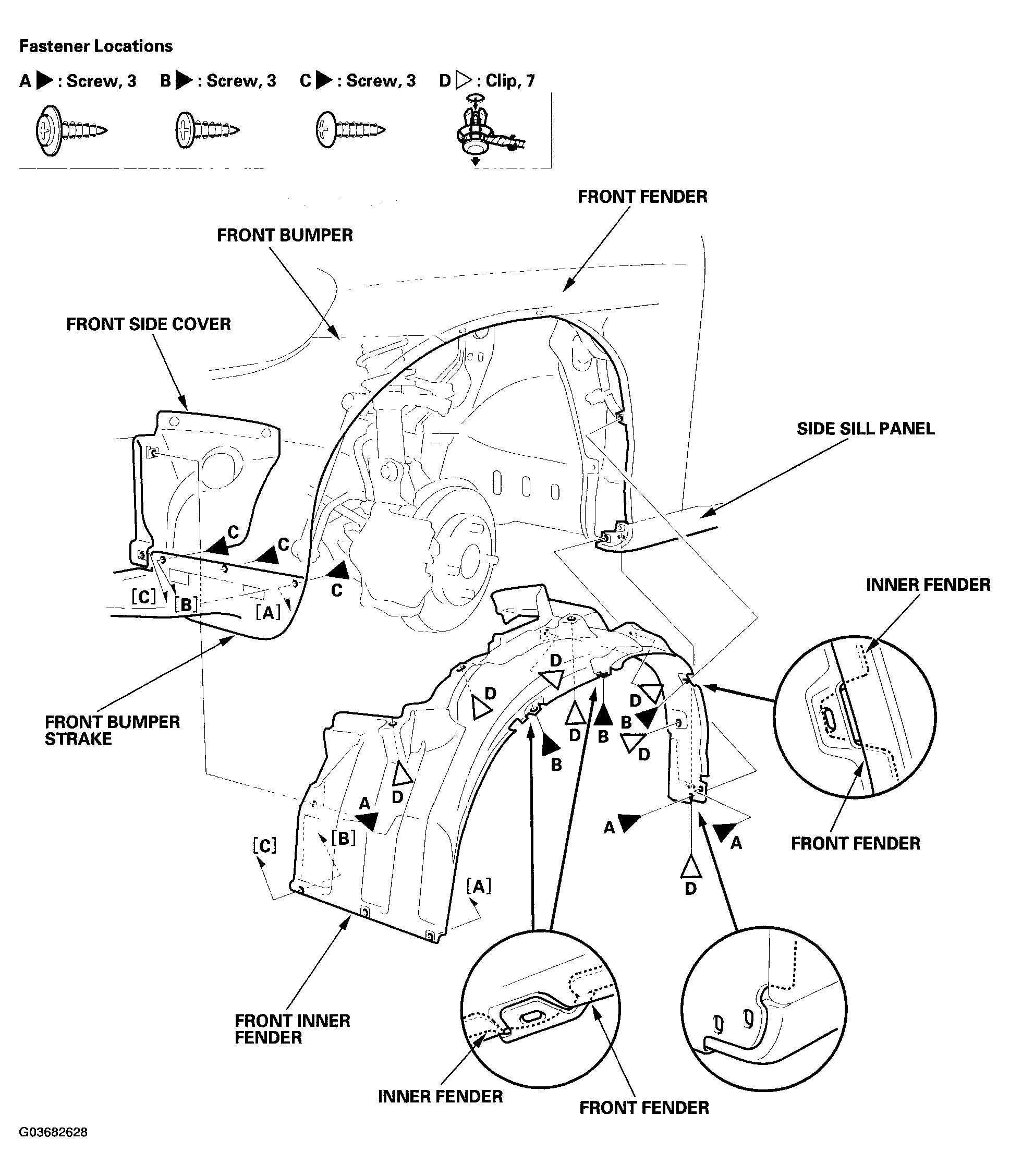

    Fig 1: Identifying Bumper Screws
    G03682628Courtesy of AMERICAN HONDA MOTOR CO., INC.
