Washer Tube Replacement

  1. Remove the right front inner fender (see FRONT INNER FENDER REPLACEMENT ).
  2. Remove the washer nozzles and clips, then remove the tubes.

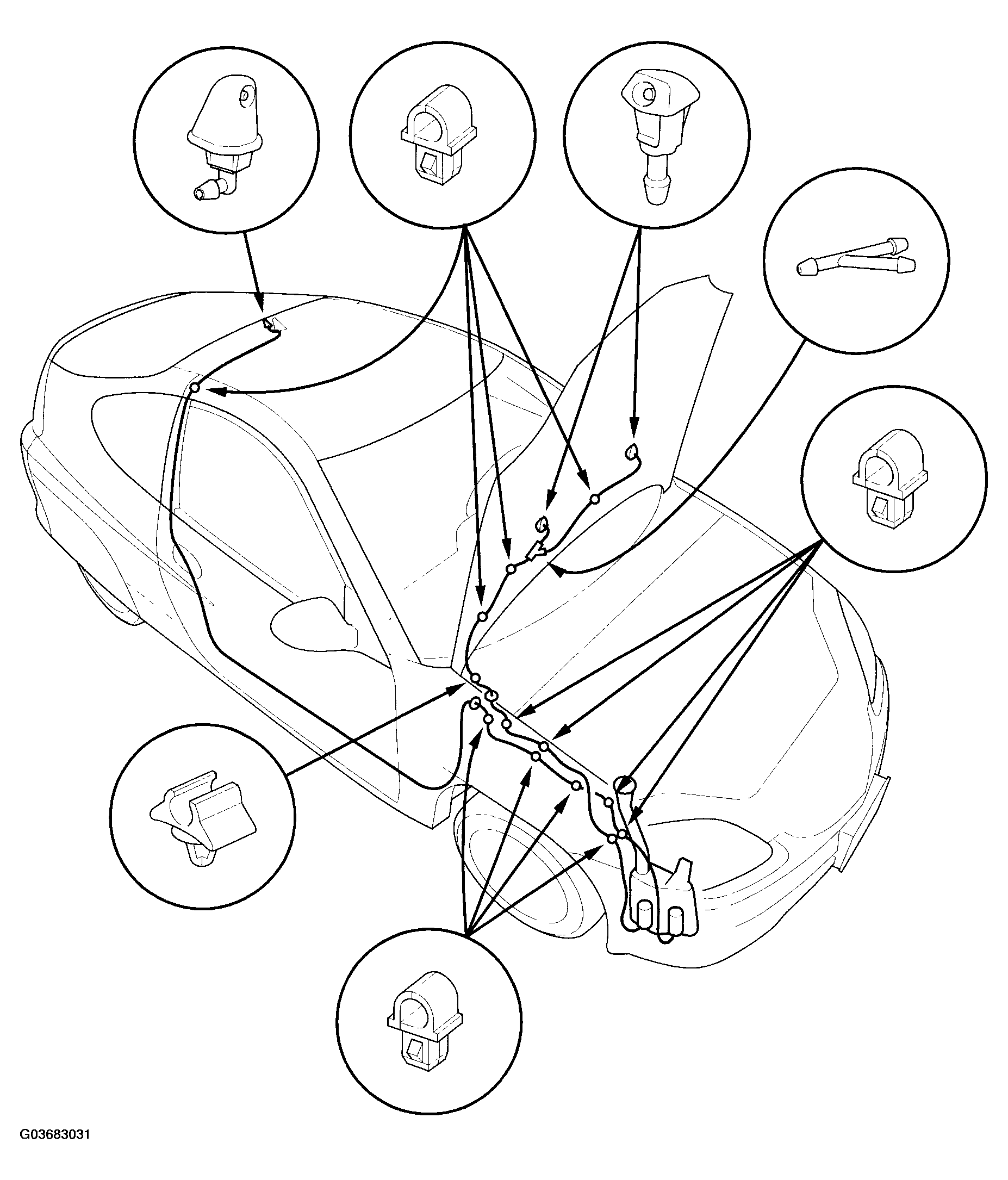

    Fig 1: Removing Washer Nozzles And Clips
    G03683031Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install in the reverse order of removal. Take care not to pinch the washer tubes. Check the washers operation.
