Removal & Installation

Disconnect 2-pin and 8-pin connectors from distributor. Disconnect spark plug wires and coil wire from distributor cap. Remove distributor hold-down bolts. Remove distributor from cylinder head. To install, coat NEW "O" ring with engine oil and put into place. To complete installation, reverse removal procedure. Set timing to specification. See ADJUSTMENTS article in the ENGINE PERFORMANCE Section.

NOTE: Lugs on distributor shaft and mating grooves in camshaft end are offset to eliminate possibility of installing distributor 180 degrees out of time.
NOTE: Manufacturer's overhaul instructions are not available. See Fig 1.

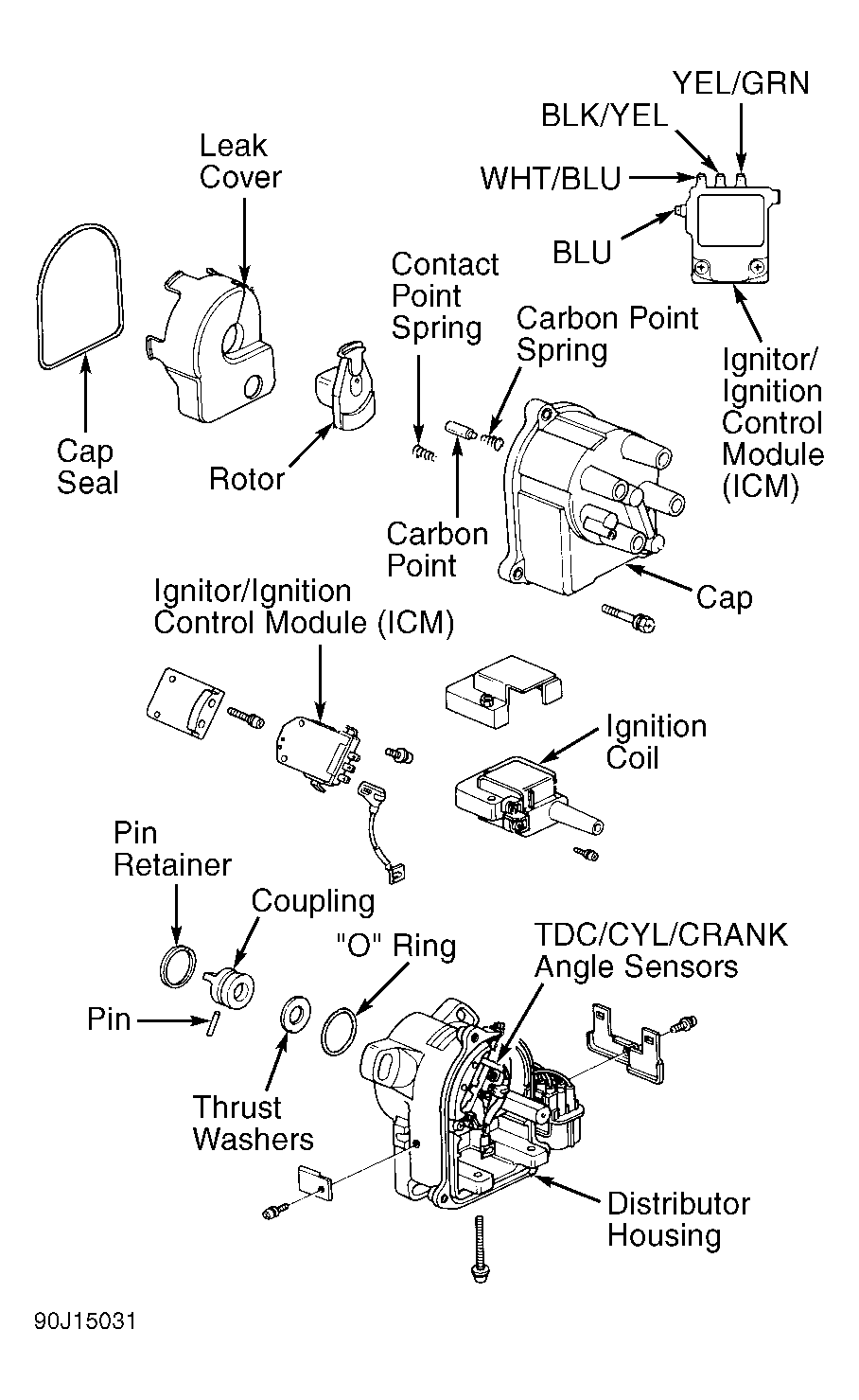

Fig 1: Exploded View Of Distributor With Internal Ignitor
G90J15031Courtesy of AMERICAN HONDA MOTOR CO., INC.
