Removal & Installation

Disconnect 2, 4, 6 or 8-pin connector from distributor. Disconnect spark plug wires and coil wire from distributor cap. Remove distributor hold-down bolts. Remove distributor from cylinder head. To install, coat new "O" ring with engine oil and put into place. To finish installation, reverse removal procedure. Set timing to specifications. See ADJUSTMENTS article in this section.

NOTE: Lugs on distributor shaft and mating grooves in camshaft end are offset to eliminate possibility of installing distributor 180 degrees out of time.

NOTE: Manufacturer's overhaul instructions are not available. See Fig 1 -Fig 3 .

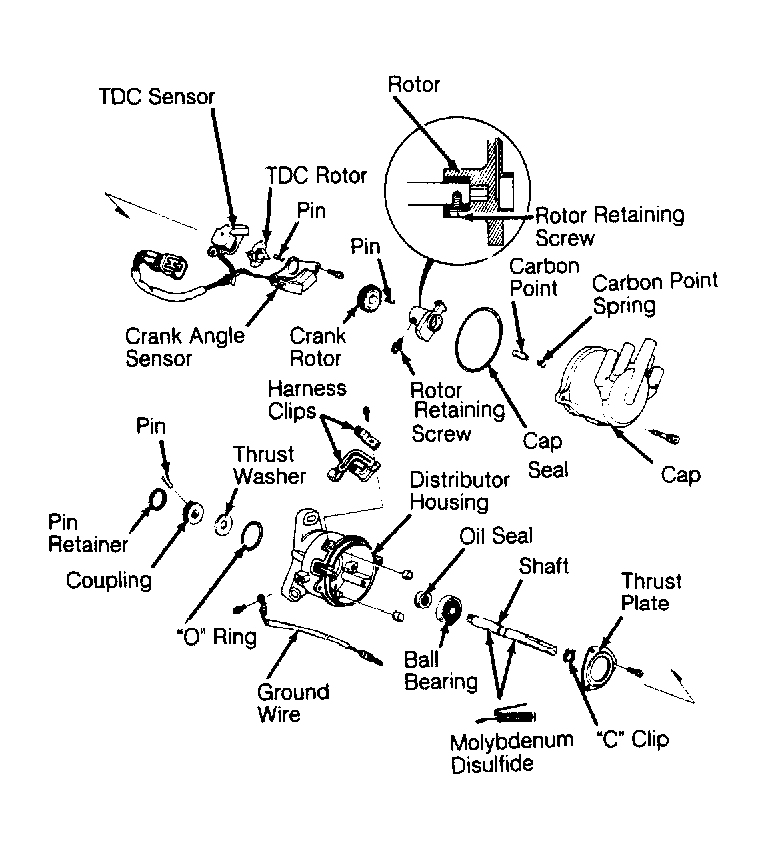

Fig 1: Exploded View of Distributor W/Internal Ignitor (Accord)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Exploded View of Distributor W/Internal Ignitor (Civic & CRX)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Exploded View of Distributor W/Remote Ignitor (Prelude)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
