Monitor DTC Status
WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
- Connect GDS to Data Link Connector (DLC).
- Ignition "ON".

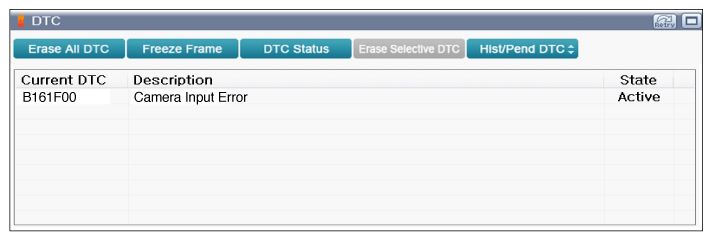

- Monitor "Diagnostic Trouble Codes (DTC)" with GDS.
- Is DTC status displayed as Present?
YES
- Go to "Monitor GDS Data " procedure.
NO
- Go to "Verification of Vehicle Repair " procedure.
