Monitor GDS Data
WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
- Ignition "OFF".
- Connect GDS to Data Link Connector (DLC).
- Ignition "ON" & Engine "ON".

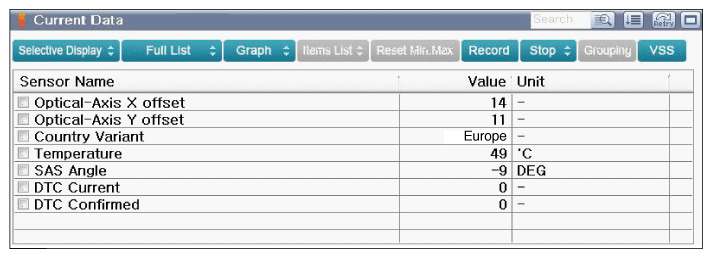

- Monitor parameters in "Current Data" with GDS.
Specification: B+
- Is the displayed parameter within specification?
YES
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "Verification of Vehicle Repair " procedure.
NO
- Go to "Wiring Inspection " procedure.
