Calibration Procedure

Perform wheel alignment and place the steering wheel in a line within ±5°error.

G12663600Courtesy of HYUNDAI MOTOR AMERICA
  1. Connect the GDS. (CAN line or OBD connector)
  2. Turn ignition switch on.
  3. Press calibration button of the Steering Wheel Angle Sensor.
  4. HECU calibration procedure is performed.

    (Calibration records, DTC codes erasure)

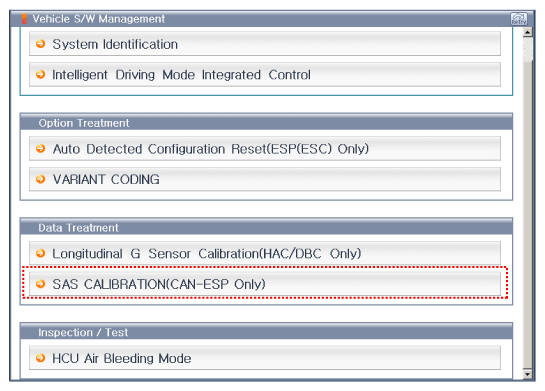

    G12663601Courtesy of HYUNDAI MOTOR AMERICA

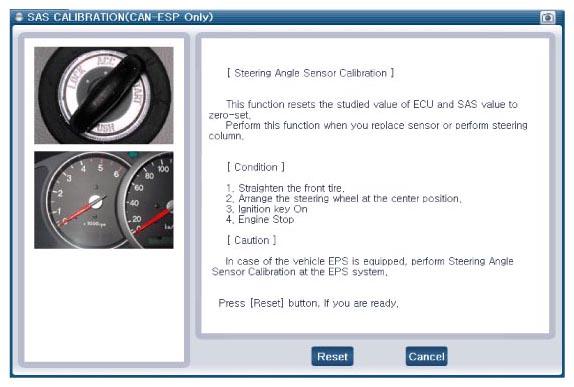

    G12663602Courtesy of HYUNDAI MOTOR AMERICA

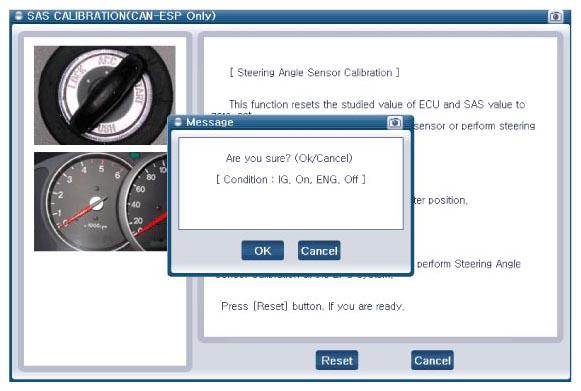

    G12663603Courtesy of HYUNDAI MOTOR AMERICA

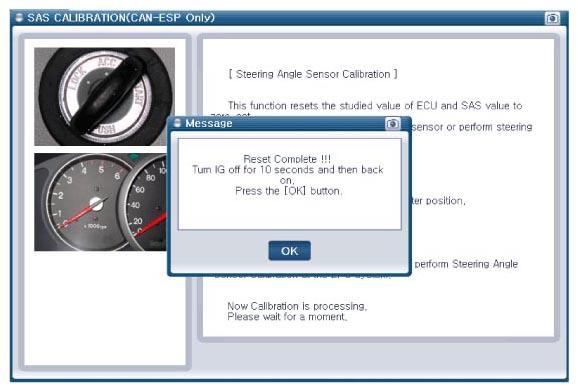

    G12663604Courtesy of HYUNDAI MOTOR AMERICA
