Installation Procedure

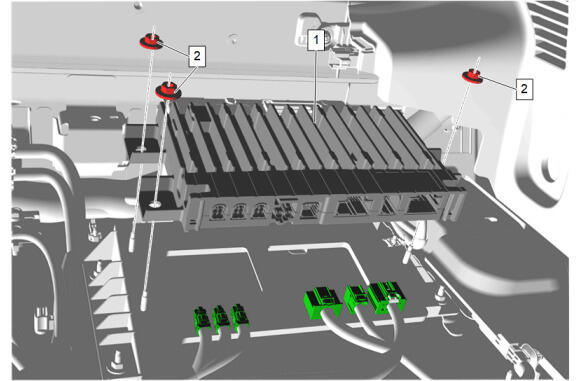

Image Processing Module (1) - Install
- Active Safety Control Module Bracket Nut (2) - Install and tighten - [3x] Fastener Specifications
- Connect the electrical connectors.
Cargo Container Mat- Front (1) - Install
Rear Auxiliary Stowage Box Rivet Nut (2) - Install and tighten - Fastener Specifications
- Cargo Partition Track Bolt (1) - Install and tighten [7x] - Fastener Specifications
Fold the left and right rear seat back cushions (1) down.
Cargo Container Mat - Left Rear (1) - Install
Cargo Partition Track Bolt (1) - Install and tighten [4x] - Fastener Specifications
Rear Seat Track Rear Outboard Cover - Left Side and Right Side (2) - Install [2x]
- Rear Seat Bolt - Left Side and Right Side (1) - Install and tighten [2x] - Fastener Specifications
Fold the left and right rear seat back cushions (1) up and into the locked position.
Fold the left and right rear seat cushions (1) up and into the locked position.
Rear Seat Recliner Outer Finish Cover - Right Side (2) - Install
- Rear Seat Bolt - Right Side (1) - Install and tighten [2x] - Fastener Specifications
Rear Seat Inner Hinge Finish Cover (2) - Install
- Rear Seat Bolt (1) - Install and tighten [3x] - Fastener Specifications
Rear Seat Recliner Outer Finish Cover - Left Side (2) - Install
- Rear Seat Bolt - Left Side (1) - Install and tighten [2x] - Fastener Specifications
- Perform the necessary programming and setup procedure:Control Module References
Refer to Fastener Caution .
