Fastener Specifications
NOTE:
Callout items in the following chart represent components shown in graphic above.

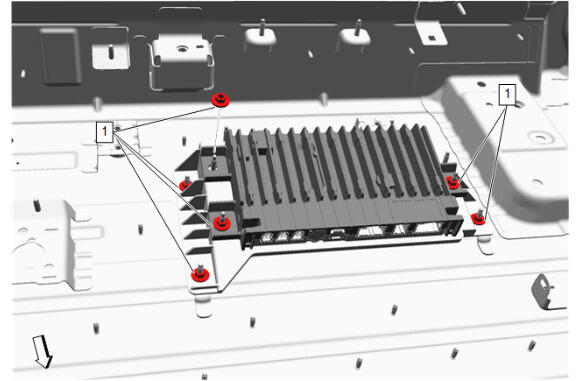

Active Safety Control Module Bracket & Image Processing Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Active Safety Control Module Bracket Nut [6x] | - | - | 7.5 N.m (66 lb in) | Active Safety Control Module Bracket Replacement |
| Image Processing Module Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

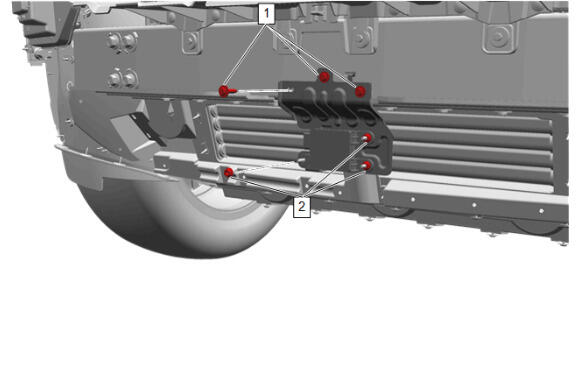

Forward Range Radar Sensor, Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Forward Range Radar Bracket Bolt [3x] | - | - | 9 N.m (80 lb in) | Forward Range Radar Bracket Replacement |
| 2 | Forward Range Radar Module/Sensor Nut [3x] | - | - | 9 N.m (80 lb in) | Forward Range Radar Sensor Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

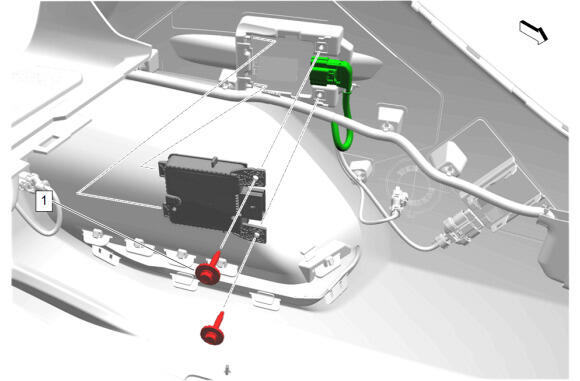

Short Range Radar Rear Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Short Range Radar Sensor Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Short Range Radar Rear Sensor Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

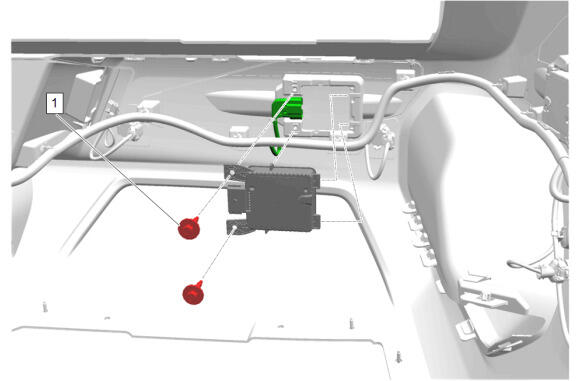

Short Range Radar Rear Side Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Short Range Radar Sensor Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Short Range Radar Rear Side Sensor Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

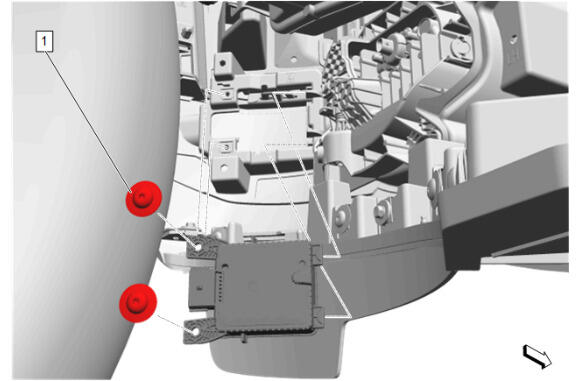

Short Range Radar Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Short Range Radar Sensor Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Short Range Radar Sensor Replacement |
