Installation Procedure

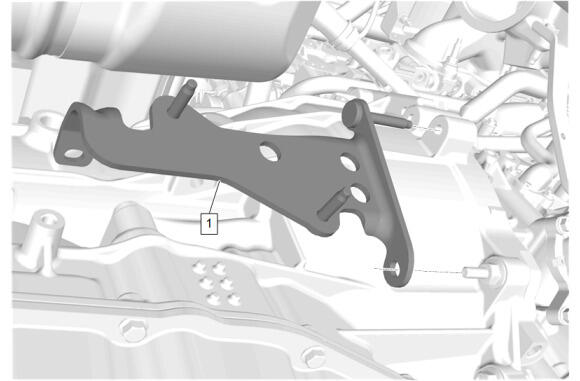

  1. GM6173633Courtesy of GENERAL MOTORS COMPANY

    Exhaust Front Bracket (1) - Install

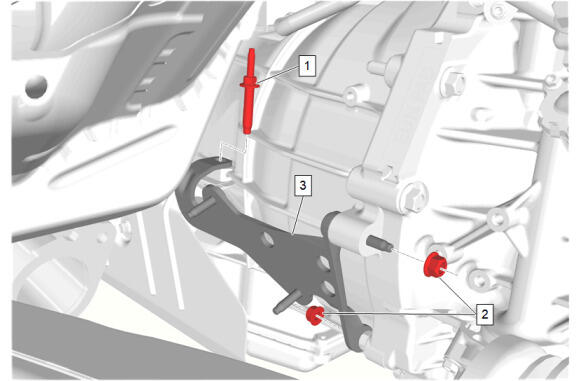

  2. GM6173598Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Catalytic Converter Brace Bracket Nut (2) - Install and tighten [2x] - Fastener Specifications

  3. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  4. Transmission Heat Shield Bolt (1) - Install and tighten - Fastener Specifications
  5. Install retainers as necessary.

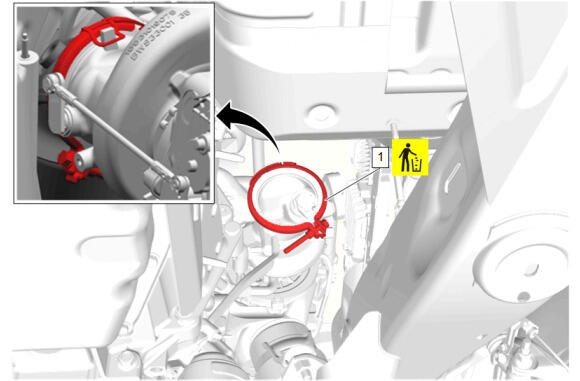

  6. GM6144261Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Ensure that the alignment tab on the catalytic converter clamp is aligned with the tang on the exhaust housing of the turbocharger. Failure to align the tab and clamp may cause interference with the wastegate linkage resulting in component damage and unnecessary replacement.

    Catalytic Converter Clamp (1) - Install NEW

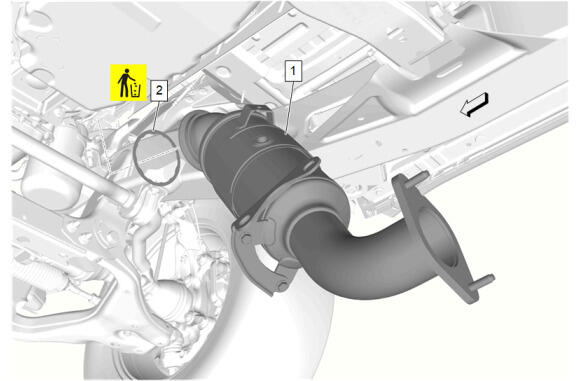

  7. GM6144253Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure that the catalytic converter gasket is fully seated on the warm up three-way catalytic converter inlet flange.

    Catalytic Converter Gasket (2) @ Compressor Air Intake Turbocharger - Install NEW

  8. Warm Up Three-Way Catalytic Converter (1) - Install

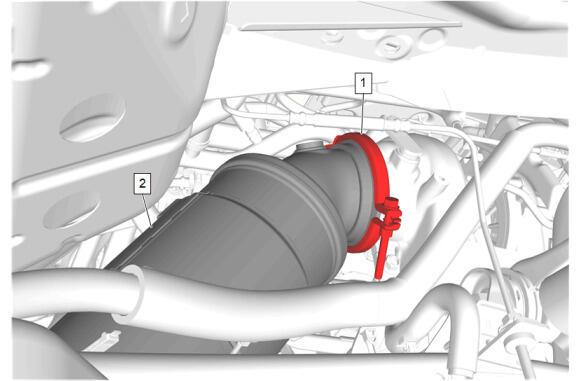

  9. GM6144061Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Inspect on all sides of the warm up three-way catalytic converter to verify it is fully seated prior to tightening the catalytic converter clamp.

    Catalytic Converter Clamp (1) - Tighten - Fastener Specifications

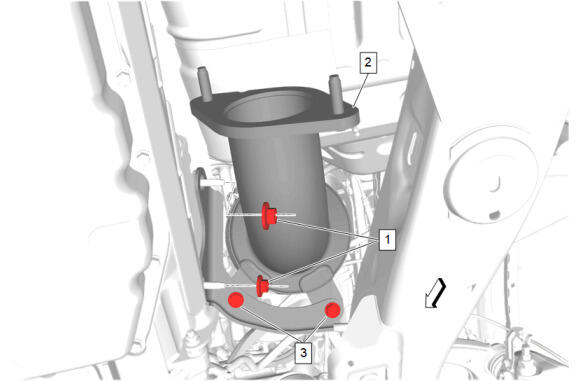

  10. GM6144078Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Brace Bracket Nut (1) - Install and tighten [2x] - Fastener Specifications

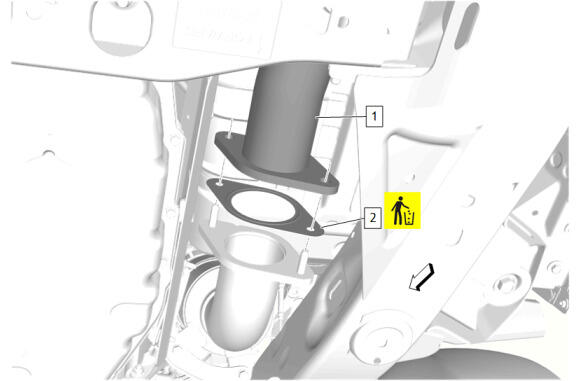

  11. GM6144239Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Gasket (2) @ Exhaust Muffler - Install NEW

  12. Exhaust Muffler (1) @ Warm Up Three-Way Catalytic Converter - Install

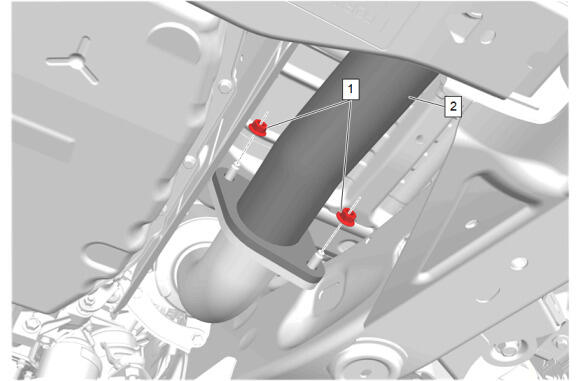

  13. GM6143131Courtesy of GENERAL MOTORS COMPANY

    Exhaust Front Pipe Nut (1) - Install and tighten [2x] - Fastener Specifications

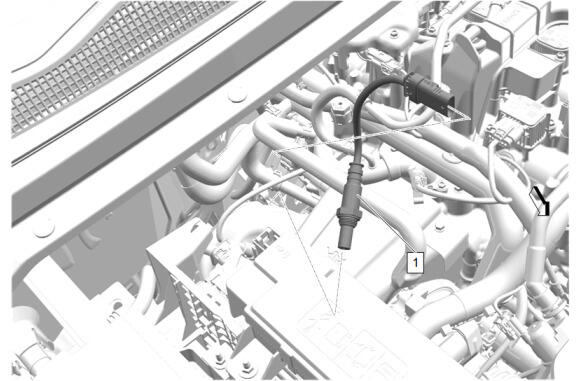

  14. GM6136556Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    A special anti-seize compound is used in the HO2S threads. The compound consists of liquid graphite and glass beads. The graphite tends to burn away, but the glass beads remain, making the sensor easier to remove. New, or service replacement sensors already have the compound applied to the threads. If the sensor is removed from an exhaust component and if for any reason the sensor is to be reinstalled, the threads must have anti-seize compound applied before reinstallation. Adhesives, Fluids, Lubricants, and Sealers

    Heated Oxygen Sensor (1) - Install and tighten - Fastener Specifications

  15. Connect the electrical connector.

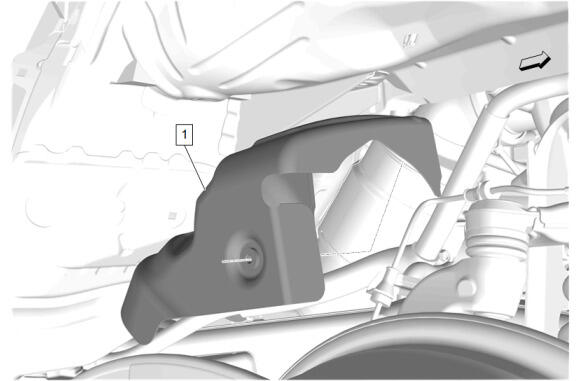

  16. GM6143443Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Heat Shield (1) - Install

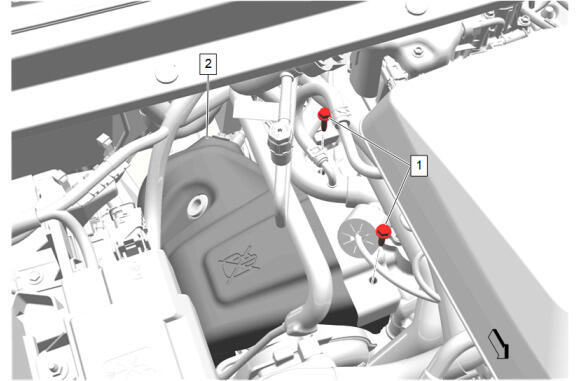

  17. GM6143382Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Heat Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications

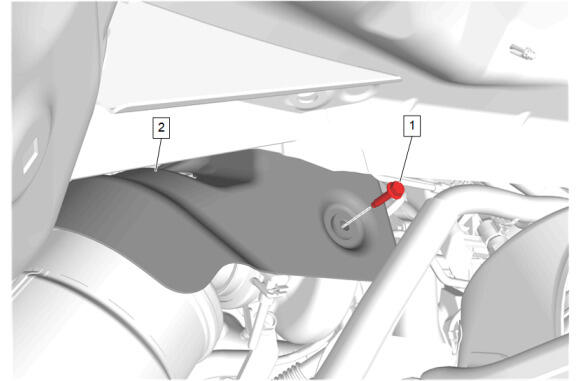

  18. GM6143389Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Heat Shield Bolt (1) - Install and tighten - Fastener Specifications

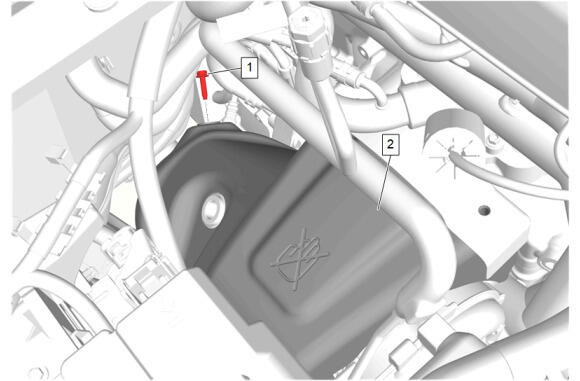

  19. GM6143442Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Heat Shield Bolt (1) - Install and tighten - Fastener Specifications

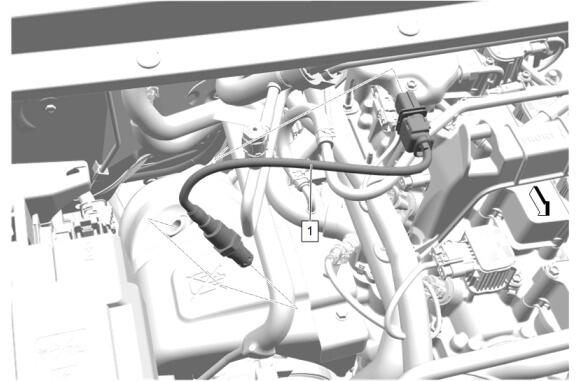

  20. GM6136544Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    A special anti-seize compound is used in the HO2S threads. The compound consists of liquid graphite and glass beads. The graphite tends to burn away, but the glass beads remain, making the sensor easier to remove. New, or service replacement sensors already have the compound applied to the threads. If the sensor is removed from an exhaust component and if for any reason the sensor is to be reinstalled, the threads must have anti-seize compound applied before reinstallation. Adhesives, Fluids, Lubricants, and Sealers

    Heated Oxygen Sensor (1) - Install and tighten - Fastener Specifications

  21. Connect the electrical connector.
  22. Engine Control Module Bracket - Install - Engine Control Module Bracket Replacement
