Fastener Specifications

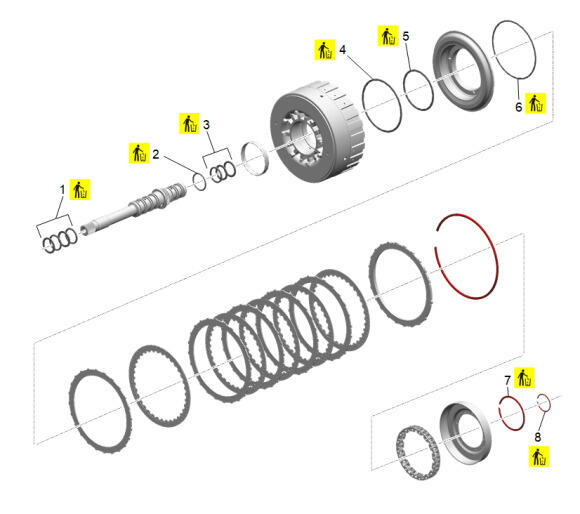

Fig 1: Exploded View Of 1-3-5-6-7 Clutch Housing Assembly Components And Fasteners
GM6162047Courtesy of GENERAL MOTORS COMPANY
1-3-5-6-7 Clutch Housing Assembly

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Turbine Shaft Fluid Seal Ring-Large [4x] Yes - - 1-3-5-6-7 Clutch Assemble
2 Turbine Shaft Seal Yes - - 1-3-5-6-7 Clutch Assemble
3 Turbine Shaft Fluid Seal Ring-Small [3x] Yes - - 1-3-5-6-7 Clutch Assemble
4 1-3-5-6-7 Clutch Piston Seal - Outer Yes - - 1-3-5-6-7 Clutch Assemble
5 1-3-5-6-7 Clutch Piston Seal - Inner Yes - - 1-3-5-6-7 Clutch Assemble
6 1-3-5-6-7 Clutch Piston Dam Seal Yes - - 1-3-5-6-7 Clutch Assemble
7 1-3-5-6-7 Clutch Piston Dam Retaining Ring Yes - - 1-3-5-6-7 Clutch Assemble
8 Turbine Shaft Retaining Ring Yes - - 1-3-5-6-7 Clutch Assemble

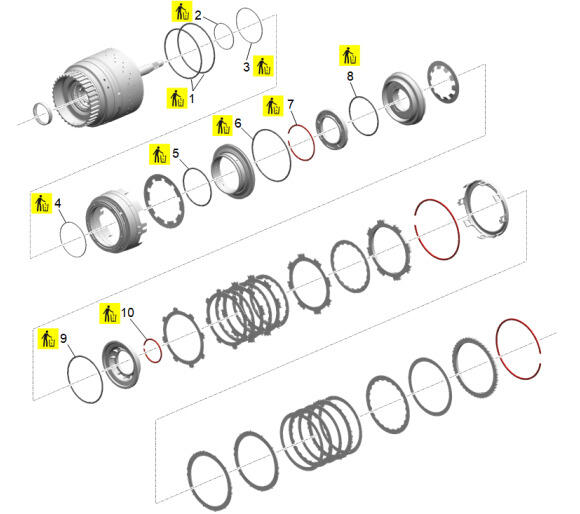

Fig 2: Exploded View Of 2-3-4-6-8 And 4-5-6-7-8 Reverse Clutch Assembly Components And Fasteners
GM6162050Courtesy of GENERAL MOTORS COMPANY
2-3-4-6-8 and 4-5-6-7-8 Reverse Clutch Assembly

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 2-3-4-6-8 Clutch Piston Dam Seal [2x] Yes - - 2-3-4-6-8 and 4-5-6-7-8 Reverse Clutch Assemble
2 4-5-6-7-8-Reverse Clutch Piston Seal Yes - - 2-3-4-6-8 and 4-5-6-7-8 Reverse Clutch Assemble
3 4-5-6-7-8-Reverse Clutch Piston Stop Seal Yes - - 2-3-4-6-8 and 4-5-6-7-8 Reverse Clutch Assemble
4 2-3-4-6-8 Clutch Piston Seal Yes - - 2-3-4-6-8 and 4-5-6-7-8 Reverse Clutch Assemble
5 2-3-4-6-8 Clutch Piston Dam Seal - Inner Yes - - 2-3-4-6-8 and 4-5-6-7-8 Reverse Clutch Assemble
6 2-3-4-6-8 Clutch Piston Dam Seal - Outer Yes - - 2-3-4-6-8 and 4-5-6-7-8 Reverse Clutch Assemble
7 2-3-4-6-8 Clutch Piston Dam Retaining Ring Yes - - 2-3-4-6-8 and 4-5-6-7-8 Reverse Clutch Assemble
8 4-5-6-7-8-Reverse Clutch Piston Seal - Inner Yes - - 2-3-4-6-8 and 4-5-6-7-8 Reverse Clutch Assemble
9 4-5-6-7-8-Reverse Clutch Piston Seal - Outer Yes - - 2-3-4-6-8 and 4-5-6-7-8 Reverse Clutch Assemble
10 4-5-6-7-8-Reverse Clutch Piston Dam Retaining Ring Yes - - 2-3-4-6-8 and 4-5-6-7-8 Reverse Clutch Assemble
GM6215691Courtesy of GENERAL MOTORS COMPANY

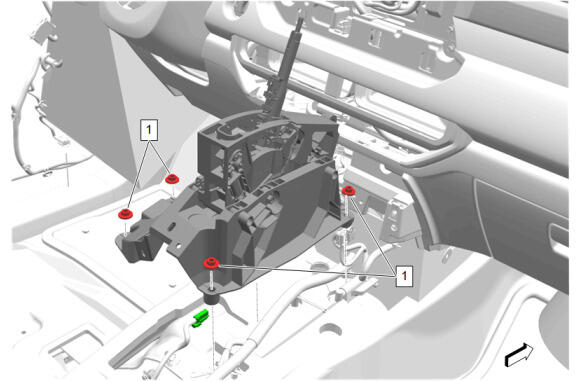

Automatic Transmission Control Bracket Nut

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Control Bracket Nut [4x] - - 9 N.m (80 lb in) Transmission Control Replacement (Without Base) , or Transmission Control Replacement (with Base)
GM6215683Courtesy of GENERAL MOTORS COMPANY

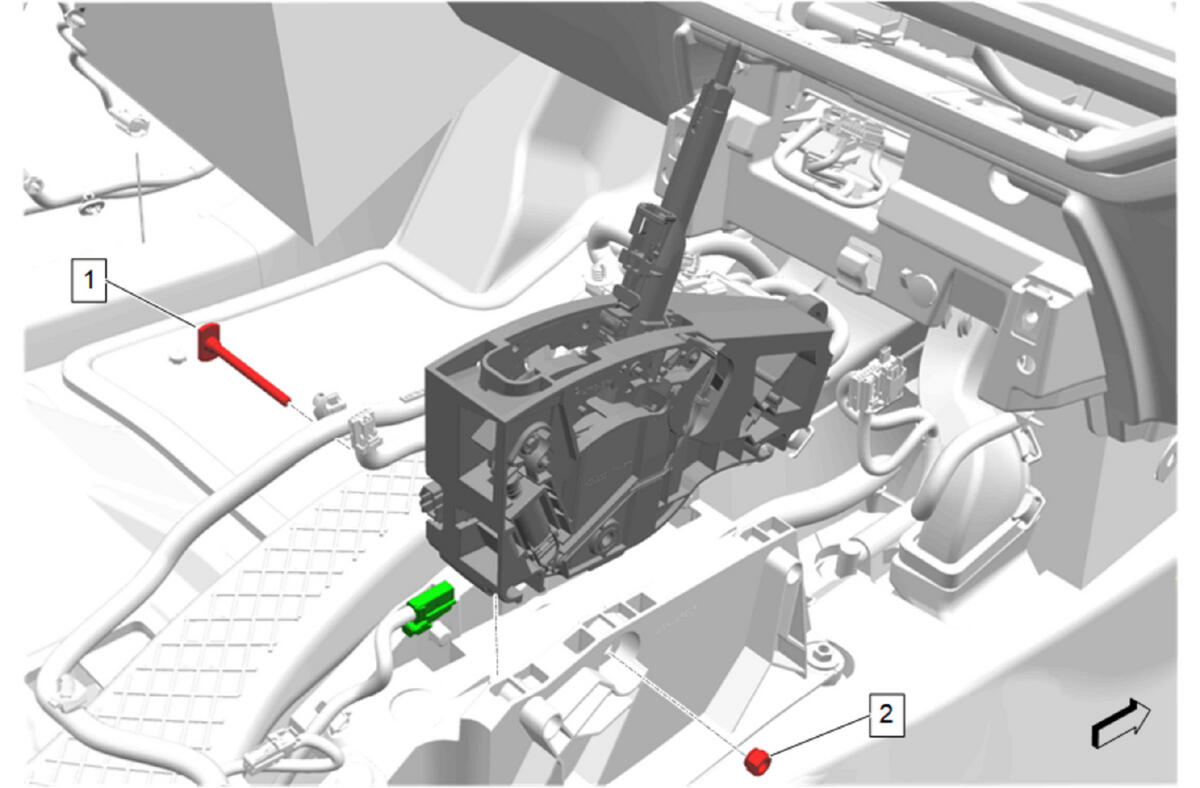

Automatic Transmission Control Nut

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Control Indicator Bolt - - - Transmission Control Replacement (Without Base) , or Transmission Control Replacement (with Base)
2 Automatic Transmission Control Nut - - 9 N.m (80 lb in) Transmission Control Replacement (Without Base) , or Transmission Control Replacement (with Base)
GM6197823Courtesy of GENERAL MOTORS COMPANY

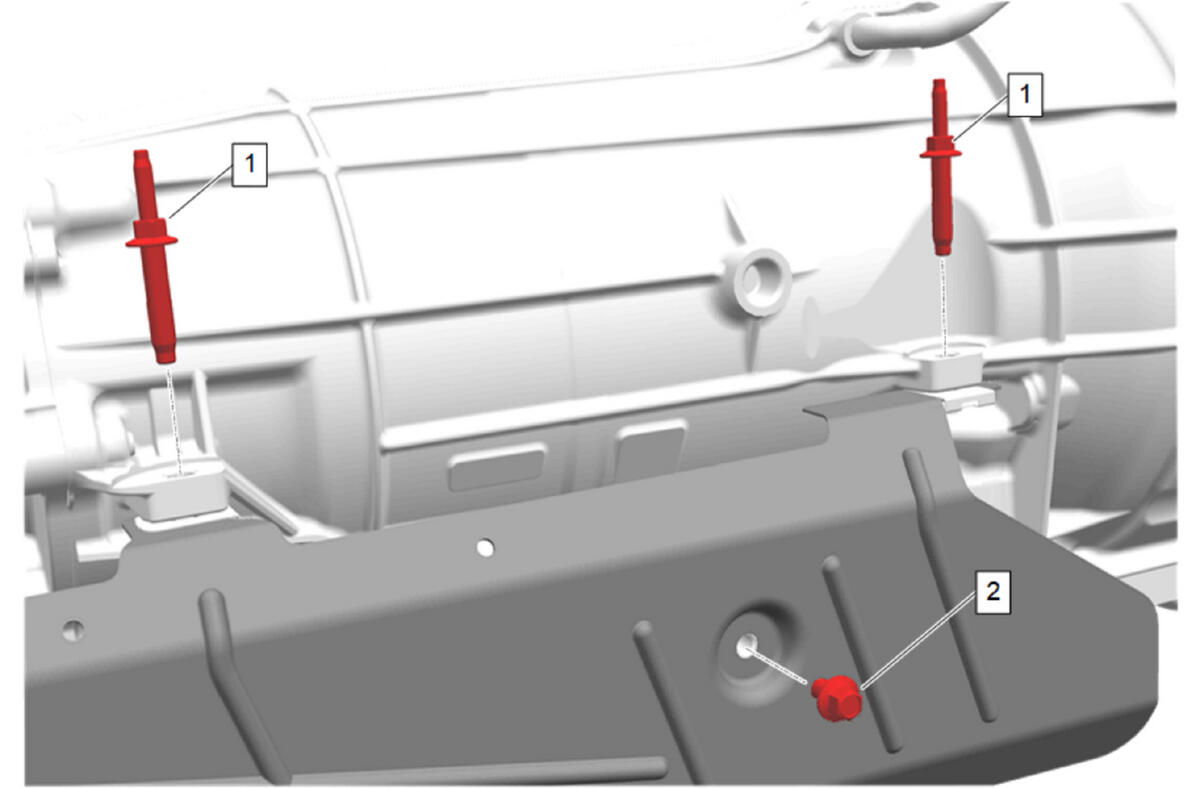

Automatic Transmission Heat Shield

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Heat Shield Bolt [2x] - Yes 17 N.m (13 lb ft) Transmission Heat Shield Replacement
2 Transmission Heat Shield Bolt - - 17 N.m (13 lb ft) Transmission Heat Shield Replacement
GM5721571Courtesy of GENERAL MOTORS COMPANY

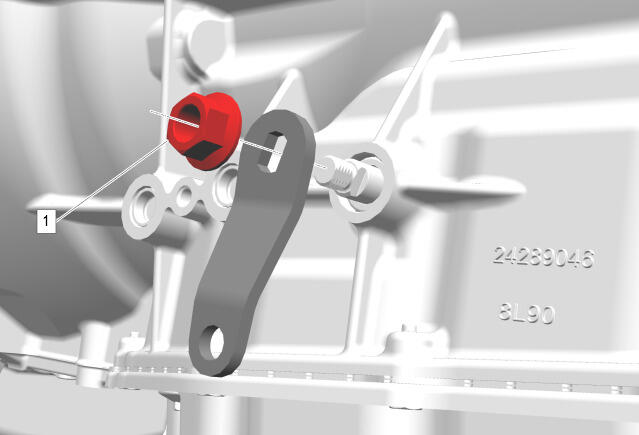

Automatic Transmission Range Selector Lever

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Range Selector Lever Nut - - 30 N.m (22 lb ft) Automatic Transmission Range Selector Lever Cable Bracket Replacement
GM6215651Courtesy of GENERAL MOTORS COMPANY
Automatic Transmission Range Selector Lever Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)

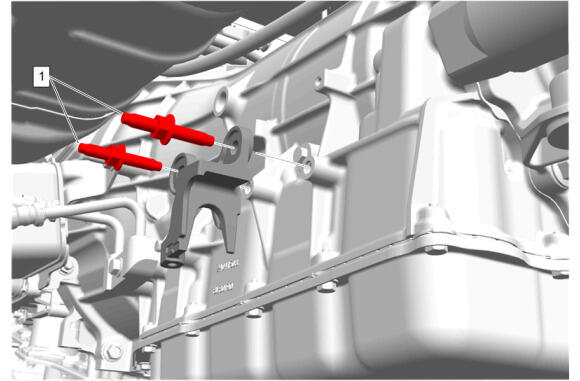

1 Automatic Transmission Range Selector Lever Cable Bracket Stud [2x] - - 22 N.m (16 lb ft) Automatic Transmission Range Selector Lever Cable Bracket Replacement
GM6215653Courtesy of GENERAL MOTORS COMPANY

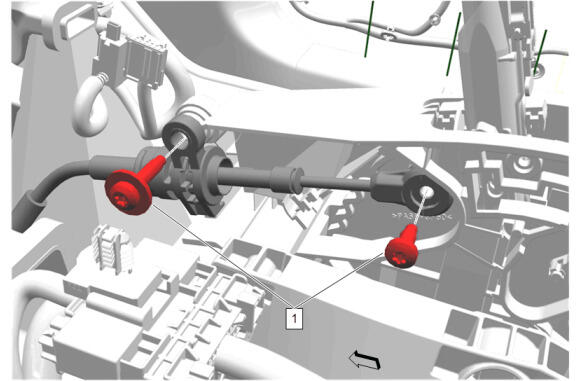

Automatic Transmission Range Selector Lever Cable

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Range Selector Lever Cable to Automatic Transmission Control Bolt [2x] - - 9 N.m (80 lb in) Automatic Transmission Range Selector Lever Cable Replacement
GM6215679Courtesy of GENERAL MOTORS COMPANY

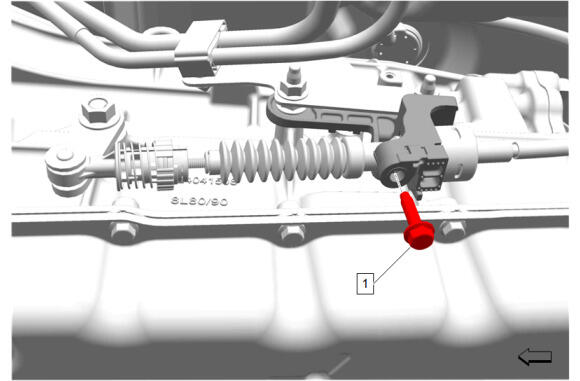

Automatic Transmission Range Selector Lever Cable Bolt

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Range Selector Lever Cable Bolt - - 9 N.m (80 lb in) Automatic Transmission Range Selector Lever Cable Replacement

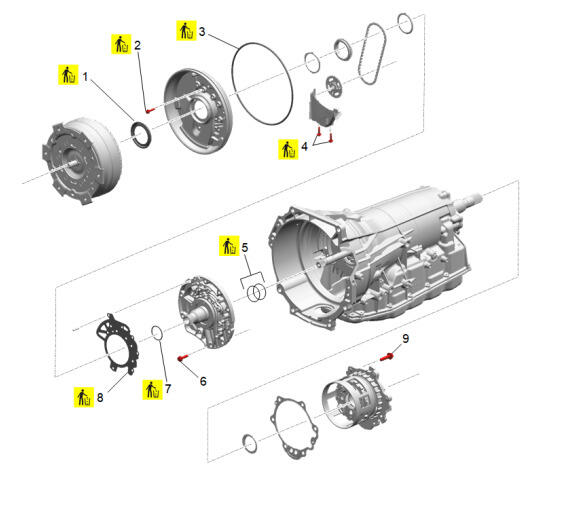

Fig 3: Exploded View Of Case And Associated Part Components With Fasteners (1 Of 2)
GM6162058Courtesy of GENERAL MOTORS COMPANY
Case and Associated Parts 1 of 2

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Torque Converter Fluid Seal Yes - - Torque Converter Fluid Seal Installation
2 Automatic Transmission Case Front Cover Bolt - M6 x 30 [11x] Yes - Automatic Transmission Case Front Cover Bolt Sequence  Transmission Case Front Cover and Drive Link Installation
3 Automatic Transmission Case Front Cover Seal Yes - - Transmission Case Front Cover and Drive Link Installation
4 Automatic Transmission Fluid Baffle Bolt - M6 x 25 [2x] Yes -
  • First Pass: 4 N.m (35 lb in)
  • Final Pass: 45 degrees
 Control Valve Assembly and Transmission Wiring Harness Installation
5 1-3-5-6-7 Clutch Fluid Seal Ring [2x] Yes - - Stator Shaft Support Assemble
6 Stator Shaft Support Bolt - M8 x 33 [9x] - - Stator Shaft Support Bolt Sequence  Stator Shaft Support Installation
7 Torque Converter Fluid Seal Yes - - Stator Shaft Support Assemble
8 Automatic Transmission Front Support Cover Gasket Yes - - Transmission Case Front Cover and Drive Link Installation
9 Automatic Transmission Case Extension Bolt - M10 x 40 [6x] - - Automatic Transmission Case Extension Bolt Sequence  Case Extension Assembly Installation

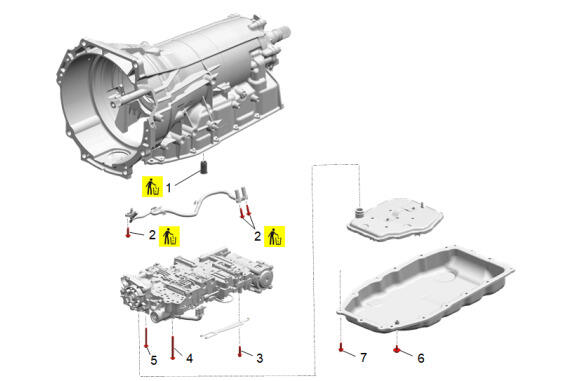

Fig 4: Exploded View Of Case And Associated Part Components With Fasteners (2 Of 2)
GM6162059Courtesy of GENERAL MOTORS COMPANY
Case and Associated Parts 2 of 2

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Clutch Housing Fluid Passage Seal Yes - - Control Valve Assembly and Transmission Wiring Harness Installation
2 Automatic Transmission Case Front Cover Bolt - M6 x 30 [3x] Yes - 6.5 N.m (80 lb in) Input and Output Speed Sensor Replacement
3 Manual Shift Detent Lever Spring Bolt - - 12 N.m (57 lb in) Control Valve Assembly and Transmission Wiring Harness Installation
4 Control Valve Solenoid Body Bolt - M6 x 68 [7x] - - Control Valve Body Bolt Sequence  Control Valve Assembly and Transmission Wiring Harness Installation
5 Control Valve Solenoid Body Bolt - M6 x 45 [4x] - - Control Valve Body Bolt Sequence  Control Valve Assembly and Transmission Wiring Harness Installation
6 Transmission Oil Level Check Plug - - 9 N.m (80 lb in) Transmission Fluid Level and Condition Check
7 Automatic Transmission Fluid Pan Bolt - M6 x 20 [15x] - - Automatic Transmission Fluid Pan Bolt Sequence  Transmission Fluid Pan and Filter Assembly Installation

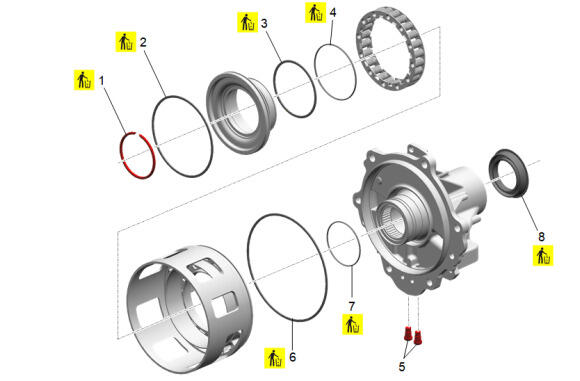

Fig 5: Exploded View Of Case Extension Assembly Components And Fasteners
GM6162055Courtesy of GENERAL MOTORS COMPANY
Case Extension Assembly

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 1-2-3-4-5-Reverse Clutch Piston Dam Retaining Ring Yes - - Case Extension Assemble (RWL) , or Case Extension Assemble (F46)
2 1-2-3-4-5-Reverse Clutch Piston Dam Seal Yes - - Case Extension Assemble (RWL) , or Case Extension Assemble (F46)
3 1-2-3-4-5-Reverse Clutch Piston Dam Inner Seal Yes - - Case Extension Assemble (RWL) , or Case Extension Assemble (F46)
4 1-2-3-4-5-Reverse Clutch Piston Seal Yes - - Case Extension Assemble (RWL) , or Case Extension Assemble (F46)
5 Automatic Transmission Case Extension Hole Plug [2x] - - 11 N.m (97 lb in) Case Extension Assemble (RWL) , or Case Extension Assemble (F46)
6 1-2-3-4-5-Reverse Clutch Piston Outer Seal Yes - - Case Extension Assemble (RWL) , or Case Extension Assemble (F46)
7 1-2-3-4-5-Reverse Clutch Piston Dam Inner Seal Yes - - Case Extension Assemble (RWL) , or Case Extension Assemble (F46)
8 Propeller Shaft Transmission Flange Fluid Seal Yes - - Propeller Shaft Transmission Flange Fluid Seal Installation

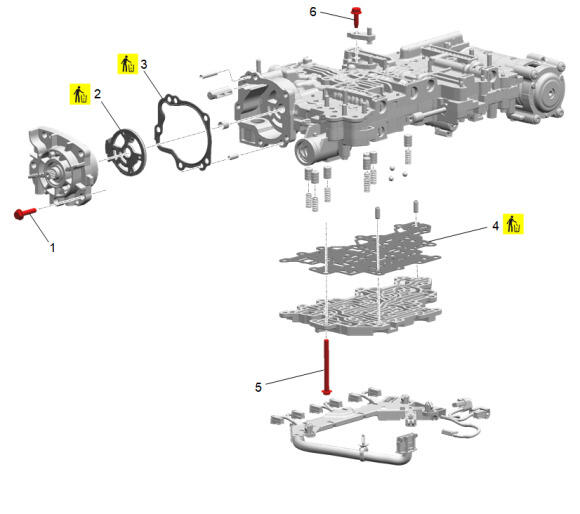

Fig 6: Exploded View Of Control Valve Assembly Components And Fasteners (1 Of 2)
GM6162065Courtesy of GENERAL MOTORS COMPANY
Control Valve Assembly 1 of 2

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Fluid Pump Bolt - M6 x 28 [5x] - - Automatic Transmission Fluid Pump Bolt Sequence  Control Valve Body Assembly Assemble
2 Automatic Transmission Fluid Pump Seal - Inner Yes - - Control Valve Body Assembly Assemble
3 Automatic Transmission Fluid Pump Seal - Outer Yes - - Control Valve Body Assembly Assemble
4 Control Valve Channel Plate Spacer Plate Yes - - Control Valve Body Assembly Assemble
5 Control Valve Channel Plate Bolt - M5 x 55 [19x] - - Control Valve Solenoid Body Bolt Sequence  Control Valve Body Assembly Assemble
6 Automatic Transmission Wiring Harness Bracket Bolt - M6 x 20 - - 9 N.m (80 lb in) Control Valve Upper Body Assembly Cleaning and Inspection

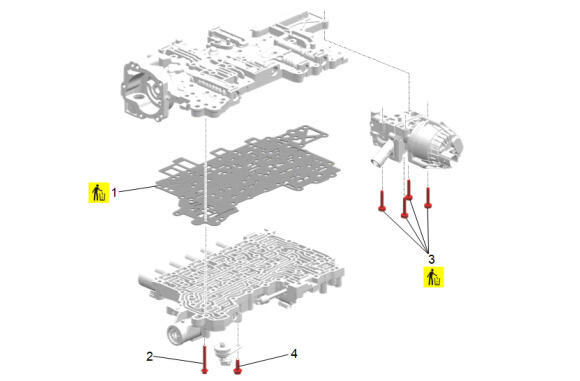

Fig 7: Exploded View Of Control Valve Assembly Components And Fasteners (2 Of 2)
GM6162067Courtesy of GENERAL MOTORS COMPANY
Control Valve Assembly 2 of 2

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Control Valve Body Spacer Plate Yes - - Control Valve Body Assembly Assemble
2 Valve Body Bolt - M5 x 45 [9x] - - Control Valve Solenoid Body Bolt Sequence  Control Valve Body Assembly Assemble
3 {If equipped} Automatic Transmission Auxiliary Fluid Accumulator Bolt - M5 x 29.75 [4x] - - 8 N.m (71 lb in) Automatic Transmission Fluid Pump Removal
4 Control Valve Body Bolt - M6 x 20 - - 9 N.m (80 lb in) Automatic Transmission Fluid Pressure Sensor Replacement
GM6162069Courtesy of GENERAL MOTORS COMPANY

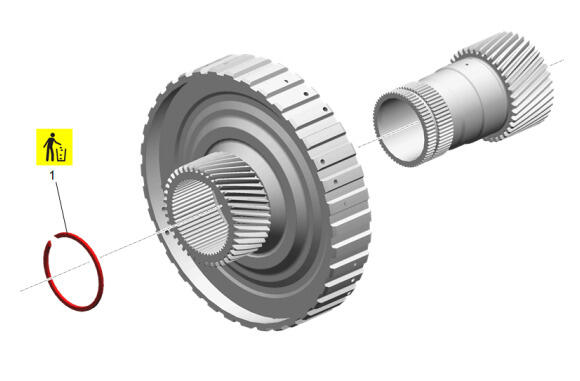

Input Sun Gear Assembly

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Input Sun Gear Retaining Ring Yes - - Input Sun Gear Overhaul

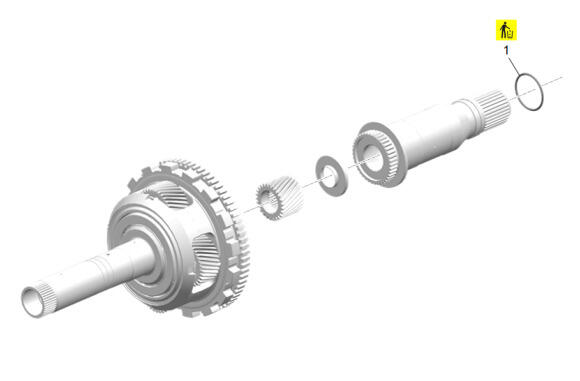

GM6162062Courtesy of GENERAL MOTORS COMPANY
Output Shaft Assembly

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Output Shaft Seal Yes - - Reaction Carrier Assembly, Output Carrier, and Output Shaft Installation (RWL) , or Reaction Carrier Assembly, Output Carrier, and Output Shaft Installation (F46)
GM6162073Courtesy of GENERAL MOTORS COMPANY

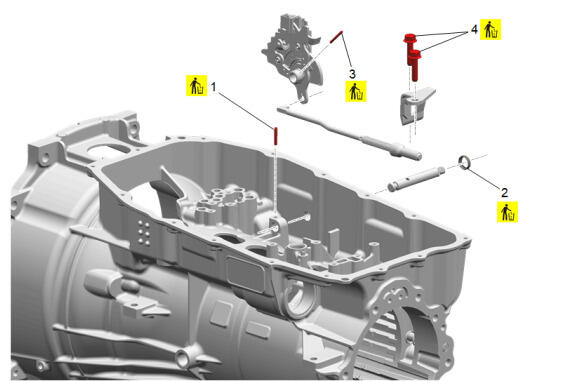

Park System Components

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Manual Shift Shaft Pin Yes - - Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation
2 Manual Shift Shaft Seal Yes - - Manual Shift Shaft Seal Installation
3 Manual Shift Detent Lever Hub Pin Yes - - Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation
4 Parking Pawl Actuator Bracket Bolt - M8 x 33 [2x] Yes - 31 N.m (23 lb ft) Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation
GM5342773Courtesy of GENERAL MOTORS COMPANY
Torque Converter Bolt

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Torque Converter Bolt [6x] - Yes 60 N.m (44 lb ft) Transmission Replacement (F46 & NP0) , or Transmission Replacement (F46 & NQH) , or Transmission Replacement (RWL) , or Transmission Replacement (F46 & NQH & UXA) , or Transmission Replacement (F46 & NQH & UXA & 4TX)
GM5508848Courtesy of GENERAL MOTORS COMPANY
Transmission Bolt and Stud 1 of 2

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Stud [2x] - - 58 N.m (43 lb ft) Automatic Transmission Removal and Installation (RWL) , or Automatic Transmission Removal and Installation (F46 & NP0) , or Automatic Transmission Removal and Installation (F46 & NQH) , or Automatic Transmission Removal and Installation (F46 & NQH & UXA) , or Automatic Transmission Removal and Installation (F46 & NQH & UXA & 4TX)
2 Transmission Bolt [3x] - - 58 N.m (43 lb ft) Automatic Transmission Removal and Installation (RWL) , or Automatic Transmission Removal and Installation (F46 & NP0) , or Automatic Transmission Removal and Installation (F46 & NQH) , or Automatic Transmission Removal and Installation (F46 & NQH & UXA) , or Automatic Transmission Removal and Installation (F46 & NQH & UXA & 4TX)
GM5508846Courtesy of GENERAL MOTORS COMPANY
Transmission Bolt and Stud 2 of 2

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Stud - - 58 N.m (43 lb ft) Automatic Transmission Removal and Installation (RWL) , or Automatic Transmission Removal and Installation (F46 & NP0) , or Automatic Transmission Removal and Installation (F46 & NQH) , or Automatic Transmission Removal and Installation (F46 & NQH & UXA) , or Automatic Transmission Removal and Installation (F46 & NQH & UXA & 4TX)
2 Transmission Bolt [2x] - - 58 N.m (43 lb ft) Automatic Transmission Removal and Installation (RWL) , or Automatic Transmission Removal and Installation (F46 & NP0) , or Automatic Transmission Removal and Installation (F46 & NQH) , or Automatic Transmission Removal and Installation (F46 & NQH & UXA) , or Automatic Transmission Removal and Installation (F46 & NQH & UXA & 4TX)
GM5525756Courtesy of GENERAL MOTORS COMPANY
Transmission Control Module Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Control Module Bracket Bolt - - 9 N.m (80 lb in) Engine Control Module Bracket Replacement
GM6186786Courtesy of GENERAL MOTORS COMPANY

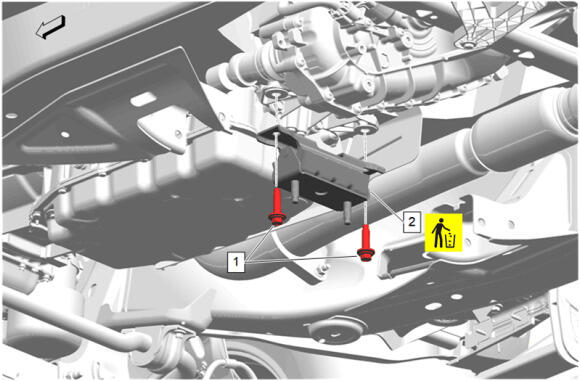

Transmission Mount (F46)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Mount Bolt [2x] - - 58 N.m (43 lb ft) Transmission Mount Replacement (F46) , or Transmission Mount Replacement (UXA & 4TX)
2 Transmission Mount Yes - - Transmission Mount Replacement (F46) , or Transmission Mount Replacement (UXA & 4TX)

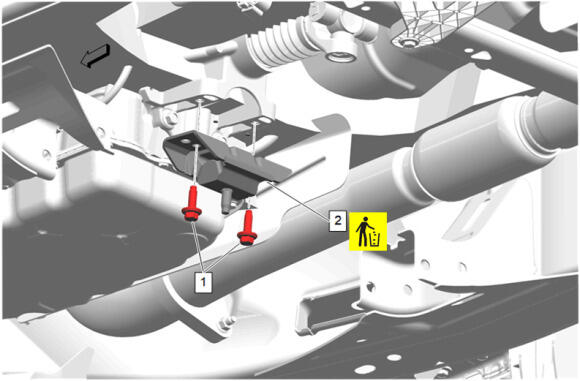

GM6186827Courtesy of GENERAL MOTORS COMPANY
Transmission Mount (RWL)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Mount Bolt - - 58 N.m (43 lb ft) Transmission Mount Replacement (RWL)
2 Transmission Mount Yes - - Transmission Mount Replacement (RWL)

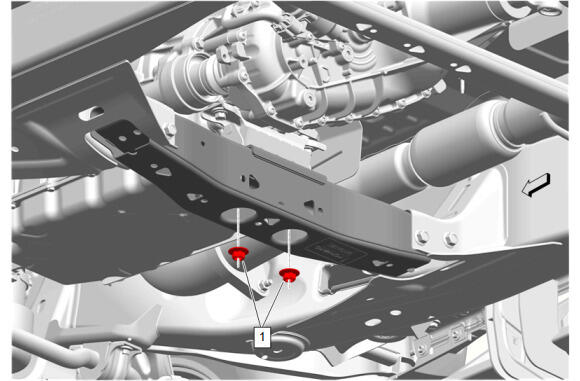

GM6145436Courtesy of GENERAL MOTORS COMPANY
Transmission Mount Nut (F46)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Mount Nut [2x] - - First Pass: 45 N.m (33 lb ft)
Final Pass: 45-55 degrees		 Transmission Mount Replacement (F46) , or Transmission Mount Replacement (UXA & 4TX)

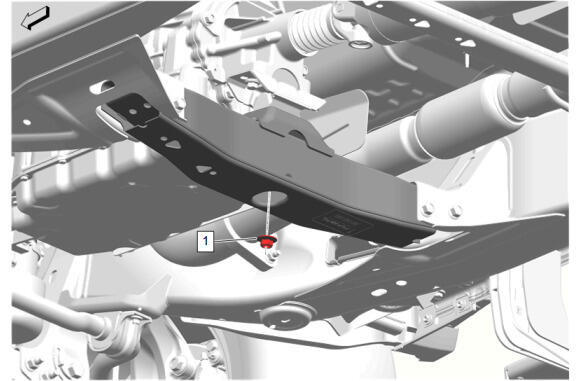

GM6163752Courtesy of GENERAL MOTORS COMPANY
Transmission Mount Nut (RWL)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Mount Nut - - First Pass: 45 N.m (33 lb ft)
Final Pass: 45-55 degrees		 Transmission Mount Replacement (RWL)

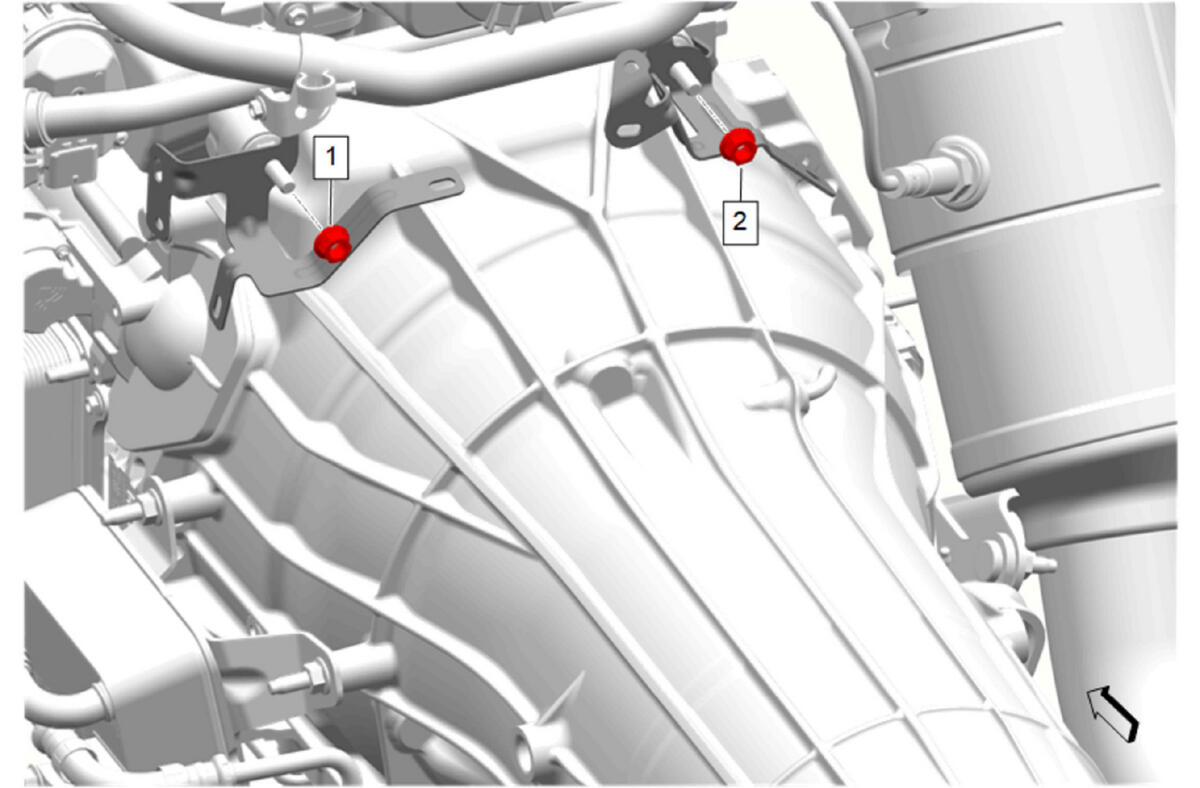

GM6326570Courtesy of GENERAL MOTORS COMPANY
Transmission Wiring Harness Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Wiring Harness Bracket Nut - - 9 N.m (80 lb in) Engine Removal and Installation
2 Transmission Wiring Harness Bracket Nut - - 9 N.m (80 lb in) Engine Removal and Installation
Automatic Transmission Case Extension Bolt Sequence
GM5479755Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Case Extension Bolt - M10 x 40 [6x] - -
  • First Pass: 22 N.m (16 lb ft)
  • Final Pass: 55 degrees
 Case Extension Assembly Installation
Automatic Transmission Case Front Cover Bolt Sequence
GM5483034Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Case Front Cover Bolt - M6 x 30 [11x] Yes - 9 N.m (80 lb in) Transmission Case Front Cover and Drive Link Installation
Automatic Transmission Fluid Pan Bolt Sequence
GM5484273Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Fluid Pan Bolt - M6 x 20 [15x] - - 10 N.m (89 lb in) Transmission Fluid Pan and Filter Assembly Installation
Automatic Transmission Fluid Pump Bolt Sequence
GM5483712Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Fluid Pan Bolt - M6 x 28 [5x] 9.8 Grade - - 10 N.m (89 lb in) Control Valve Body Assembly Assemble
1 Automatic Transmission Fluid Pump Bolt - M6 x 28 [5x] 10.9 Grade - - 13 N.m (115 lb in) Control Valve Body Assembly Assemble
Control Valve Body Bolt Sequence
GM5484104Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Control Valve Solenoid Body Bolt - M6 x 45 [4x] - - 9 N.m (80 lb in) Control Valve Assembly and Transmission Wiring Harness Installation
2 Control Valve Solenoid Body Bolt - M6 x 68 [7x] - - 9 N.m (80 lb in) Control Valve Assembly and Transmission Wiring Harness Installation
Control Valve Solenoid Body Bolt Sequence

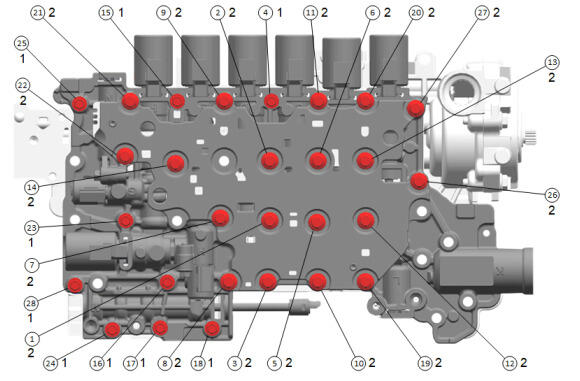

GM6101086Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Valve Body Bolt - M5 x 45 [9x] - - 8 N.m (71 lb in) Control Valve Body Assembly Assemble
2 Control Valve Channel Plate Bolt - M5 x 55 [19x] - - 8 N.m (71 lb in) Control Valve Body Assembly Assemble
Stator Shaft Support Bolt Sequence
GM5482172Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Stator Shaft Support Bolt - M8 x 33 [9x] - - 35 N.m (26 lb ft) Stator Shaft Support Installation
scientia non olet · About LEMON Manuals
