Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

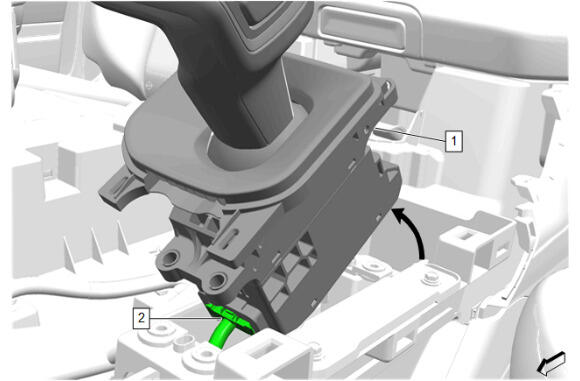

Electrical Connector (2) - Install
Gear Shift Control Module (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

NOTE:
Some components not shown for graphic clarity.

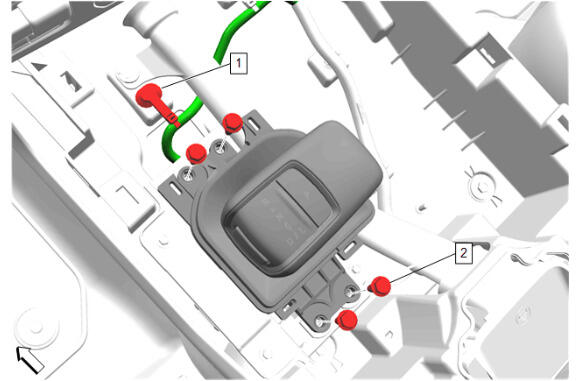

Automatic Transmission Control Bolt (2) - Install and tighten [4x] - Fastener Specifications
Wiring Harness Clip (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

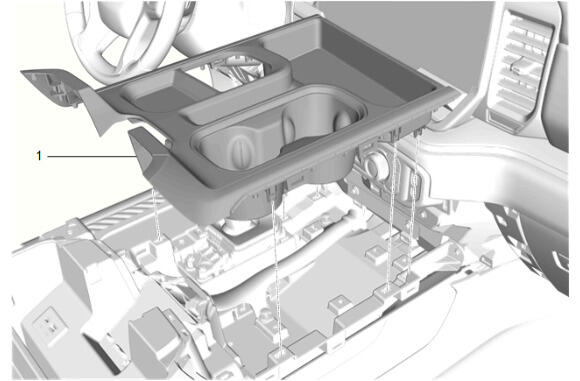

Front Floor Console Cup Holder Trim Plate (1) - Install
Courtesy of GENERAL MOTORS COMPANY

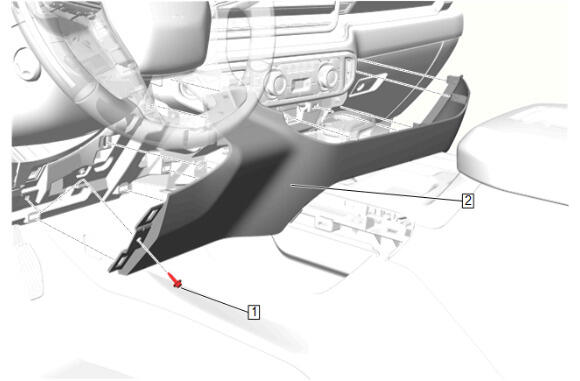

Instrument Panel Lower Trim Panel (2) - Install
Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

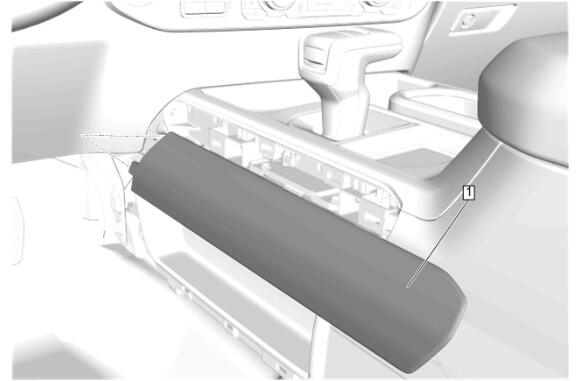

Front Floor Console Applique- Left Side and Right Side (1) - Install [2x]

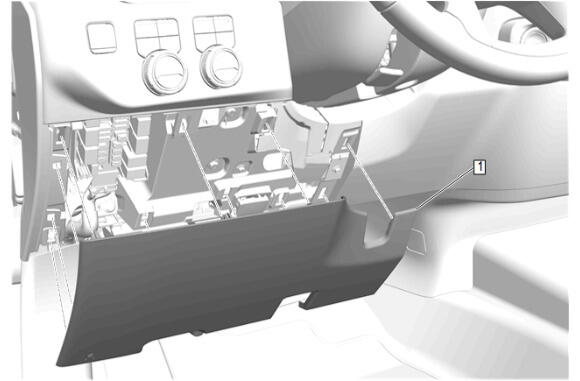

Courtesy of GENERAL MOTORS COMPANY

WARNING:
When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

Instrument Panel Knee Bolster (1) - Install
Reprogram the gear shift control module. Control Module References
