Fastener Specifications
NOTE:

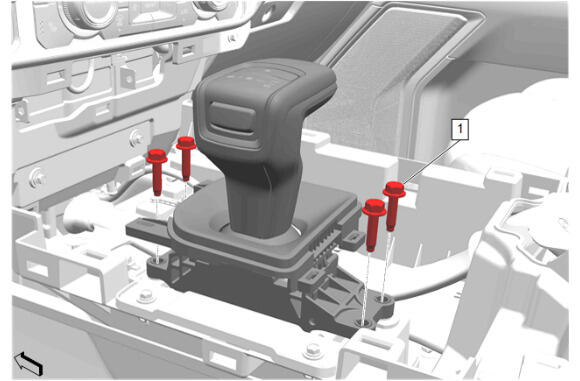

Callouts items in the following chart represent components shown in graphic above.
Automatic Transmission Control Bolt
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Automatic Transmission Control Bolt [4x] | - | - | 10.5 N.m (93 lb in) | Gear Shift Control Module Replacement (SLE, SLT) , or Gear Shift Control Module Replacement (AT4, AT4X, Denali, Denali Ultimate) |
