Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Ensure the retaining tabs are properly aligned.

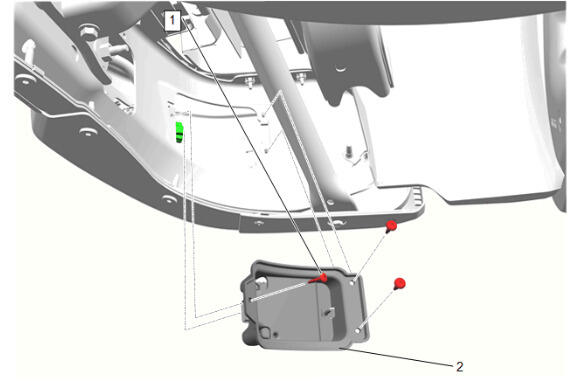

Side Obstacle Detection Control Module (2) - Install

CAUTION:

Rear Bumper Fascia Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Rear Bumper Fascia Molding Opening Cover (2) Install
Rear Bumper Fascia Bolt (1) - Install and tighten [3x] - Fastener Specifications
Lower the vehicle.
Perform the necessary programming and setup procedure:Control Module References
