Fastener Specifications

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts items in the following chart represent components shown in graphic above.

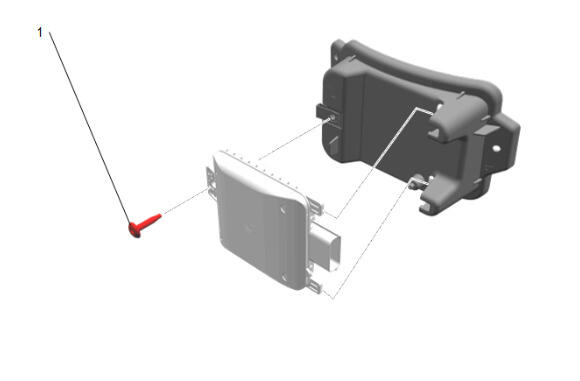

Active Safety Control Module Bracket

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Active Safety Control Module Bracket Bolt [4x]	-	-	2.5 N.m (22 lb in)	Active Safety Control Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts items in the following chart represent components shown in graphic above.

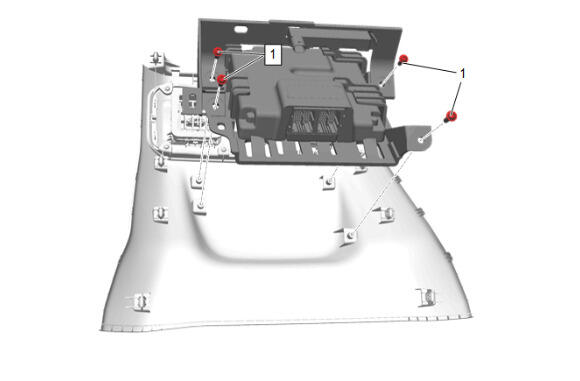

Forward Collision Alert Display

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Forward Collision Alert Display Bolt [2x]	-	-	2.5 N.m (22 lb in)	Forward Collision Alert Display Replacement (WT, Custom) , or Forward Collision Alert Display Replacement (SLE, SLT)

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts items in the following chart represent components shown in graphic above.

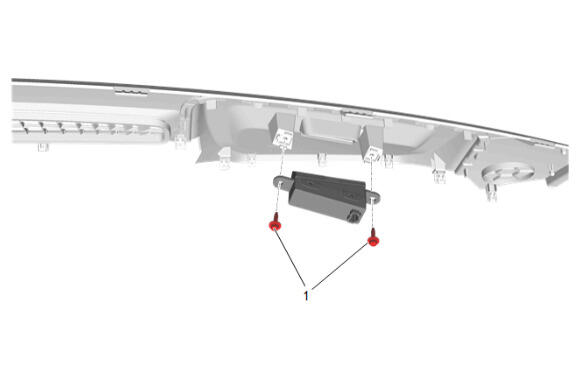

Forward Collision Alert Display (WT)

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Forward Collision Alert Display Bolt [2x]	-	-	2.5 N.m (22 lb in)	Forward Collision Alert Display Replacement (WT, Custom)

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts items in the following chart represent components shown in graphic above.

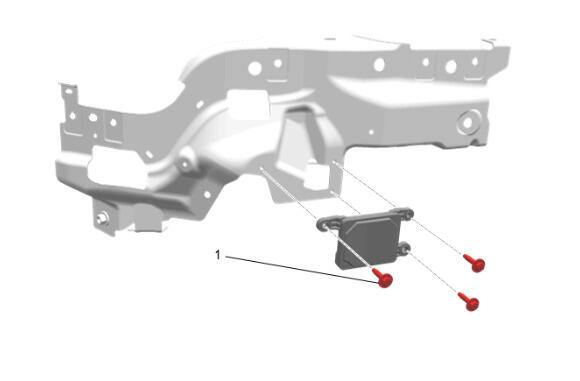

Forward Range Radar Sensor

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Forward Range Radar Sensor Bolt [3x]	-	-	2.5 N.m (22 lb in)	Forward Range Radar Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts items in the following chart represent components shown in graphic above.

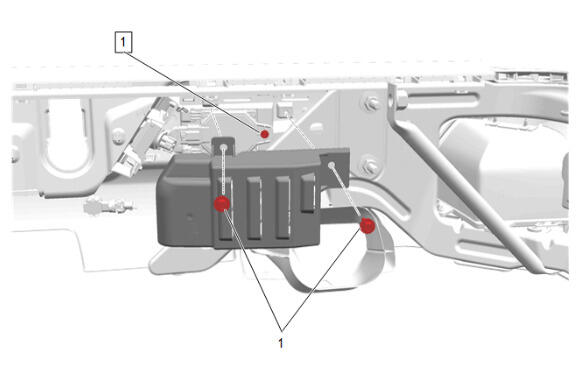

Front Short Range Radar Sensor

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Short Range Radar Sensor Bolt	-	-	2.5 N.m (22 lb in)	Front Short Range Radar Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts items in the following chart represent components shown in graphic above.

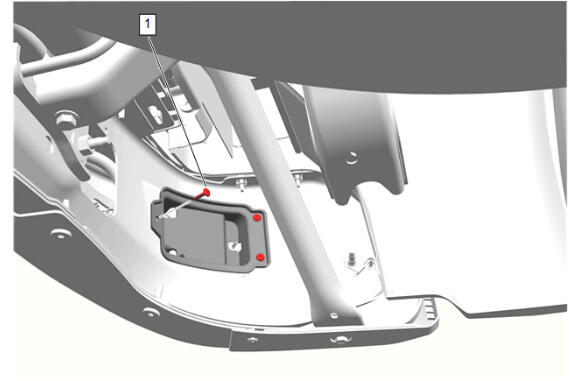

Rear Bumper Fascia Molding Opening Cover with ULV

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Rear Bumper Fascia Bolt [3x]	-	-	2.5 N.m (22 lb in)	Side Obstacle Detection Control Module Replacement (-4SG) , or Side Obstacle Detection Control Module Replacement (4SG)

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts items in the following chart represent components shown in graphic above.

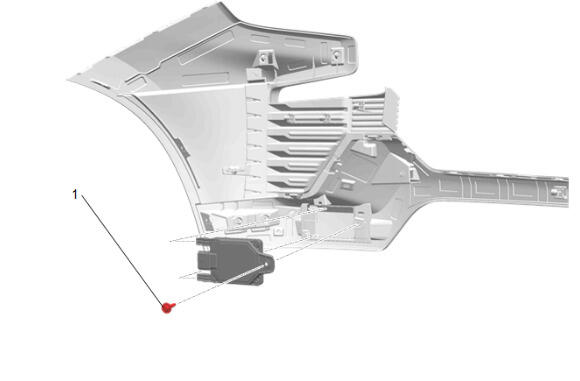

Short Range Radar Rear Side Sensor and Cover

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Short Range Radar Sensor Bolt [3x]	-	-	2.5 N.m (22 lb in)	Short Range Radar Rear Side Sensor Replacement (Denali)

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts items in the following chart represent components shown in graphic above.

Side Object Sensing Alert Modulewith ZR2

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Side Object Sensing Alert Module Bolt	-	-	2.5 N.m (22 lb in)	Side Obstacle Detection Control Module Replacement (-4SG) , or Side Obstacle Detection Control Module Replacement (4SG)

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts items in the following chart represent components shown in graphic above.

Side Object Sensing Alert Modulewith ULV

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Rear Bumper Fascia Bolt	-	-	2.5 N.m (22 lb in)	Side Obstacle Detection Control Module Replacement (-4SG) , or Side Obstacle Detection Control Module Replacement (4SG)
