Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Install the ride control switch (1) in the ride control switch bracket (2).
Courtesy of GENERAL MOTORS COMPANY

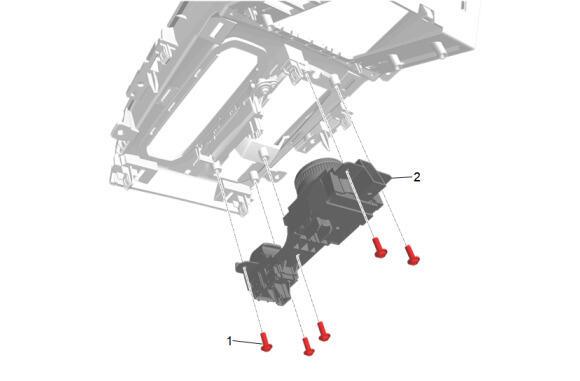

Ride Control Switch Bracket (2) - Install

CAUTION:

Ride Control Switch Bracket Bolt (1) - Install and tighten [5x] Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

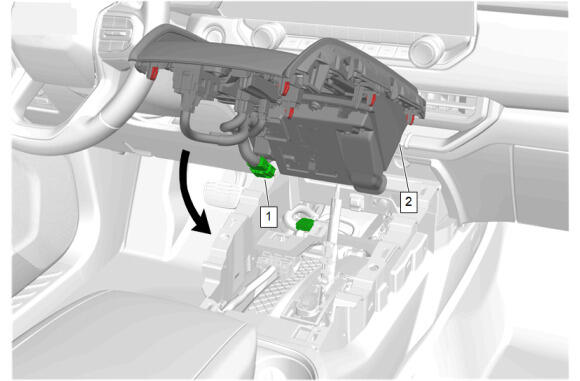

Connect the electrical connectors. (1)
Front Floor Console Cup Holder Trim Plate (2) - Install
Courtesy of GENERAL MOTORS COMPANY

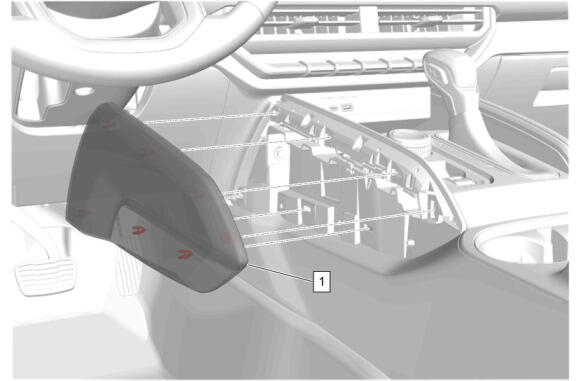

Front Floor Console Applique- Left Side and Right Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

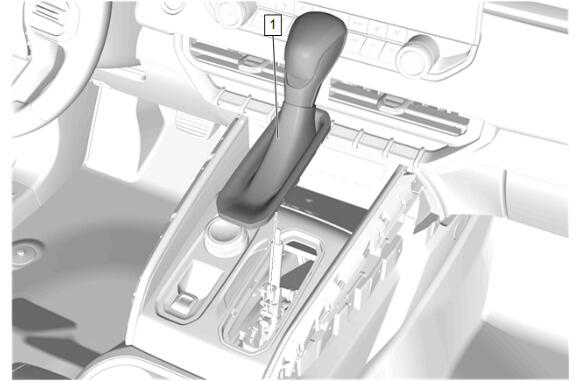

Automatic Transmission Control Lever Knob (1) - Install
Place the transmission control in the Park position.
Disengage the parking brake and remove the wheel chocks.
