Fastener Specifications

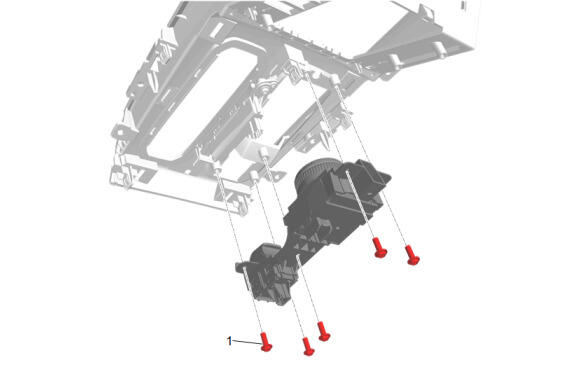

Ride Control Switch Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Ride Control Switch Bracket Bolt [5x] | - | - | 1 N.m (9 lb in) | Ride Control Switch Replacement |
