Installation Procedure

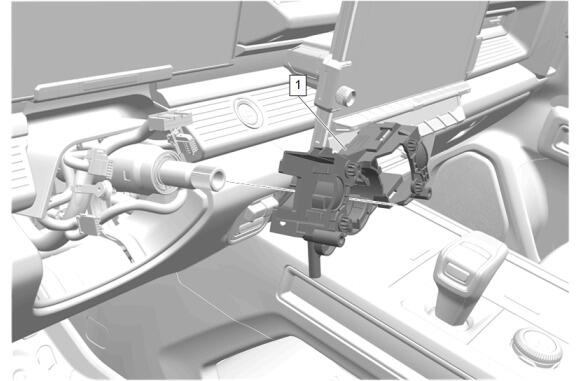

Turn Signal Switch Bracket (1) - Install

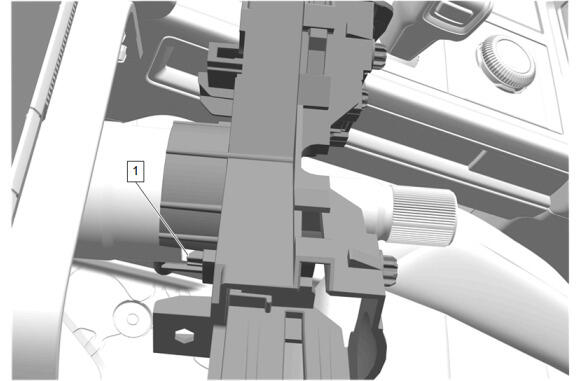

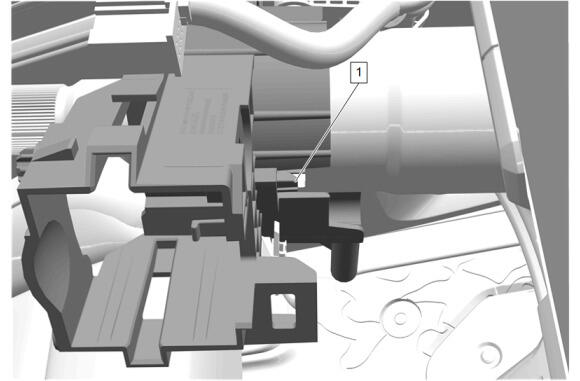

Ensure the locking tab (1) on the right side of the turn signal switch bracket is fully seated.
Ensure the locking tab (1) on the left side of the turn signal switch bracket is fully seated.

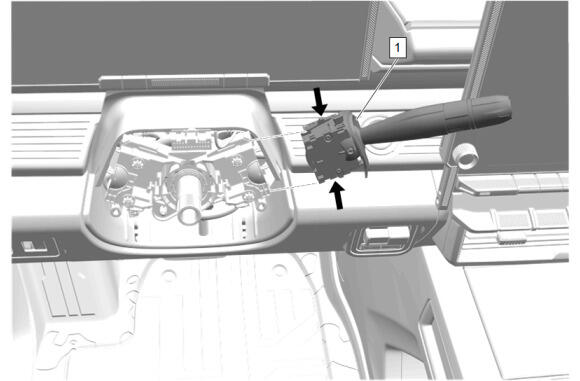

Windshield Wiper and Windshield Washer Switch (1) - Install

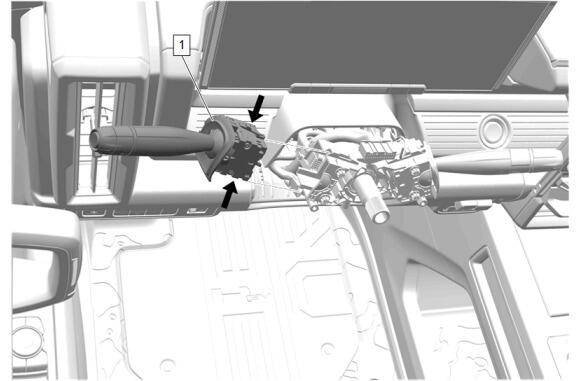

Turn Signal Switch (1) - Install
Install the wiring harness retainer (2) on the right side of the turn signal bracket.
- Connect the electrical connector. (1)

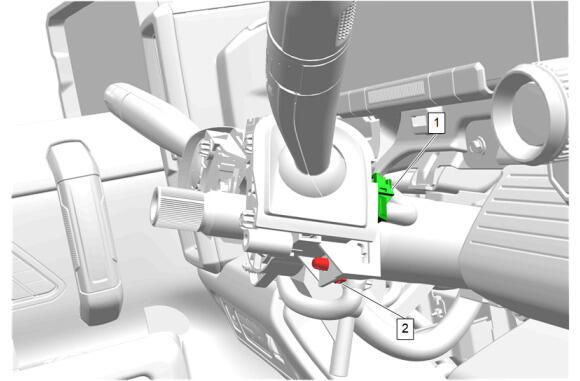

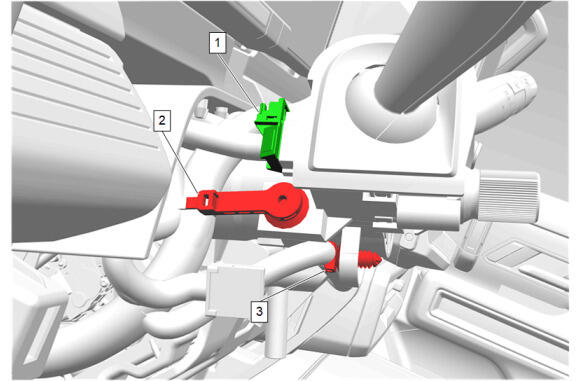

Install the wiring harness clip (2) and wiring harness retainer (3) on the left side of the turn signal bracket.
- Connect the electrical connector. (1)
Ensure the steering wheel airbag coil is CENTERED during installation. Steering Wheel Airbag Coil Centering

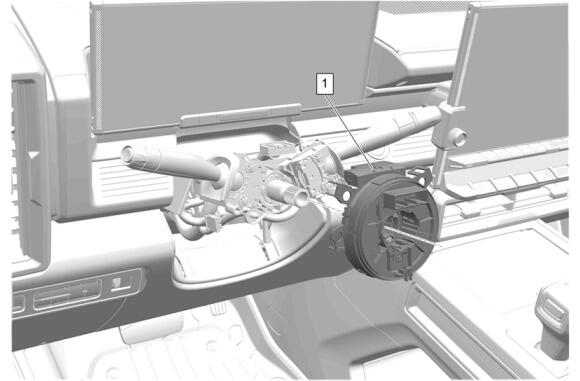

- Steering Wheel Airbag Coil (1) - Install
- Connect the electrical connector.

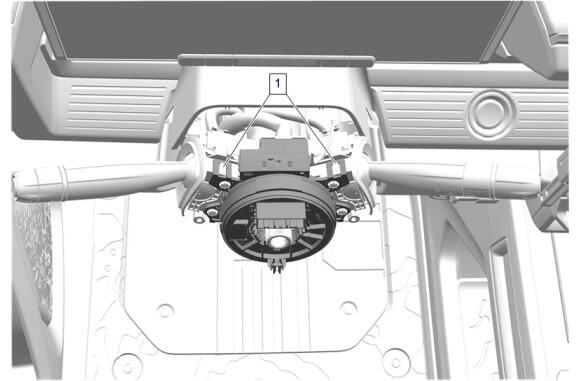

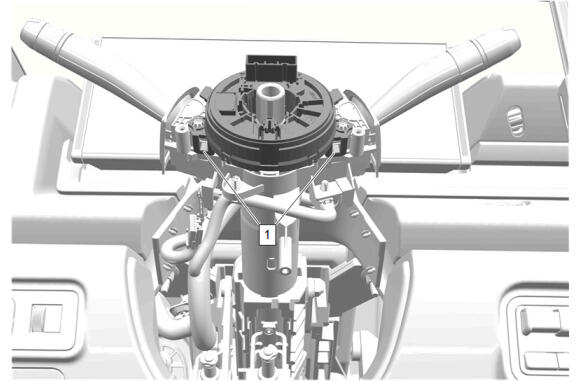

Ensure the steering wheel airbag coil lower retaining tabs (1) are engaged.
Ensure the steering wheel airbag coil upper retaining tabs (1) are engaged.
Connect the electrical connectors.

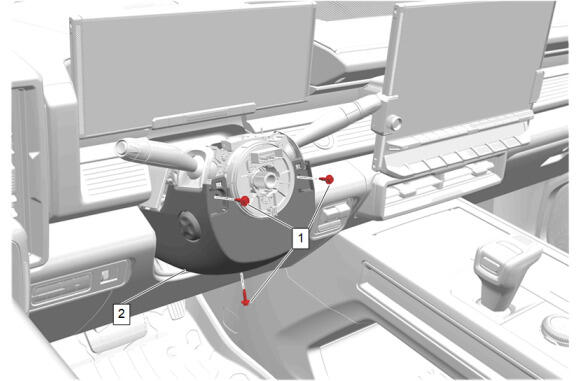

- Instrument Panel Steering Column Lower Trim Cover (2) - Install
- Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten [3x] - Fastener Specifications

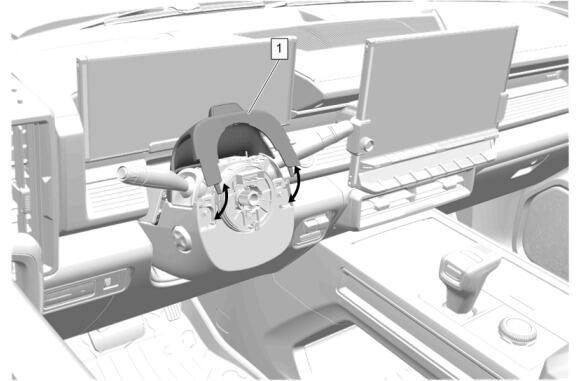

Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
Connect the electrical connector.
- Steering Wheel (1) - Install
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
- Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
- Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
- Remove loose debris from internal and external threads using compressed air.
- Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
- Steering Wheel Bolt (1) - Install and tighten - Fastener Specifications
Connect the electrical connectors.
- Install any connector position assurance (CPA) devices or secondary locks.
- Steering Wheel Airbag (2) - Install
- Steering Wheel Airbag Bolt (1) - Install and tighten [2x] - Fastener Specifications
- NOTE:
Left side shown, right side similar.
Install the left and right steering wheel airbag access hole covers (1).
- Enable the SIR System. SIR Disabling and Enabling
Refer to Fastener Caution .
After installation of the steering wheel airbag module to the steering wheel, slightly pull the module outward. If there is no give on the airbag module then it is secured correctly. If the airbag module is not fully attached personal injury could result.
