Fastener Specifications

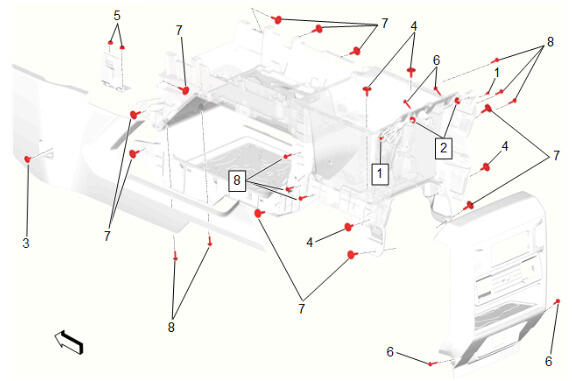

Front Floor Console
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Floor Console Armrest Bolt [2x] | - | - | 0.85 N.m (8 lb in) | Front Floor Console Armrest Replacement |
| 2 | Front Floor Console Armrest Nut [2x] | - | - | 3 N.m (27 lb in) | Front Floor Console Armrest Replacement |
| 3 | Front Floor Console Extension Bolt | - | - | 2.5 N.m (22 lb in) | Front Floor Console Extension Panel Replacement - Left Side |
| 4 | Front Floor Console Intermediate Bracket Bolt [4x] | - | - | 9 N.m (80 lb in) | Front Floor Console Intermediate Bracket Replacement |
| 5 | Front Floor Console Intermediate Bracket Nut [2x] | - | - | 9 N.m (80 lb in) | Front Floor Console Bracket Replacement |
| 6 | Front Floor Console Rear Cover Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Front Floor Console Rear Trim Panel Replacement |
| 7 | Front Floor Console Retainer Bolt [10x] | - | - | 9 N.m (80 lb in) | Front Floor Console Removal and Installation |
| 8 | Front Floor Console Storage Tray Bolt [8x] | - | - | 2.5 N.m (22 lb in) | Front Floor Console Stowage Tray Replacement |

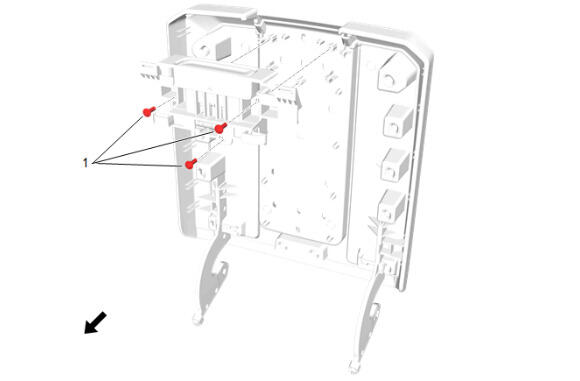

Front Floor Console Armrest Latch
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Floor Compartment Door Latch Bolt [3x] | - | - | 1 N.m (9 lb in) | Front Floor Console Armrest Latch Replacement |

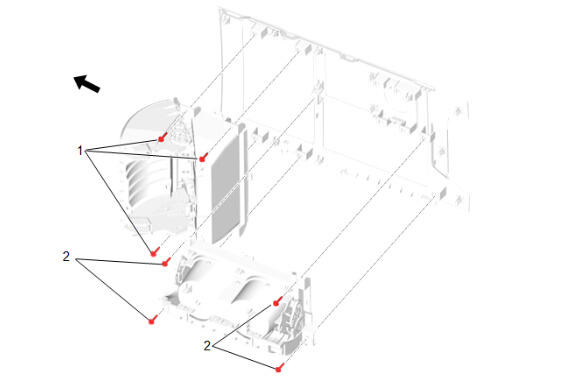

Front Floor Console Cup Holder Trim Plate
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Floor Console Bolt [3x] | - | - | 2.5 N.m (22 lb in) | Front Floor Console Center Compartment Replacement |
| 2 | Front Floor Console Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Front Floor Console Cup Holder Replacement |

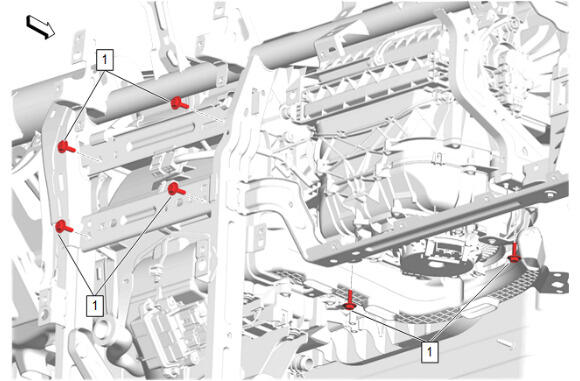

Heater and Air Conditioning Evaporator and Blower Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Heater and Air Conditioning Evaporator and Blower Module Bolt [6x] | - | - | 5 N.m (44 lb in) | Instrument Panel Tie Bar Replacement |

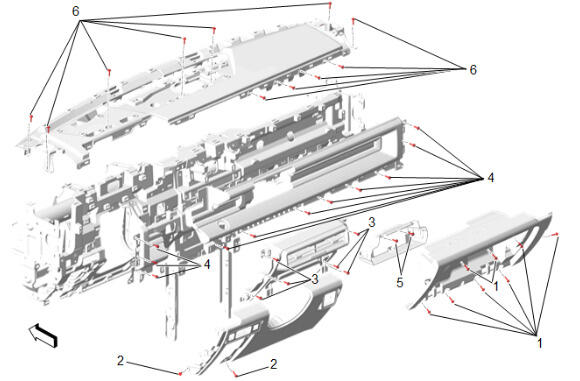

Instrument Panel
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Instrument Panel Compartment Bolt [8x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Compartment Replacement |
| 2 | Instrument Panel Knee Bolster Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Knee Bolster Replacement |
| 3 | Instrument Panel Lower Trim Panel Bolt [6x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Lower Trim Panel Replacement |
| 4 | Instrument Panel Steering Column Lower Trim Cover Bolt [3x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Steering Column Lower Trim Cover Replacement |
| 5 | Instrument Panel Trim Pad Bolt [11x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Trim Pad Replacement - Left Side |
| Instrument Panel Trim Pad Replacement - Right Side | |||||
| Instrument Panel Knee Bolster Deflector Replacement | |||||
| 6 | Instrument Panel Trim Plate Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Trim Plate Replacement |
| 7 | Instrument Panel Upper Trim Panel Bolt [11x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Upper Trim Panel Replacement |
| Instrument Panel Upper Trim Panel Removal and Installation |

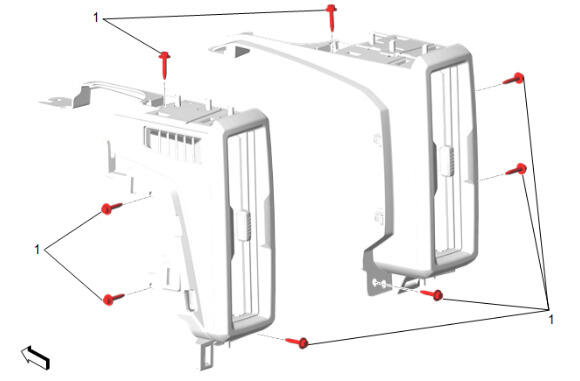

Instrument Panel Air Outlet Bezel
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Instrument Panel Outer Air Outlet Bolt [8x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Air Outlet Bezel Replacement - Right Side |
| Instrument Panel Air Outlet Bezel Replacement - Left Side | |||||
| Instrument Panel Knee Bolster Deflector Replacement |

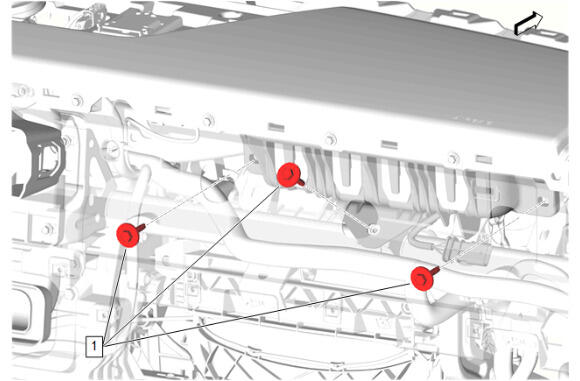

Instrument Panel Airbag
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Instrument Panel Airbag Bolt [3x] | - | - | 9 N.m (80 lb in) | Instrument Panel Upper Trim Panel Replacement |
| Instrument Panel Upper Trim Panel Removal and Installation |

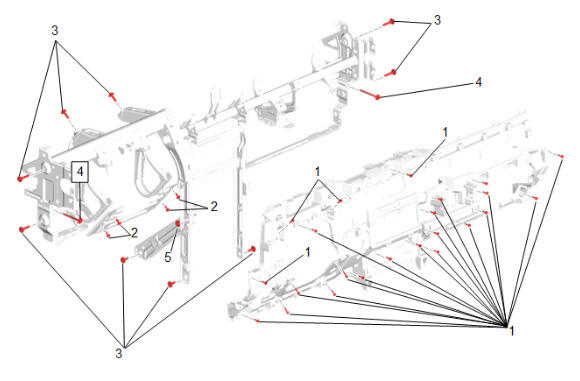

Instrument Panel Carrier and Instrument Panel Tie Bar
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Instrument Panel Carrier Bolt [23x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Carrier Replacement |
| Instrument Panel Knee Bolster Deflector Replacement | |||||
| 2 | Instrument Panel Knee Bolster Bracket Bolt [4x] | - | - | 9 N.m (80 lb in) | Instrument Panel Knee Bolster Deflector Replacement |
| Instrument Panel Tie Bar Replacement | |||||
| 3 | Instrument Panel Tie Bar Bolt [9x] | - | - | 22 N.m (16 lb ft) | Instrument Panel Tie Bar Replacement |
| Instrument Panel Tie Bar Brace Replacement | |||||
| 4 | Instrument Panel Tie Bar Brace Bolt [2x] | - | - | 9 N.m (80 lb in) | Instrument Panel Tie Bar Replacement |
| 5 | Instrument Panel Tie Bar Bracket Nut | - | - | 22 N.m (16 lb ft) | Instrument Panel Tie Bar Brace Replacement |
| Instrument Panel Tie Bar Replacement |

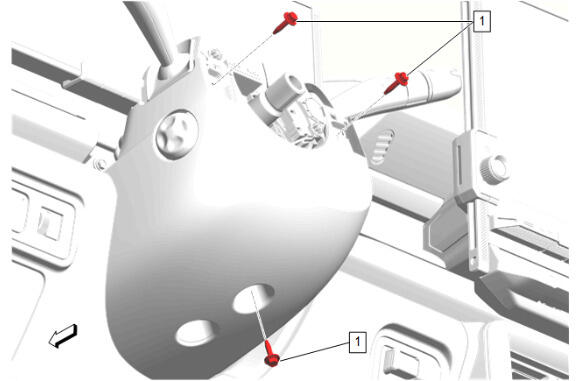

Instrument Panel Steering Column Lower Trim Cover
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Instrument Panel Steering Column Lower Trim Cover Bolt [3x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Steering Column Lower Trim Cover Replacement |

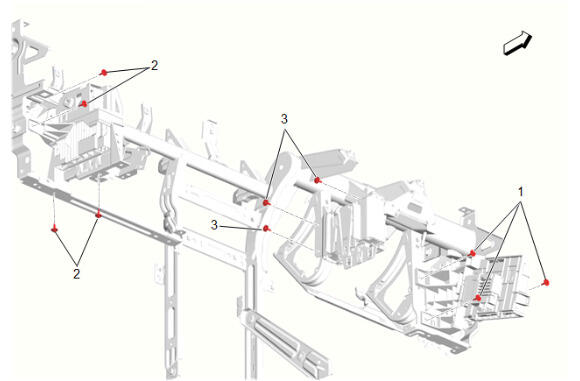

Instrument Panel Tie Bar Module Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Body Control Module Bolt [3x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Tie Bar Replacement |
| 2 | Radio Bracket Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Tie Bar Replacement |
| 3 | Serial Data Gateway Module Bracket Bolt [3x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Tie Bar Replacement |

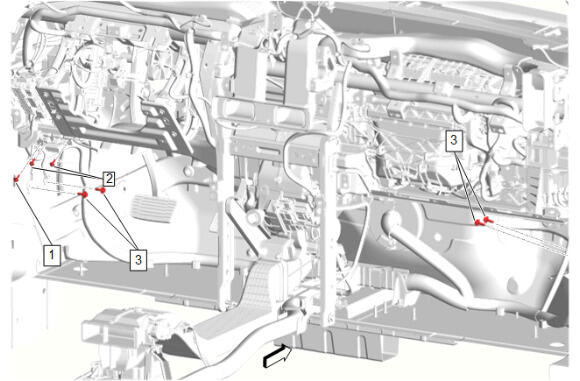

Wiring Harness
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Body Wiring Harness Bracket Bolt | - | - | 2.5 N.m (22 lb in) | Instrument Panel Tie Bar Replacement |
| 2 | Data Link Connector Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Wiring Harness Replacement |
| Instrument Panel Tie Bar Replacement | |||||
| 3 | Instrument Panel Wiring Harness Ground Bolt [4x] | - | - | 9 N.m (80 lb in) | Instrument Panel Wiring Harness Replacement |
| Instrument Panel Tie Bar Replacement |
