Installation Procedure

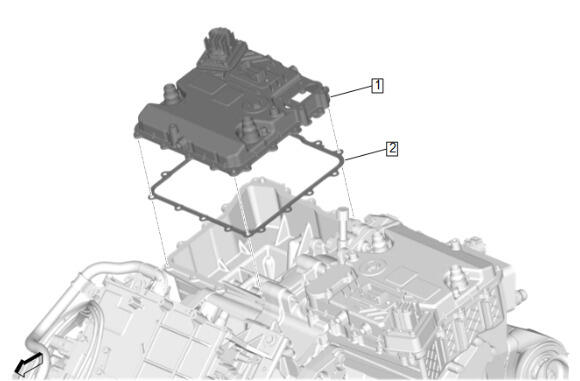

  1. GM5869533Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Drive Motor Power Inverter Module Cover Gasket (2) @ Drive Motor Power Inverter Rear Module (1) - Install

  2. Drive Motor Power Inverter Rear Module (1) - Install

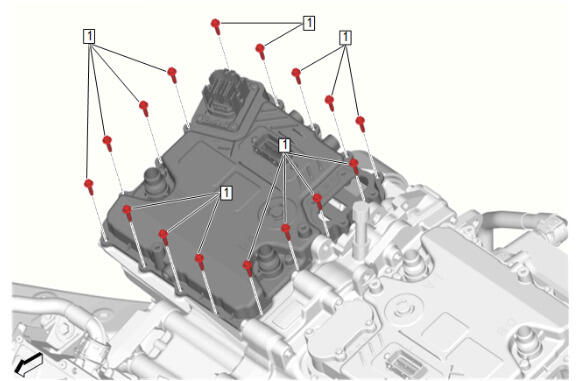

  3. GM5869532Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    NOTE:

    Some components not shown for graphic clarity.

    Drive Motor Power Inverter Module Bolt (1) - Install and tighten in sequence [16x] - Fastener Specifications

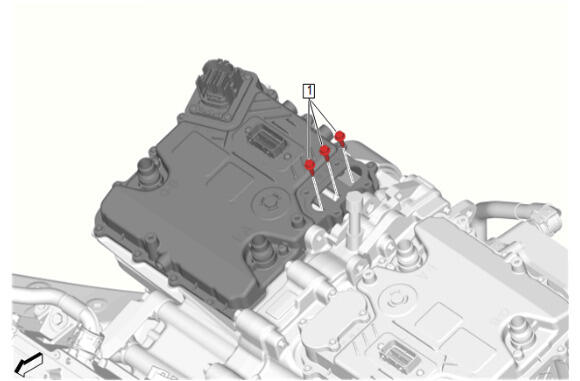

  4. GM5869531Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Drive Motor Power Inverter Module Connector Bolt (1) - Install and tighten [3x] - Fastener Specifications

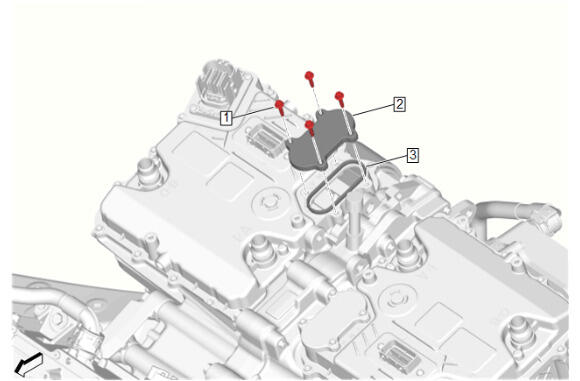

  5. GM5869530Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Drive Motor Power Inverter Module Cover Gasket (3) @ Drive Motor Power Inverter Module Cover (2) - Install

  6. Drive Motor Power Inverter Module Cover (2) - Install
  7. Drive Motor Power Inverter Module Cover Bolt (1) - Install and tighten [4x] - Fastener Specifications

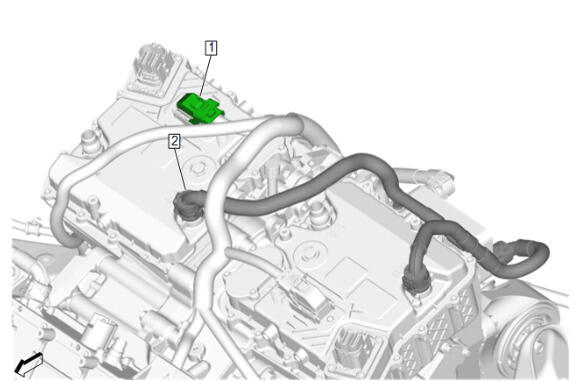

  8. GM5869528Courtesy of GENERAL MOTORS COMPANY

    Rear Electric Drive Transmission Module Cooler Coolant Hose (2) - Connect

  9. Connect the electrical connector. (1)
  10. GM5869210Courtesy of GENERAL MOTORS COMPANY

    Battery Positive and Negative Cable Extension Cable (1) - Install

  11. GM5869209Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Install the battery positive and negative cable extension cable retainer (3).

  12. Battery Positive Cable Shield Bolt (2) - Install and tighten [2x] - Fastener Specifications
  13. Connect the electrical connectors. (1)
  14. GM5869208Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable Shield Bolt (2) - Install and tighten [2x] - Fastener Specifications

  15. Install the battery positive and negative cable extension cable retainers (1).
  16. GM5869207Courtesy of GENERAL MOTORS COMPANY

    Rear Electric Drive Transmission Module Coolant Hose (4) - Install

  17. Install the rear electric drive transmission module coolant hose retainer (3).
  18. Rear Electric Drive Transmission Module Coolant Hose (2) - Connect [3x]
  19. Drive Motor Power Inverter Module Bolt (1) - Install and tighten - Fastener Specifications
  20. GM5902903Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Cradle (1) - Install - Rear Suspension Cradle Removal and Installation

  21. Run all necessary programming and setup procedures. Control Module References
