Fastener Specifications

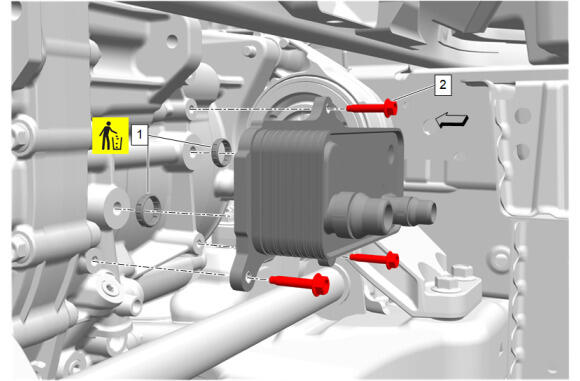

GM5893378Courtesy of GENERAL MOTORS COMPANY
Automatic Transmission Fluid Cooling Exchanger Replacement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Transmission Fluid Cooling Exchanger Seal [4x] Yes - - Automatic Transmission Fluid Cooling Exchanger Replacement (S8L) , or Automatic Transmission Fluid Cooling Exchanger Replacement (P79)
2 Automatic Transmission Fluid Cooling Exchanger Bolt [6x] - - 15 N.m (11 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (S8L) , or Automatic Transmission Fluid Cooling Exchanger Replacement (P79)

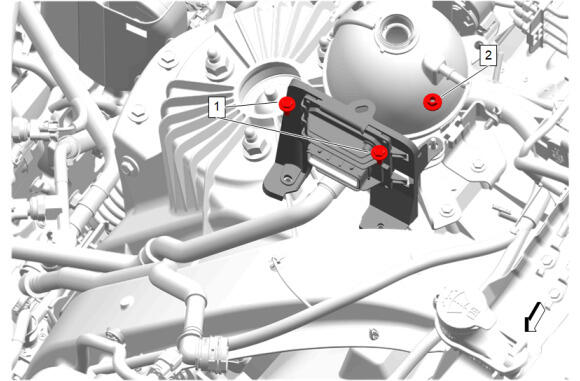

GM5898956Courtesy of GENERAL MOTORS COMPANY
Chassis Control Module Bracket

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Chassis Control Module Bracket Bolt [2x] - - 9 N.m (80 lb in) Drive Motor Battery Radiator Surge Tank Replacement
2 Chassis Control Module Bracket Nut - - 9 N.m (80 lb in) Drive Motor Battery Radiator Surge Tank Replacement

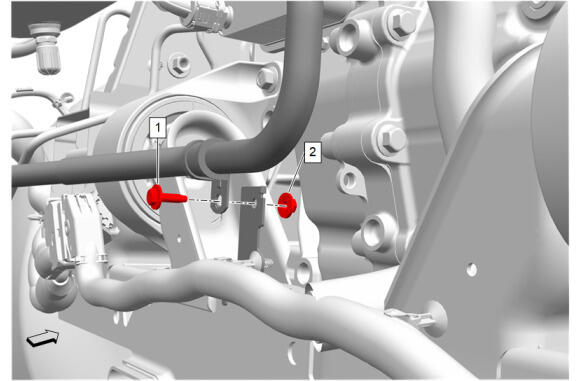

GM5893393Courtesy of GENERAL MOTORS COMPANY
Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose Replacement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Power Inverter Module Bolt - - 9 N.m (80 lb in) Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose Replacement

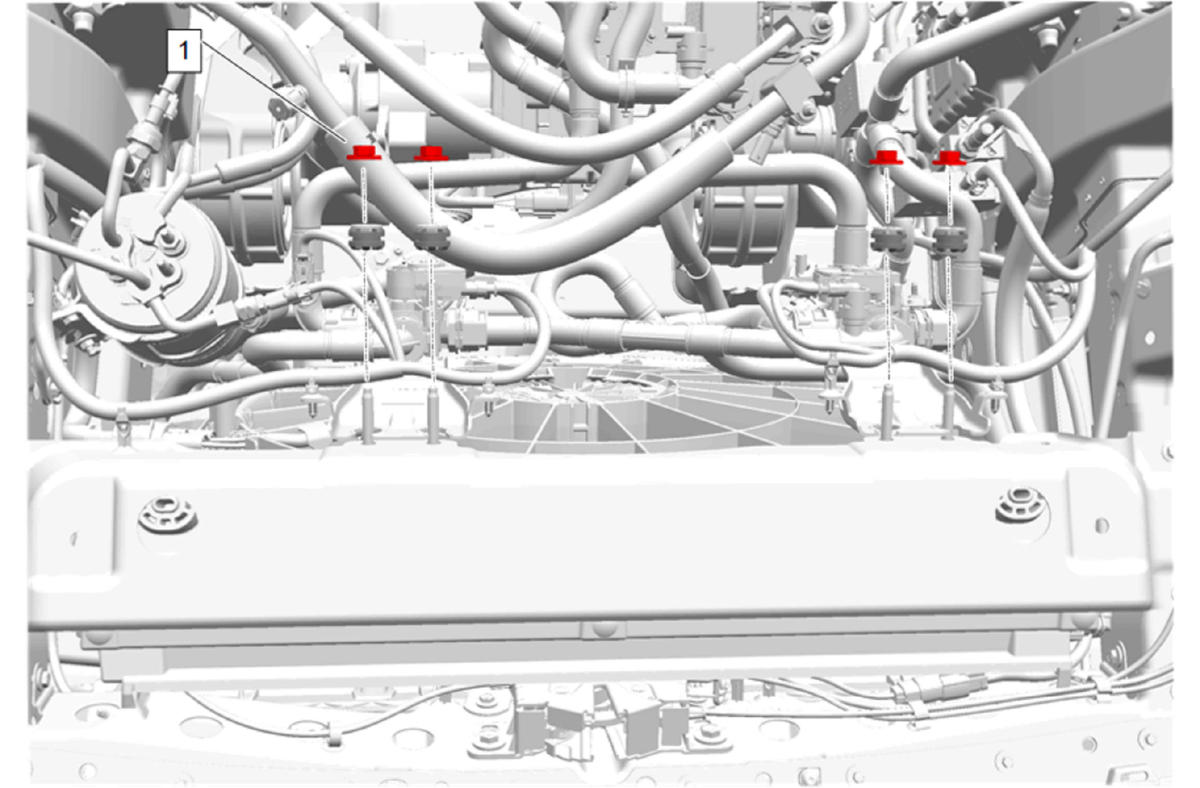

GM5836225Courtesy of GENERAL MOTORS COMPANY
Drive Motor Battery Control Module Bracket Nut

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Battery Control Module Bracket Nut [4x] - - 22 N.m (16 lb ft) Hybrid/Electric Vehicle Propulsion System Coolant Control Valve 1 Replacement - Left Side
Hybrid/Electric Vehicle Propulsion System Coolant Control Valve 1 Replacement - Right Side

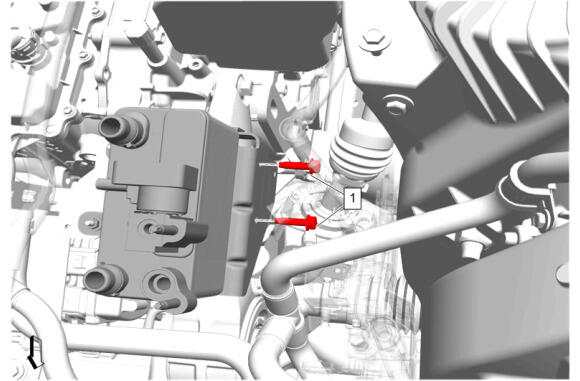

GM5905418Courtesy of GENERAL MOTORS COMPANY
Drive Motor Battery Cooling Blower Bracket Bolt

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Battery Cooling Blower Bracket Bolt [2x] - - 22 N.m (16 lb ft) Drive Motor Battery Coolant Cooler Replacement

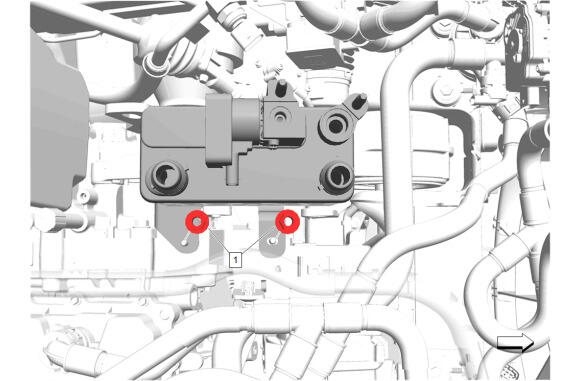

GM5837851Courtesy of GENERAL MOTORS COMPANY
Drive Motor Battery Cooling Blower Bracket Nut

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Battery Cooling Blower Bracket Nut [2x] - - 9 N.m (80 lb in) Drive Motor Battery Coolant Cooler Replacement

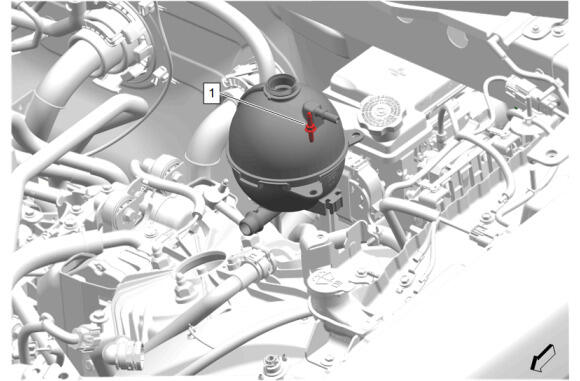

GM5898958Courtesy of GENERAL MOTORS COMPANY
Drive Motor Battery Radiator Surge Tank Bolt

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Battery Radiator Surge Tank Bolt - - 9 N.m (80 lb in) Drive Motor Battery Radiator Surge Tank Replacement

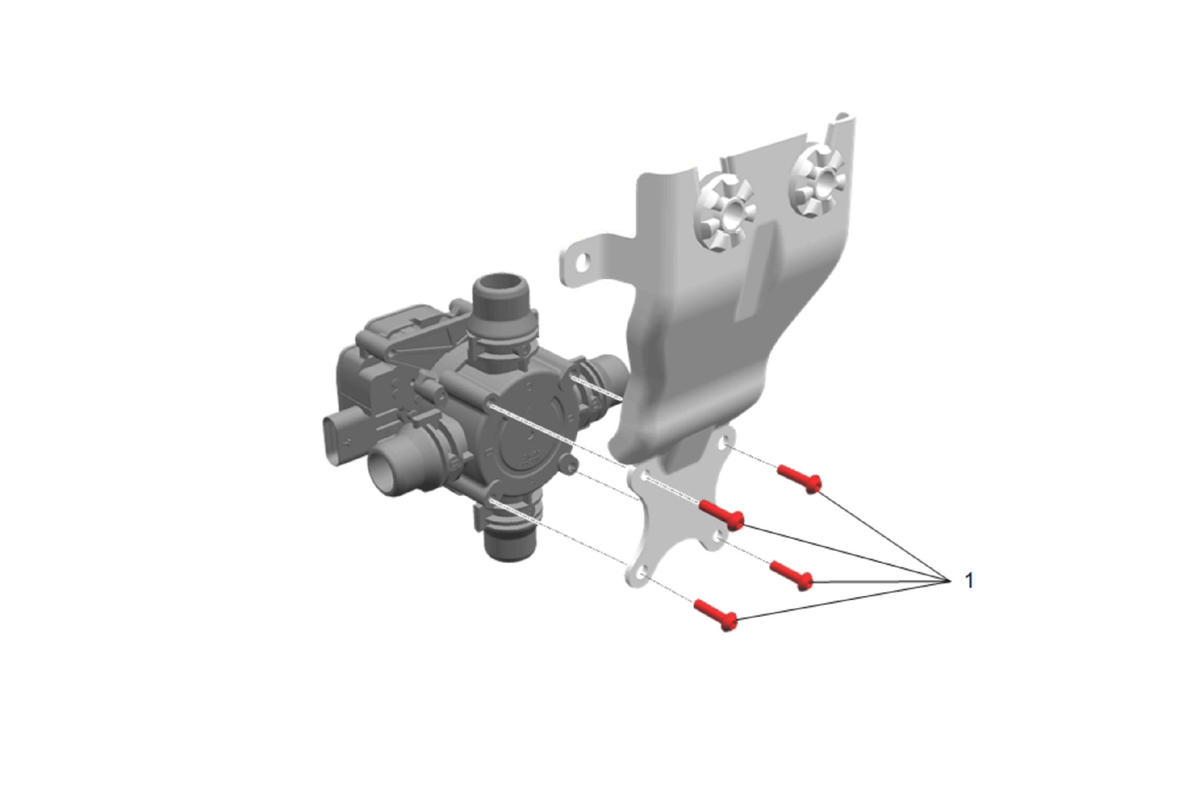

GM5860433Courtesy of GENERAL MOTORS COMPANY
Drive Motor Control Module Bracket Bolt

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Control Module Bracket Bolt [4x] - - 2.5 N.m (22 lb in) Hybrid/Electric Vehicle Propulsion System Coolant Control Valve 1 Replacement - Left Side
Hybrid/Electric Vehicle Propulsion System Coolant Control Valve 1 Replacement - Right Side

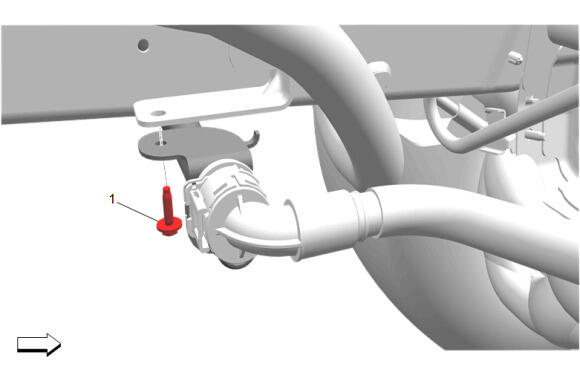

GM5783051Courtesy of GENERAL MOTORS COMPANY
Drive Motor Control Module Cooling Inlet Hose Bolt

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Control Module Cooling Inlet Hose Bolt - - 9 N.m (80 lb in) Drive Motor Battery Charger Receptacle Coolant Inlet Hose Replacement

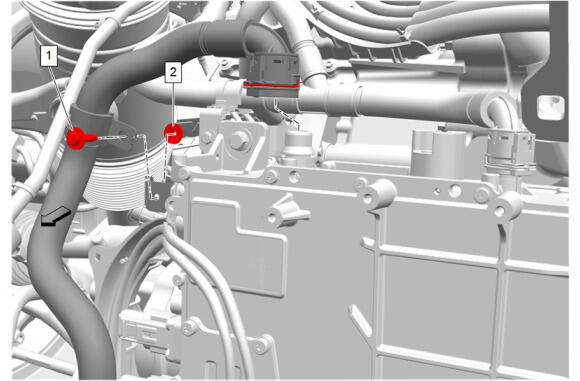

GM5903573Courtesy of GENERAL MOTORS COMPANY
Drive Motor Power Inverter Module Bracket Bolt and Drive Motor Power Inverter Module Nut (Drive Motor Power Distribution Control Module Hose)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Power Inverter Module Bolt - - 9 N.m (80 lb in) Drive Motor Power Distribution Control Module Hose Replacement
2 Drive Motor Power Inverter Module Nut - - 9 N.m (80 lb in) Drive Motor Power Distribution Control Module Hose Replacement

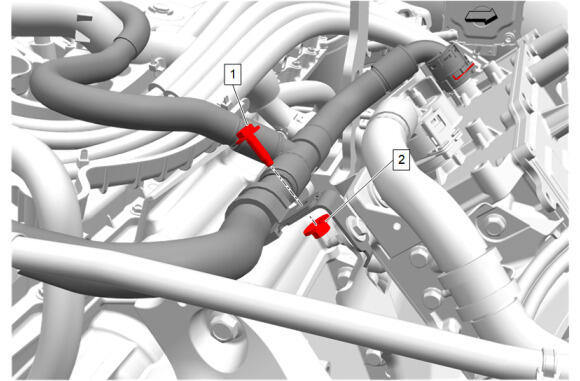

GM5903709Courtesy of GENERAL MOTORS COMPANY
Drive Motor Power Inverter Module Bracket Bolt and Drive Motor Power Inverter Module Nut (Rear Electric Drive Transmission Module Coolant Hose)

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Power Inverter Module Bolt - - 9 N.m (80 lb in) Rear Electric Drive Transmission Module Coolant Hose Replacement
2 Drive Motor Power Inverter Module Nut - - 9 N.m (80 lb in) Rear Electric Drive Transmission Module Coolant Hose Replacement

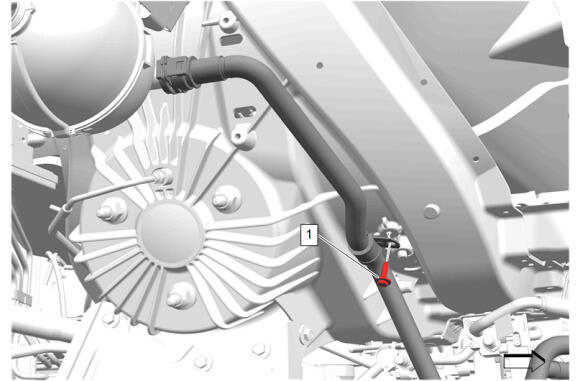

GM5837752Courtesy of GENERAL MOTORS COMPANY
Generator Control Module Coolant Pump Bracket Bolt

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Generator Control Module Coolant Pump Bracket Bolt - - 9 N.m (80 lb in) Drive Motor Control Module Coolant Pump Hose Replacement

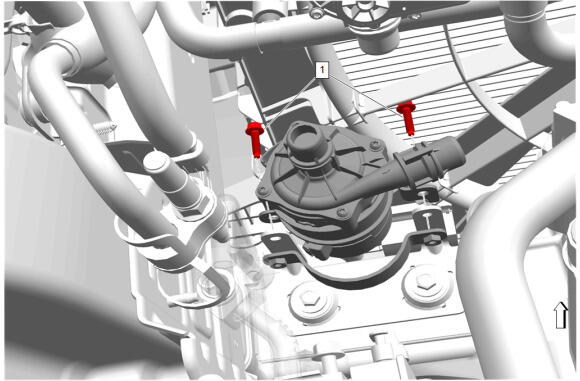

GM5868294Courtesy of GENERAL MOTORS COMPANY
Generator Control Module Coolant Pump Bracket Bolt

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Generator Control Module Coolant Pump Bracket Bolt [2x] - - 9 N.m (80 lb in) Hybrid/Electric Vehicle Battery Coolant Pump Replacement - Left Side
Hybrid/Electric Vehicle Battery Coolant Pump Replacement - Right Side

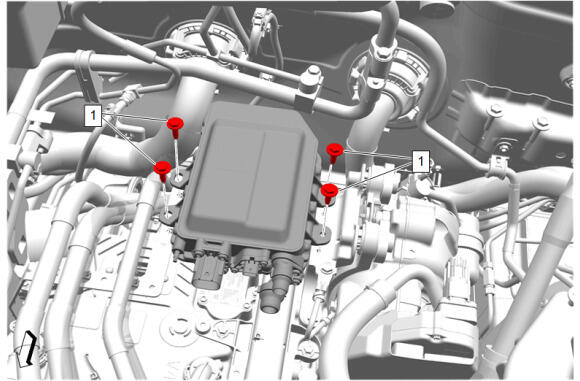

GM5862951Courtesy of GENERAL MOTORS COMPANY
High Voltage Battery Heater Bracket Bolt

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 High Voltage Battery Heater Bracket Bolt [4x] - - 9 N.m (80 lb in) High Voltage Battery Heater Module Replacement
GM5862951Courtesy of GENERAL MOTORS COMPANY
High Voltage Battery Heater Bracket Bolt

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 High Voltage Battery Heater Bracket Bolt [4x] - - 9 N.m (80 lb in) High Voltage Battery Heater Module Replacement

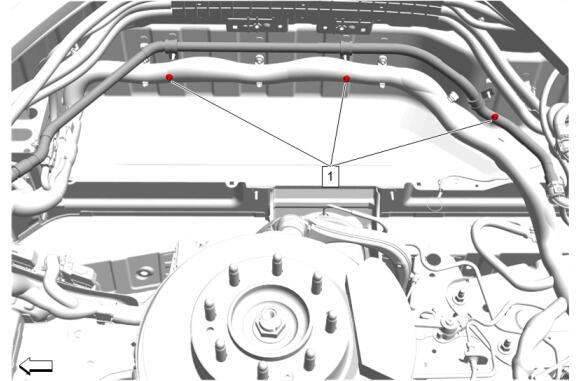

GM5905817Courtesy of GENERAL MOTORS COMPANY
Hybrid Powertrain Control Module 2 Nut

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Hybrid Powertrain Control Module 2 Nut [3x] - - 9 N.m (80 lb in) Drive Motor Battery Charger Receptacle Coolant Outlet Hose Replacement

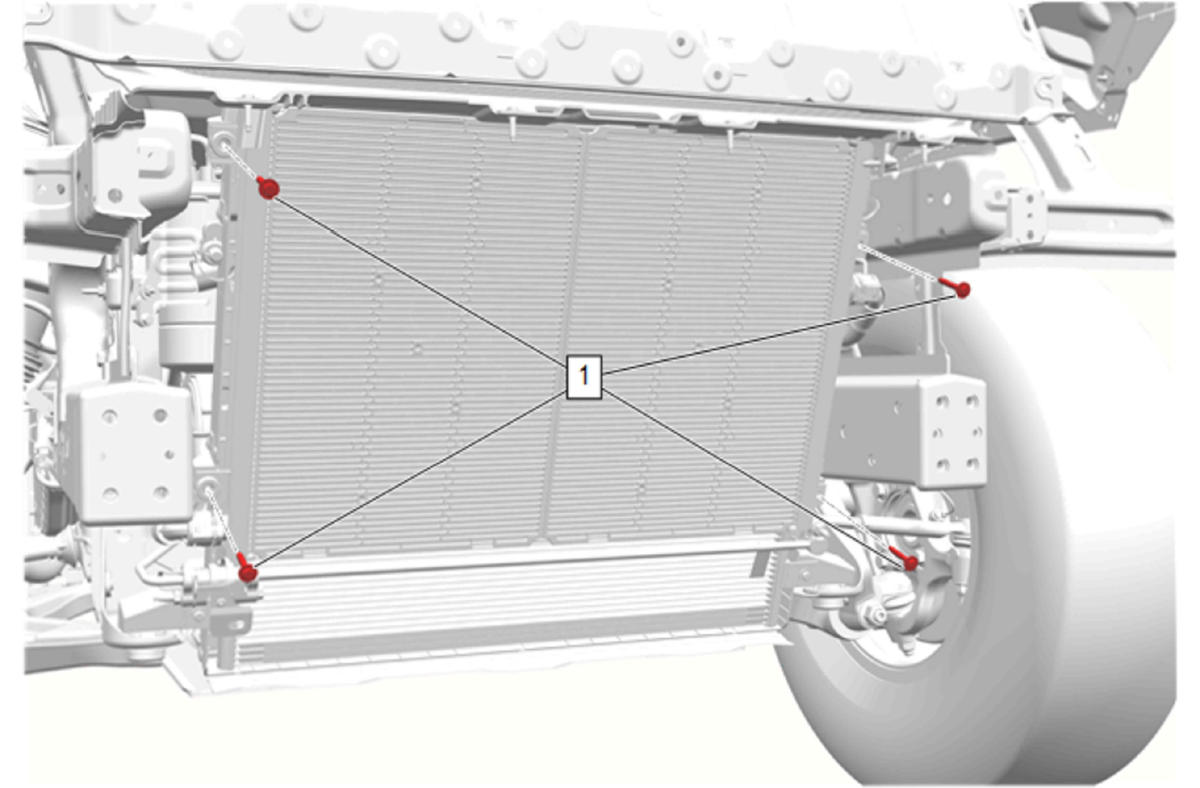

GM6050502Courtesy of GENERAL MOTORS COMPANY
Radiator Bolt

Callout Component Name Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Bolt [4x] - - 9 N.m (80 lb in) Radiator Replacement
