Installation Procedure

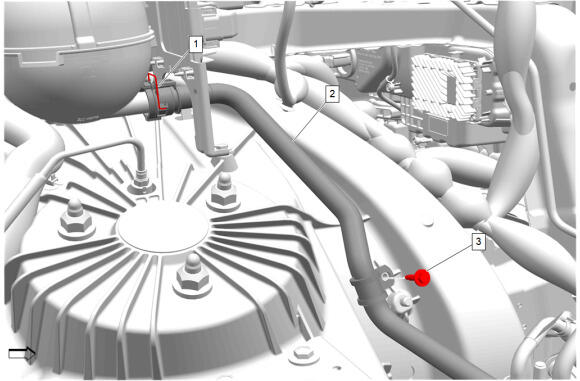

Drive Motor Control Module Coolant Pump Hose (2) - Install
- Retainer (1) - Engage
- Generator Control Module Coolant Pump Bracket Bolt (3) - Install and tighten - Fastener Specifications

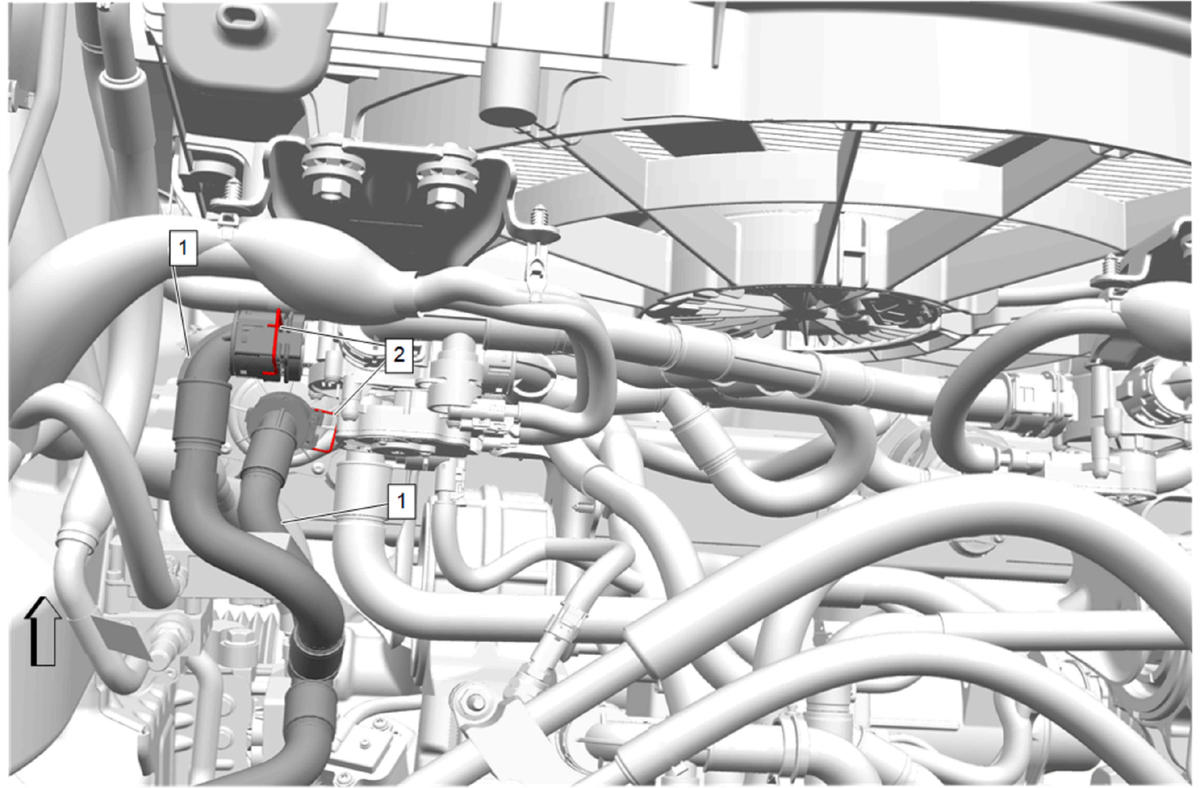

Drive Motor Control Module Coolant Pump Hose (1) @ Hybrid/Electric Vehicle Electronics Coolant Pump - Install
- Drive Motor Control Module Coolant Pump Hose (1) @ Hybrid/Electric Vehicle Propulsion System Coolant Control Valve 1 - Install
- Retainer (2) - Engage [2x]
- Fill the cooling system to the proper level. Drive Motor Battery Cooling System Draining and Filling
- Inspect for coolant leaks.
Front Trim Finish Compartment (2) - Install - Front Trim Finish Compartment Removal and Installation
CAUTION:
Refer to Fastener Caution
