Installation Procedure

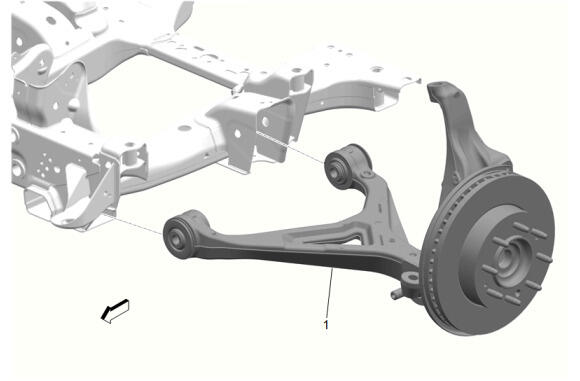

  1. GM5902760
    NOTE:

    Left side shown, right side similar.

    Install the following components on the left and right sides as an assembly (1).

    • Front Brake Rotor
    • Front Lower Control Arm
    • Steering Knuckle

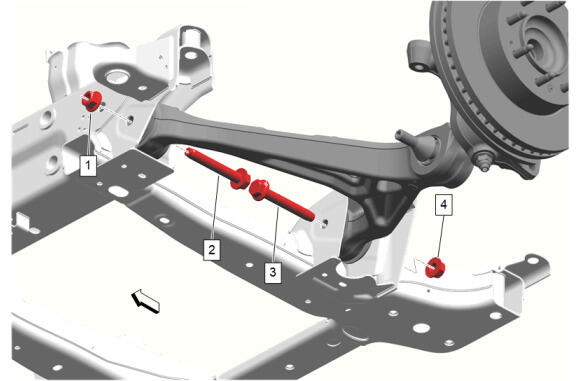

  2. GM5902746
    NOTE:

    Left side shown, right side similar.

    Front Lower Control Arm Rear Bolt- Left Side and Right Side (3) - Install [2x]

  3. Front Lower Control Arm Front Bolt- Left Side and Right Side (2) - Install [2x]
    4. CAUTION:

    Refer to Fastener Caution .

  4. Front Lower Control Arm Rear Nut- Left Side and Right Side - (4) Install and tighten [2x] - Fastener Specifications
  5. Front Lower Control Arm Front Nut- Left Side and Right Side (1) - Install and tighten [2x] - Fastener Specifications

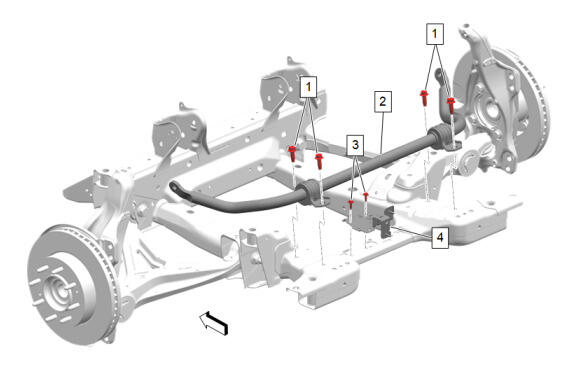

  6. GM5902734

    Wiring Harness Bracket (4) - Install

  7. Wiring Harness Bracket Bolt (3) - Install and tighten [2x] - Fastener Specifications
  8. Front Stabilizer Shaft (2) - Install
  9. Front Stabilizer Shaft Bolt (1) - Install and tighten [4x] - Fastener Specifications
  10. GM5902730

    Electric Belt Drive Rack and Pinion Steering Gear (3) - Install

  11. Steering Gear Bolt- Upper (1) - Install and tighten [2x] - Fastener Specifications
  12. Steering Gear Bolt - Lower (2) - Install [2x]
  13. Steering Gear Nut (4) - Install and tighten [2x] - Fastener Specifications
  14. GM5902729

    Steering Linkage Outer Tie Rod Nut (1) - Install and tighten [2x] - Fastener Specifications

  15. GM5902697

    Install the front electric drive transmission module assembly to the front cradle (1).

  16. GM5903760
    NOTE:

    Some components not shown for graphic clarity.

    Drive Motor Mount Bolt (2) - Install NEW [2x]

  17. Drive Motor Mount Nut (1) - Install [2x]
    18. CAUTION:

    This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

  18. Drive Motor Mount Bolt (2) - Tighten [2x] - Fastener Specifications
  19. GM5902700

    Drive Motor Rear Mount Bracket Bolt (1) - Install NEW and tighten [6x] - Fastener Specifications

  20. GM5903393
    NOTE:

    Left side shown, right side similar.

    Output Shaft Seal- Left Side and Right Side (2) - Install NEW [2x]

  21. Output Shaft Retaining Ring- Left Side and Right Side (1) - Install NEW [2x]
  22. GM5903392
    NOTE:

    Left side shown, right side similar.

    Front Wheel Drive Half Shaft- Left Side and Right Side (1) - Install [2x]

  23. GM5903315
    NOTE:

    Left side shown, right side similar.

    Front Wheel Drive Shaft Nut- Left Side and Right Side (1) - Install NEW and tighten [2x] - Fastener Specifications

  24. GM5893651

    Remove the 2 engine hoist hooks (1) from the 2 transmission brackets (2).

  25. GM5902668

    Install the battery positive and negative cable (2) to the wiring harness bracket.

  26. Battery Positive Cable Channel Nut (1) - Install and tighten [2x] - Fastener Specifications
  27. GM5902663

    Generator Control Module Coolant Pump Bracket Bolt- Right Side (1) - Install and tighten [2x] - Fastener Specifications

  28. GM5902657

    Generator Control Module Coolant Pump Bracket Bolt- Left Side (1) - Install and tighten [2x] - Fastener Specifications

  29. GM5902654

    Engine Wiring Harness Bolt (3) - Install and tighten - Fastener Specifications

  30. Engine Wiring Harness Ground Bolt (2) - Install and tighten [2x] - Fastener Specifications
  31. Engine Wiring Harness Retainer (1) @ Front Cradle - Install [3x]
  32. GM5865279

    Front Cradle (2) - Install - Front Cradle Removal and Installation
