Fastener Specifications

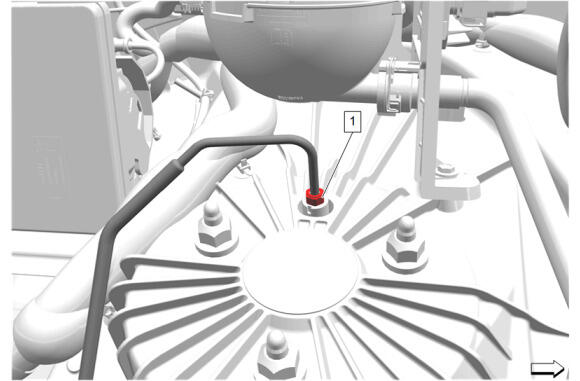

Air Line Nut
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Line Nut | - | - | 5 N.m (44 lb in) | Front Shock Absorber and Spring Removal and Installation |

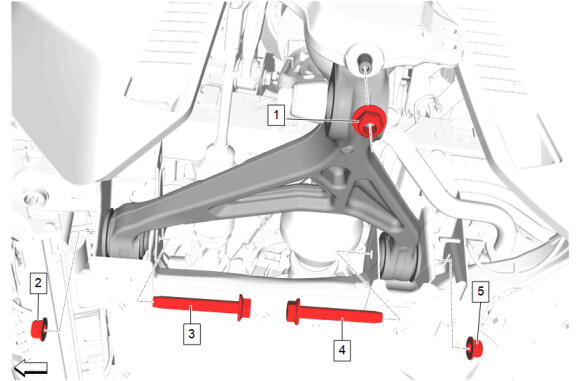

Front Lower Control Arm
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Lower Control Arm Ball Stud Nut | - | - | First Pass: 50 N.m (37 lb ft) Final Pass: 125 - 135 degrees |
Front Lower Control Arm Replacement |
| 2 | Front Lower Control Arm Front Nut | - | - | First Pass: 300 N.m (221 lb ft) Second Pass: 45 - 60 degrees Third Pass: loosen 180 degrees Fourth Pass: 300 N.m (221 lb ft) Final Pass: 45 - 60 degrees |
Front Caster and Camber Adjustment |
| 3 | Front Lower Control Arm Front Bolt | - | - | - | Front Lower Control Arm Replacement |
| 4 | Front Lower Control Arm Rear Bolt | - | - | First Pass: 300 N.m (221 lb ft) Second Pass: 45 - 60 degrees Third Pass: loosen 180 degrees Fourth Pass: 300 N.m (221 lb ft) Final Pass: 45 - 60 degrees |
Front Lower Control Arm Replacement |
| 5 | Front Lower Control Arm Rear Nut | - | - | - | Front Lower Control Arm Replacement |
Front Shock Absorber Nut
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Suspension Shock Absorber Upper Mounting Nut [3x] | - | - | 80 N.m (59 lb ft) | Front Shock Absorber and Spring Removal and Installation |

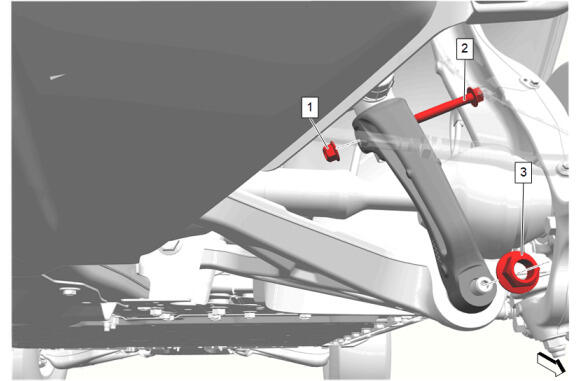

Front Shock Absorber Yoke
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Shock Absorber Yoke Nut | - | - | Firs Pass: 150 N.m (111 lb ft) Final Pass: 60 - 70 degrees |
Front Shock Absorber Yoke Replacement |
| 2 | Front Shock Absorber Yoke Bolt | - | - | - | Front Shock Absorber Yoke Replacement |
| 3 | Front Suspension Strut Yoke Nut | - | - | 370 N.m (273 lb ft) | Front Shock Absorber Yoke Replacement |

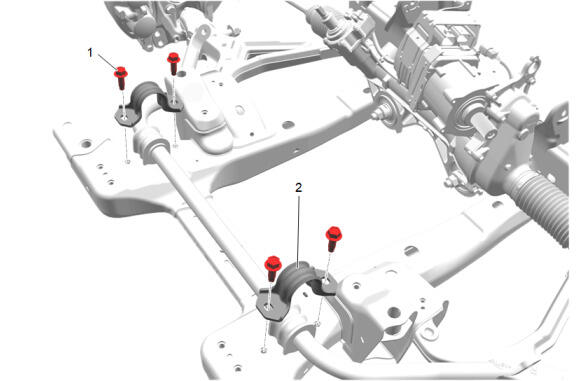

Front Stabilizer Shaft
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Stabilizer Shaft Bolt [4x] | - | - | 100 N.m (74 lb ft) | Stabilizer Shaft Replacement |

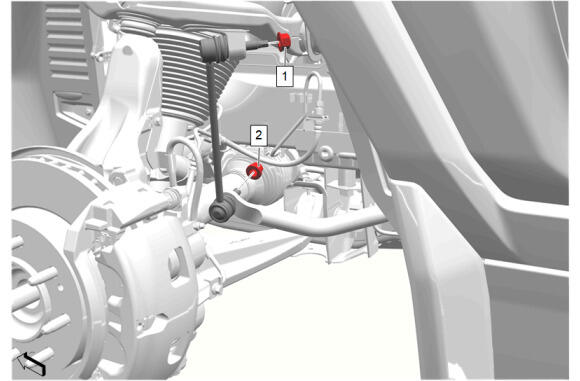

Front Stabilizer Shaft Link
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Stabilizer Shaft Link Nut- Upper | - | - | First Pass: 50 N.m (37 lb ft) Final Pass: 125 - 135 degrees |
Stabilizer Shaft Link Replacement |
| 2 | Front Stabilizer Shaft Link Nut- Lower | - | - | 205 N.m (151 lb ft) | Stabilizer Shaft Link Replacement |

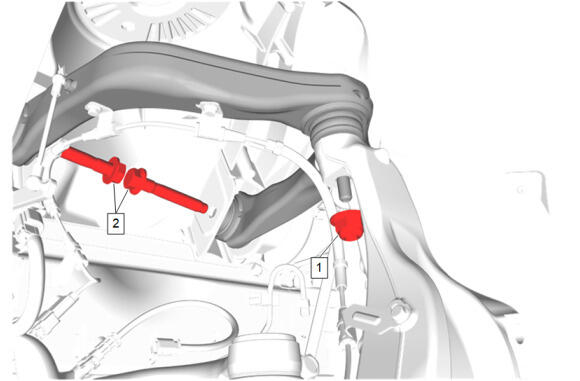

Front Upper Control Arm
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Upper Control Arm Ball Stud Nut | - | - | First Pass: 35 N.m (26 lb ft) Final Pass: 60 - 75 degrees |
Front Upper Control Arm Replacement |
| 2 | Front Upper Control Arm Bolt | - | - | First Pass: 200 N.m (148 lb ft) Final Pass: 45 - 60 degrees |
Front Upper Control Arm Replacement |

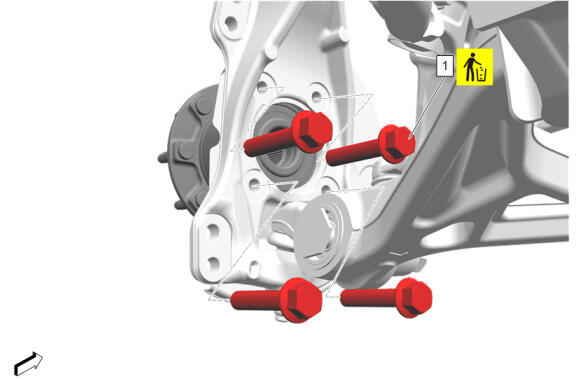

Front Wheel Hub Replacement
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Wheel Hub Bolt [4x] | Yes | - | First Pass: 160 N.m (118 lb ft) Final Pass: 45 - 60 degrees |
Front Wheel Hub Replacement |
