Installation Procedure

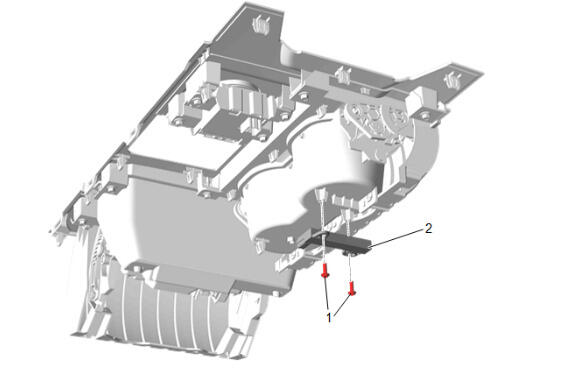

  1. GM5793543

    Low Frequency Console Antenna (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Theft Deterrent Module Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. GM5787236

    Connect the electrical connectors.

  4. Front Floor Console Cup Holder Trim Plate (1) - Install
  5. GM5787899

    Front Floor Console (1) - Install

  6. Connect the electrical connectors to the front floor console (1).
  7. GM5776105

    Front Floor Console Retainer Bolt (2) - Install and tighten [5x] - Fastener Specifications

  8. Front Floor Console Bolt Access Hole Cover (1) - Install
  9. GM5777829

    Front Floor Console Lower Applique (1) - Install

  10. GM5776102

    Front Floor Console Extension Panel (1) - Install

  11. GM5776104

    Front Floor Console Retainer Bolt (2) - Install and tighten [5x] - Fastener Specifications

  12. Front Floor Console Bolt Access Hole Cover (1) - Install
  13. GM6039681

    Rear Floor Mat (1) - Install

  14. GM6029241

    Tire Air Compressor (2) - Install

  15. Tire Repair Sealer and Tire Air Compressor Retainer (1) - Install and hand tighten
  16. GM5776103

    Front Floor Console Lower Applique (1) - Install

  17. GM5776101

    Front Floor Console Extension Panel (1) - Install

  18. GM5776100

    Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications

  19. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
  20. GM5776099

    Install the left and right front floor mat (1).

  21. Return the seat to its original position.
