Installation Procedure

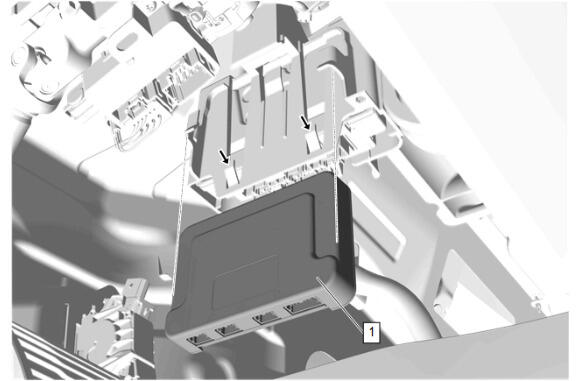

  1. GM5778937

    Automated Driving Mapping Module (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connectors.

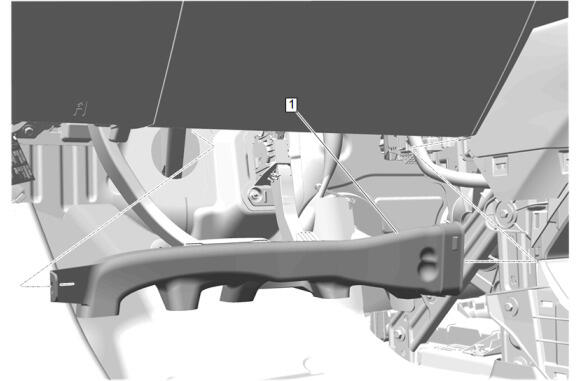

  4. GM5787976

    Floor Front Air Outlet Duct - Left Side (1) - Install

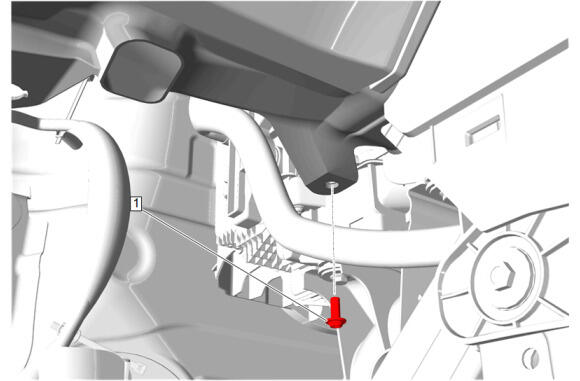

  5. GM5787975
    CAUTION:

    Refer to Fastener Caution .

    Floor Front Air Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications

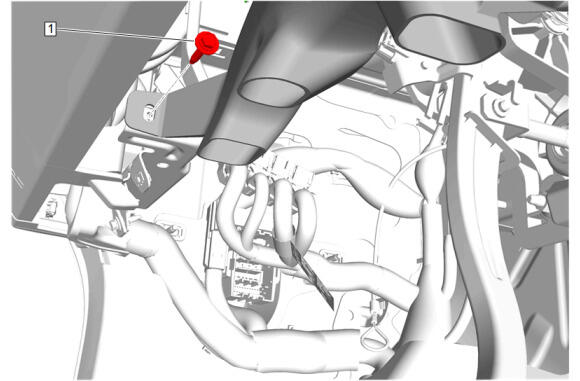

  6. GM5787973

    Floor Front Air Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications

  7. GM5776101

    Front Floor Console Extension Panel - Left Side (1) - Install

  8. GM5776100

    Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications

  9. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install

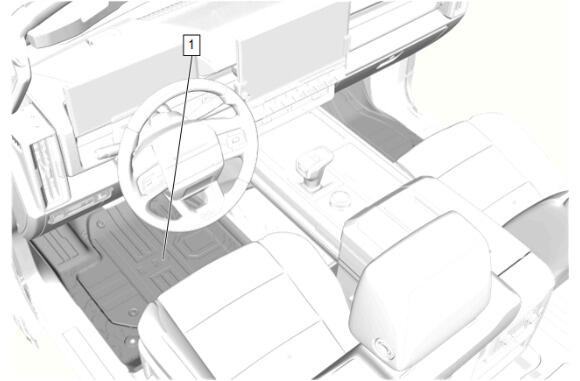

  10. GM5787901

    Install the left front floor mat (1).

  11. Return the seat to its original position.
  12. Perform the necessary programming and setup procedure: Control Module References
