Installation Procedure

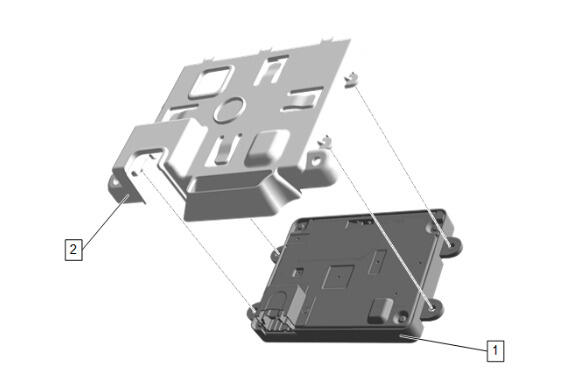

Install the Wireless Charging System Module (1) to the Wireless Charging System Module Bracket (2)

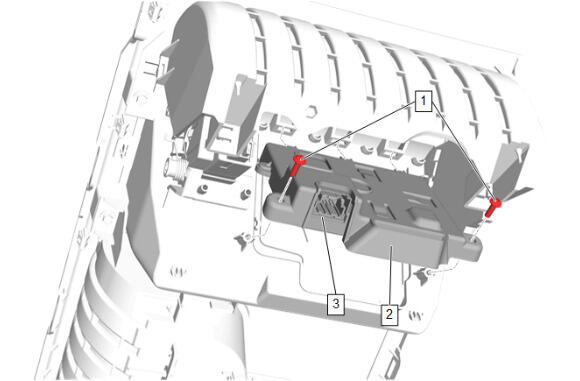

Install the Wireless Charging System Module Bracket (2) and Wireless Charging System Module (3) as an assembly.
- Wireless Charging System Module Bracket Bolt (1) - Install and tighten [x2] Fastener Specifications
Connect the electrical connectors.

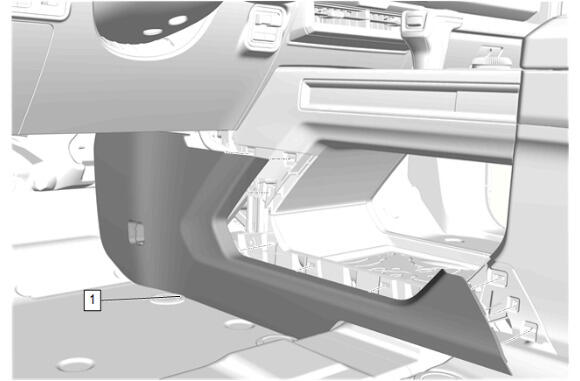

- Front Floor Console Cup Holder Trim Plate (1) - Install

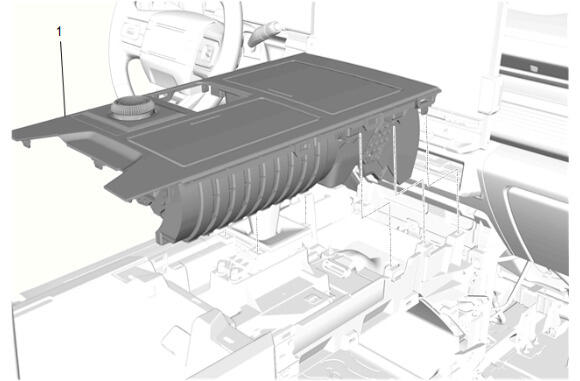

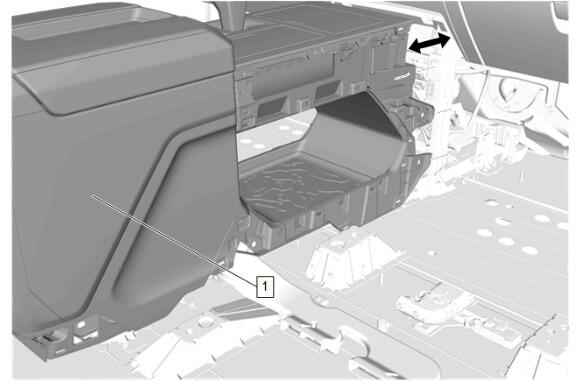

Front Floor Console (1) - Install
- Connect the electrical connectors to the front floor console (1).

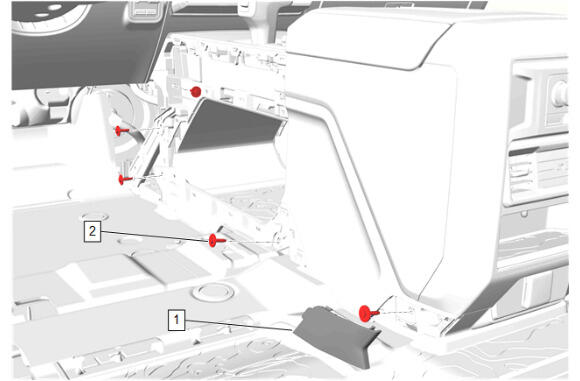

Front Floor Console Retainer Bolt (2) - Install and tighten [5x] - Fastener Specifications

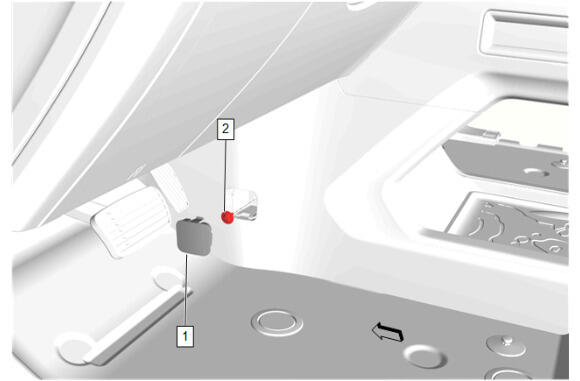

- Front Floor Console Bolt Access Hole Cover (1) - Install

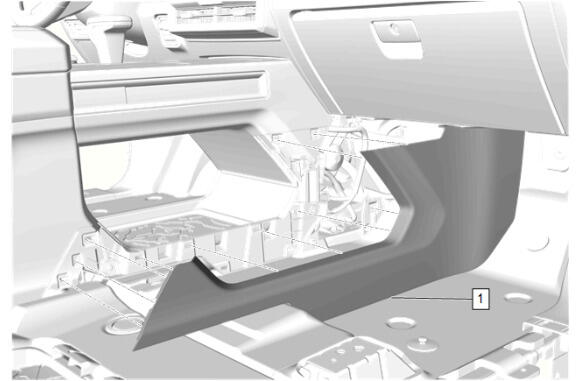

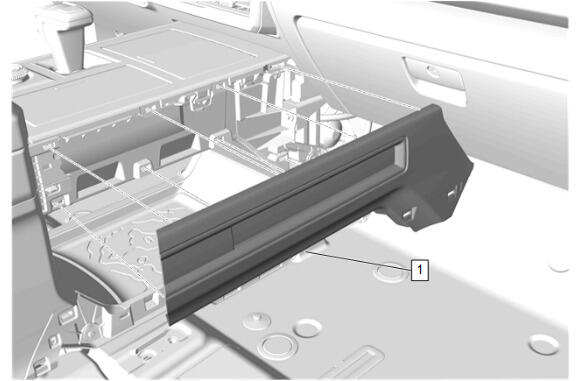

Front Floor Console Lower Applique (1) - Install

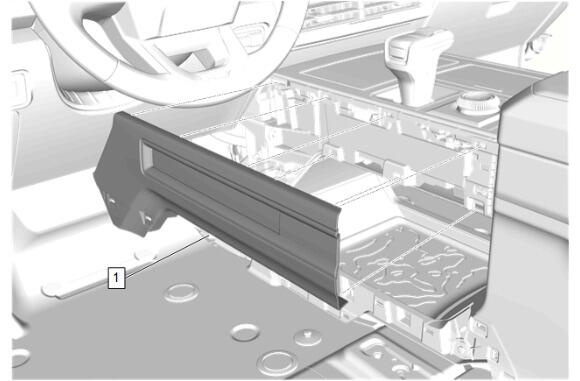

Front Floor Console Extension Panel (1) - Install

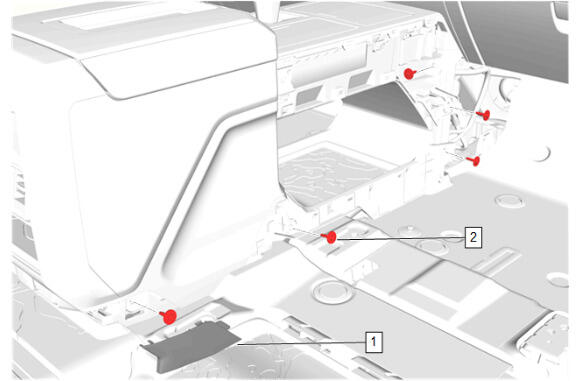

Front Floor Console Retainer Bolt (2) - Install and tighten [5x] - Fastener Specifications
- Front Floor Console Bolt Access Hole Cover (1) - Install
Rear Floor Mat (1) - Install

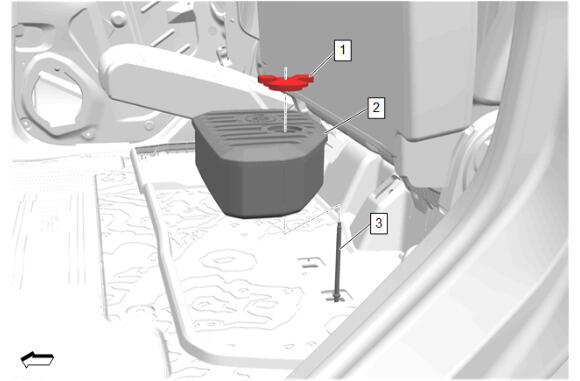

Tire Air Compressor (2) - Install
- Tire Repair Sealer and Tire Air Compressor Retainer (1) - Install and hand tighten
Front Floor Console Lower Applique (1) - Install
Front Floor Console Extension Panel (1) - Install
Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
- Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install

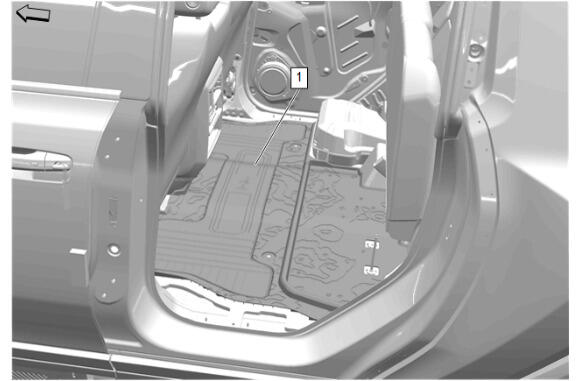

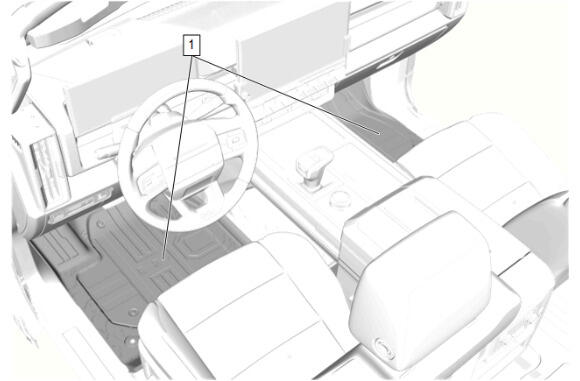

Install the left and right front floor mat (1).
- Return the seat to its original position.
Refer to Fastener Caution .
