Installation Procedure

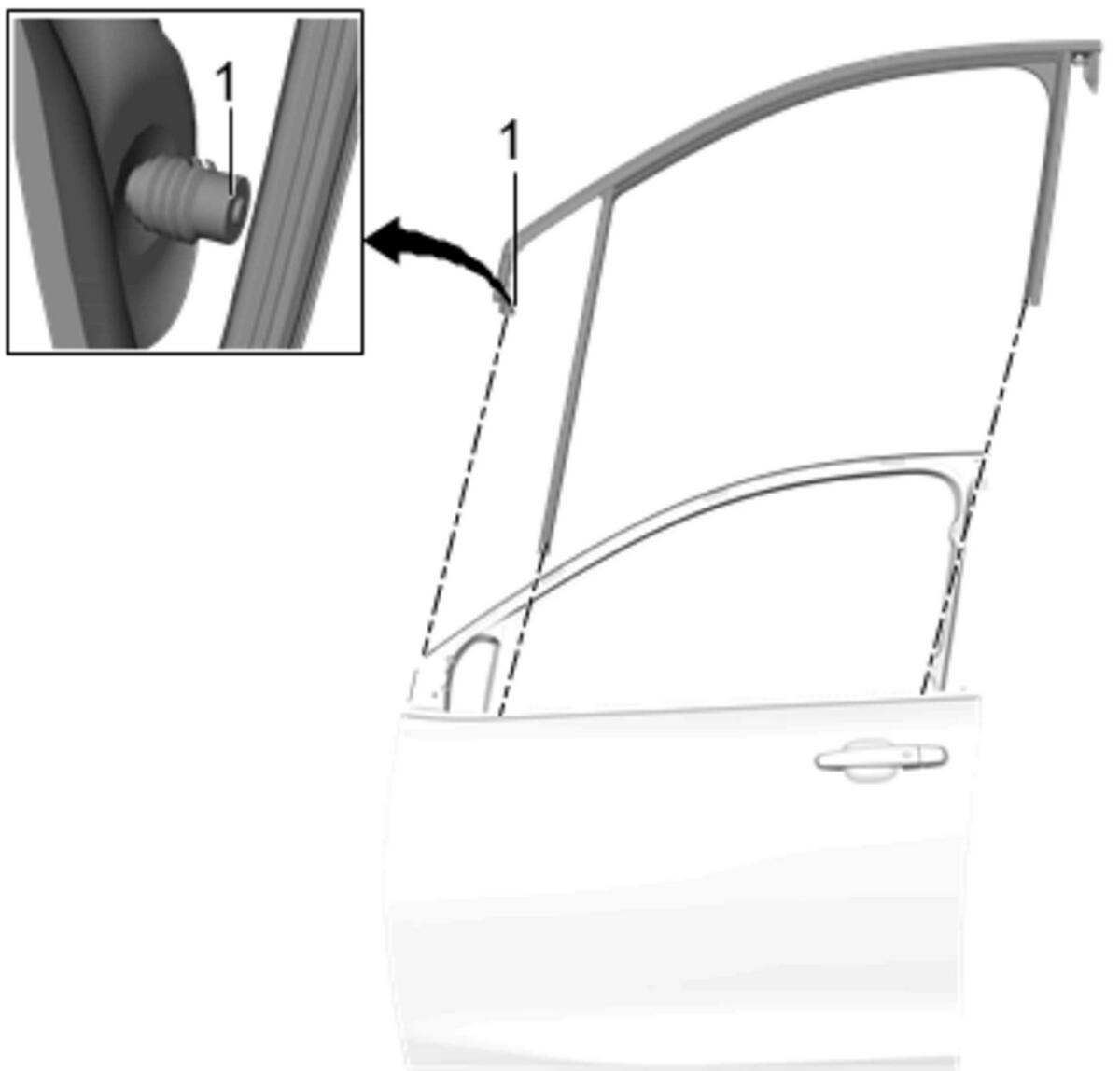

    Fig 1: Front Side Door Window Weatherstrip
    GM4579310Courtesy of GENERAL MOTORS COMPANY
  1. Install Front Side Door Window Weatherstrip (1)

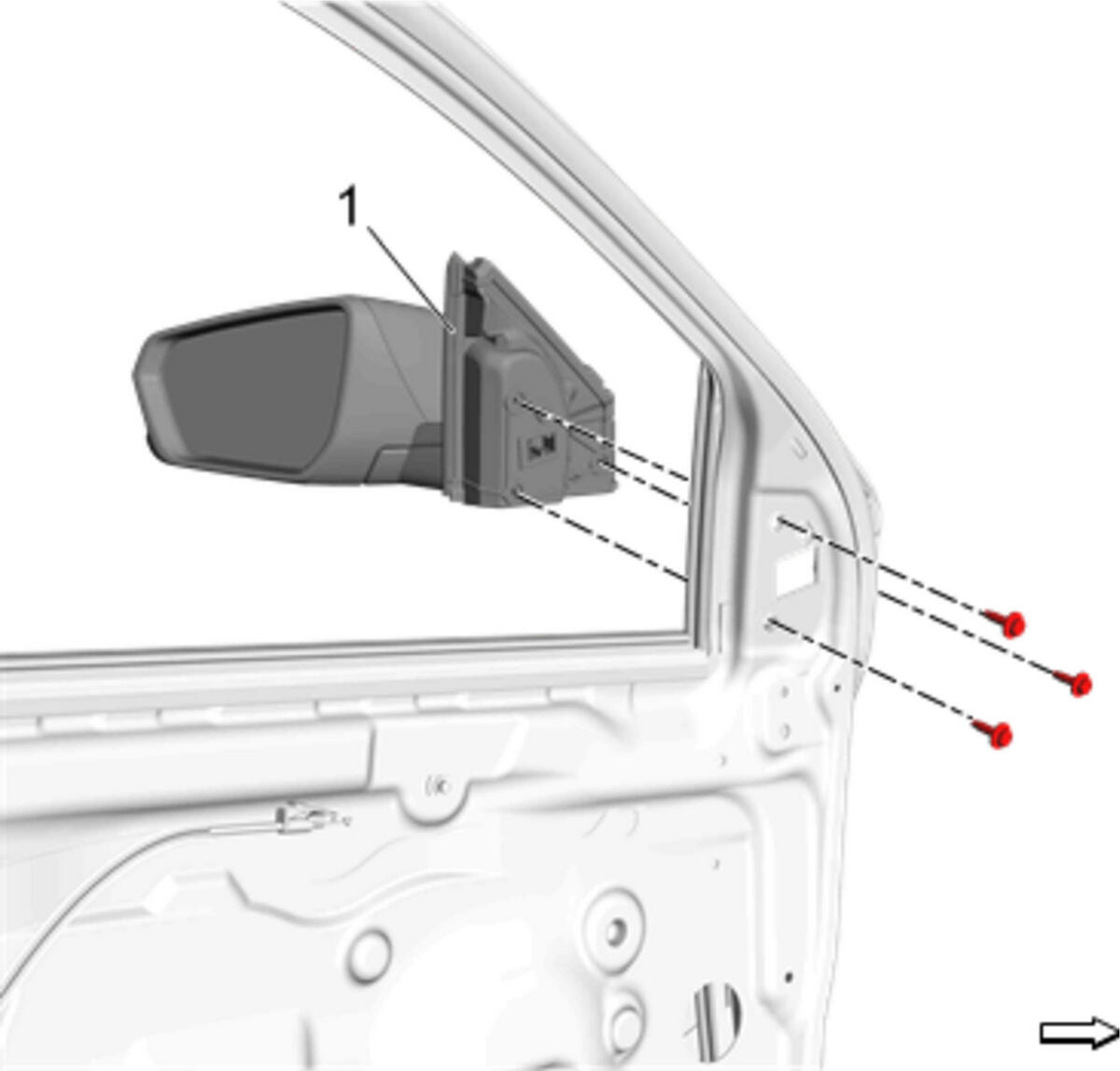

    2. Fig 2: Outside Rearview Mirror
    GM4579241Courtesy of GENERAL MOTORS COMPANY
  2. Install Outside Rearview Mirror (1). Refer to Outside Rearview Mirror Replacement
    3. Fig 3: Front Side Door Window
    GM4574235Courtesy of GENERAL MOTORS COMPANY
  3. Install Front Side Door Window (1). Refer to Front Side Door Window Replacement

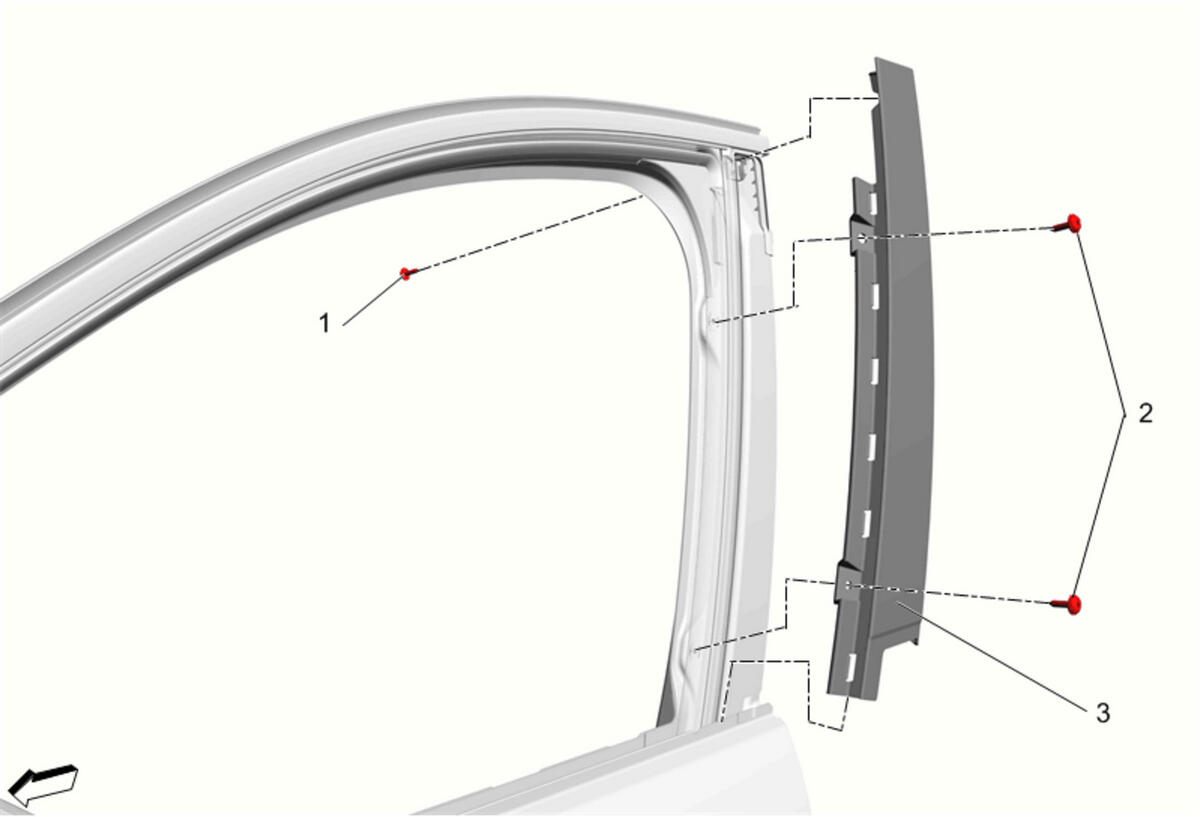

    4. Fig 4: Front Side Door Window Frame Rear Applique And Screws
    GM4576074Courtesy of GENERAL MOTORS COMPANY
  4. Install Front Side Door Window Frame Rear Applique (3). Refer to Front Side Door Window Frame Rear Applique Replacement
  5. Ensure the window system operates properly.
