Outside Rearview Mirror Replacement

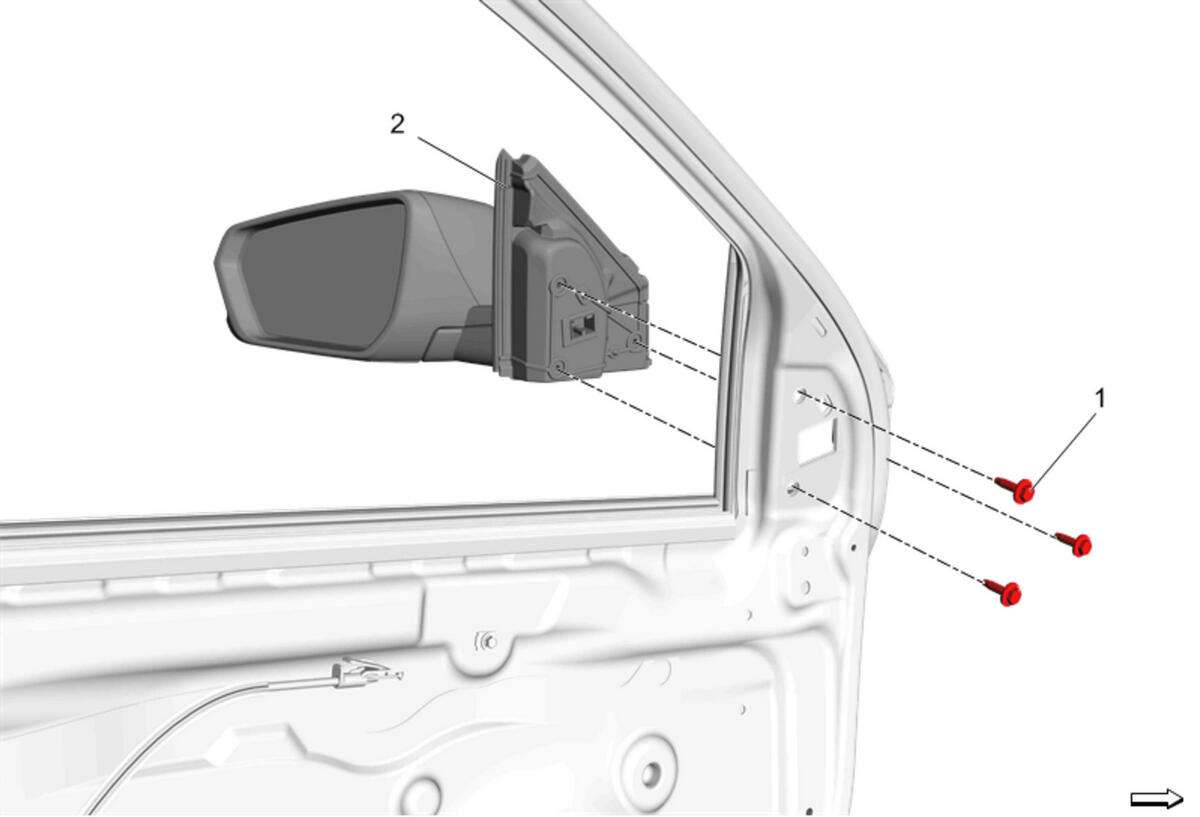

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Side Door Window Garnish Molding Replacement (Equinox)Front Side Door Window Garnish Molding Replacement (Terrain) |
|
| 1 | Outside Rearview Mirror Fastener [3x]
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 9 N.m (80 lb in) |
| 2 | Outside Rearview Mirror
NOTE:
Inspect the outside rearview mirror for proper operation before installing the door trim. |
