Steering Wheel Components
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

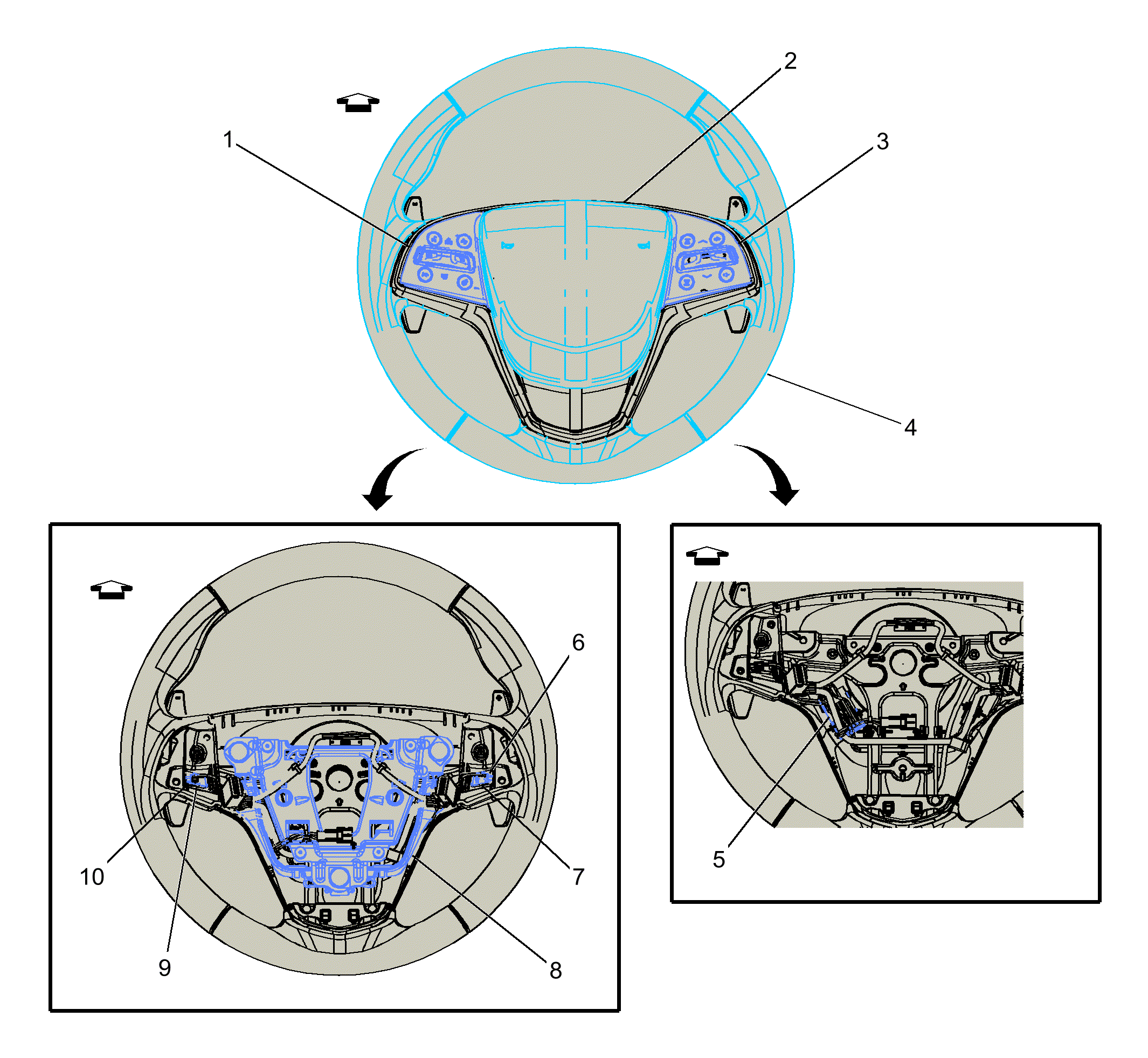

Steering Wheel Components
| Items |
|---|
| 1: S70L Steering Wheel Controls Switch - Left S70L Steering Wheel Controls Switch - Left |
| 2: F107 Steering Wheel Air Bag F107 Steering Wheel Air Bag X1F107 Steering Wheel Air Bag X2 |
| 3: S70R Steering Wheel Controls Switch - Right S70R Steering Wheel Controls Switch - Right |
| 4: E15 Steering Wheel Heater (UVD) E15 Steering Wheel Heater |
| 5: K32 Steering Wheel Heating Control Module (UVD) K32 Steering Wheel Heating Control Module (UVD) |
| 6: S2R Transmission Manual Shift Switch - Right (KB7) S2R Transmission Manual Shift Switch - Right (KB7) |
| 7: S147R Manual Transmission Shift Anticipate Switch - Right (MG9) S147R Manual Transmission Shift Anticipate Switch - Right (MG9) |
| 8: S33 Horn Switch S33 Horn Switch X1S33 Horn Switch X2 |
| 9: S2L Transmission Manual Shift Switch - Left (KB7) S2L Transmission Manual Shift Switch - Left (KB7) |
| 10: S147L Manual Transmission Shift Anticipate Switch - Left (MG9) S147L Manual Transmission Shift Anticipate Switch - Left (MG9) |
