S2R Transmission Manual Shift Switch - Right (KB7)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
|
|

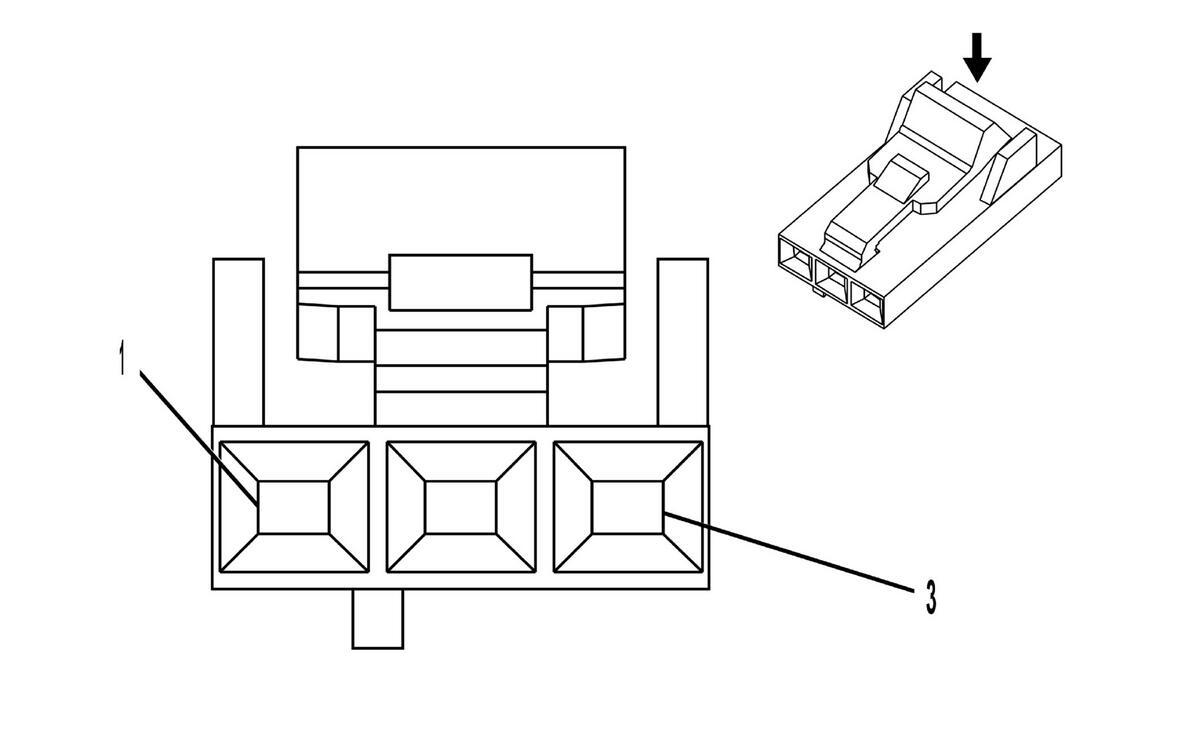

Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 104257-2
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 0.64 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (LT-BU) |
J-38125-24 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT/YE |
5526 |
Tap Up/Tap Down Switch Signal |
I |
- |
| 2 |
0.5 |
BK |
1350 |
Ground |
I |
- |
| 3 |
0.5 |
VT/YE |
5525 |
Tap Up/Tap Down Enable Signal |
I |
- |
