Instrument Panel Components - Left Side ((KL9+M3L)/TR6/UV6)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

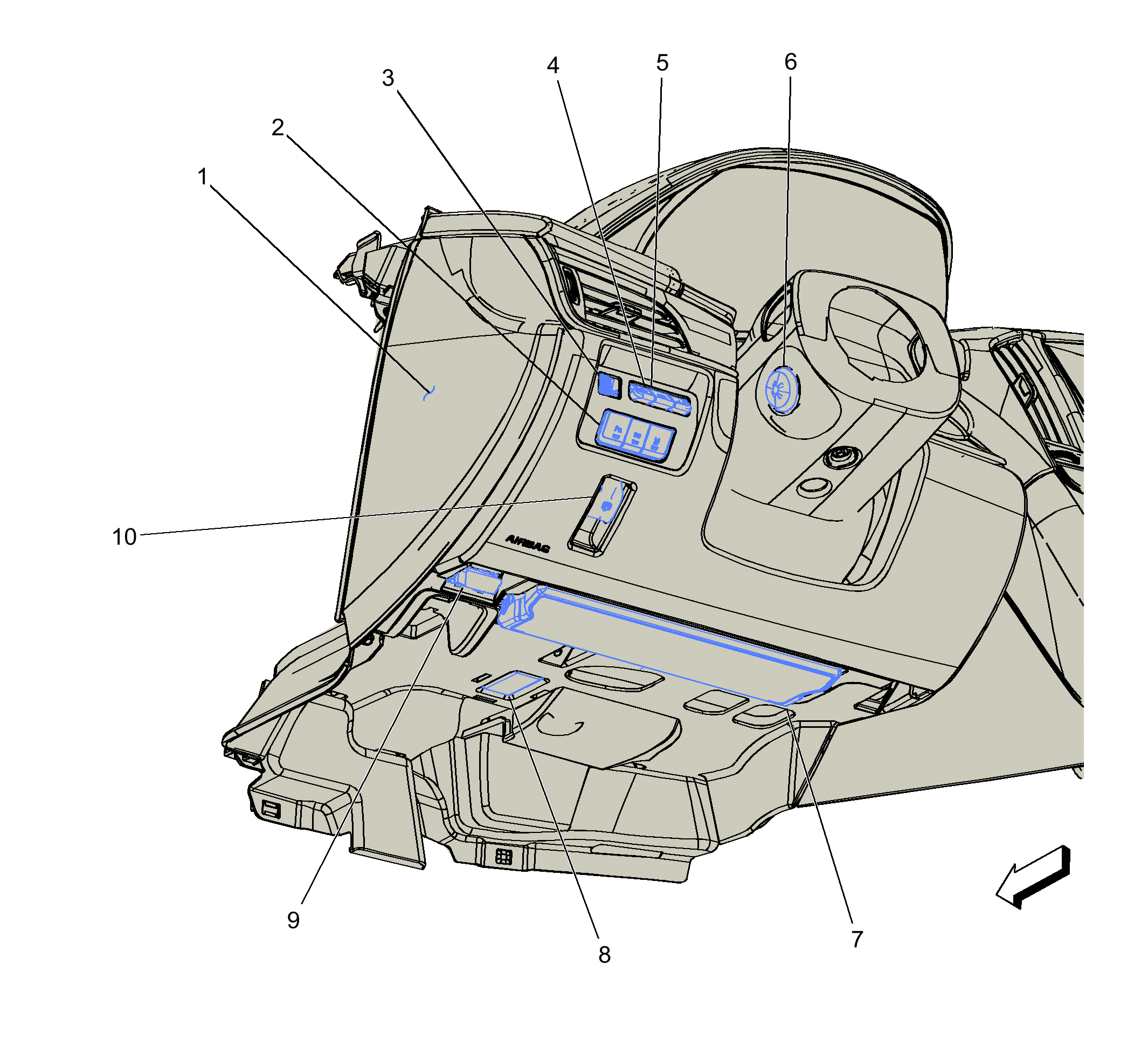

Instrument Panel Components - Left Side ((KL9+M3L)/TR6/UV6)
| Items |
|---|
| 1: X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel X1 |
| 2: S48A Multifunction Switch - Instrument Panel (UD5/UD7) S48A Multifunction Switch - Instrument Panel (-TR6)S48A Multifunction Switch - Instrument Panel (TR6) |
| 3: S36 Instrument Panel Dimmer Switch S36 Instrument Panel Dimmer Switch |
| 4: S27 Head-Up Display Switch (UV6) S27 Head-Up Display Switch |
| 5: S42 Headlamp Leveling Switch (TR6) S42 Headlamp Leveling Switch |
| 6: S71 Steering Column Tilt and Telescope Switch (N38) S71 Steering Column Tilt and Telescope Switch |
| 7: F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver (Coupe)F114D Knee Air Bag - Driver (Sedan+(UGN/UVZ)) |
| 8: E8J Instrument Panel Courtesy Lamp - Left E8J Instrument Panel Courtesy Lamp - Left |
| 9: X84 Data Link Connector X84 Data Link Connector |
| 10: S91 Park Brake Control Switch S91 Park Brake Control Switch (-M3L-MG9)S91 Park Brake Control Switch (M3L/MG9) |
