S27 Head-Up Display Switch
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
|
|

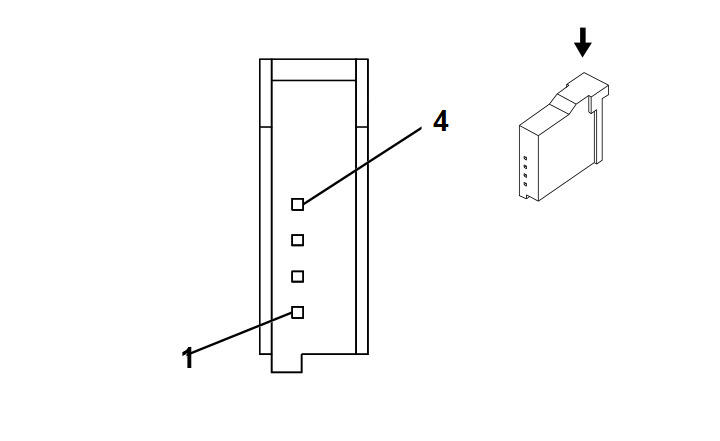

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13579144
- Service Connector: 13585622
- Description: 4-Way F 0.64 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE |
6817 |
LED Backlight Dimming Control |
I |
UV6 |
| 2 |
0.5 |
BK |
1350 |
Ground |
I |
UV6 |
| 3 |
0.13 |
BK |
5699 |
Head Up Display Switch Low Reference |
I |
UV6 |
| 4 |
0.13 |
YE |
622 |
Head Up Display Switch Signal |
I |
UV6 |
