Audio and Video Module Cable Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 GMC Sierra 3500 HD, 2016 GMC Sierra 2500 HD, 2016 GMC Sierra 1500, 2016 Chevrolet Silverado 3500 HD, and 2016 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

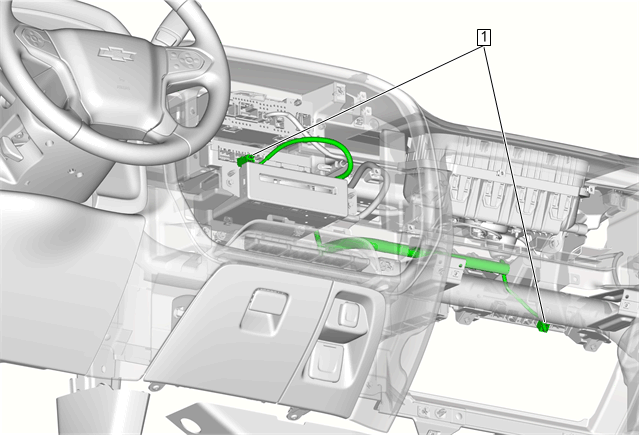

Fig 1: Audio and Video Module Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Upper Compartment Replacement Radio Control Assembly Replacement
1	Audio and Video Module Cable Procedure Disconnect the electrical connectors. If the cable is taped into the wiring harness, cut the ends off the old cable and route the new cable as close to the old one as possible. Use tie straps to secure the new cable.

Callout

Component Name

Preliminary Procedure

Instrument Panel Upper Compartment Replacement
Radio Control Assembly Replacement

Audio and Video Module Cable

Procedure

Disconnect the electrical connectors.
If the cable is taped into the wiring harness, cut the ends off the old cable and route the new cable as close to the old one as possible. Use tie straps to secure the new cable.
