Radio Control Assembly Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 GMC Sierra 3500 HD, 2016 GMC Sierra 2500 HD, 2016 GMC Sierra 1500, 2016 Chevrolet Silverado 3500 HD, and 2016 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

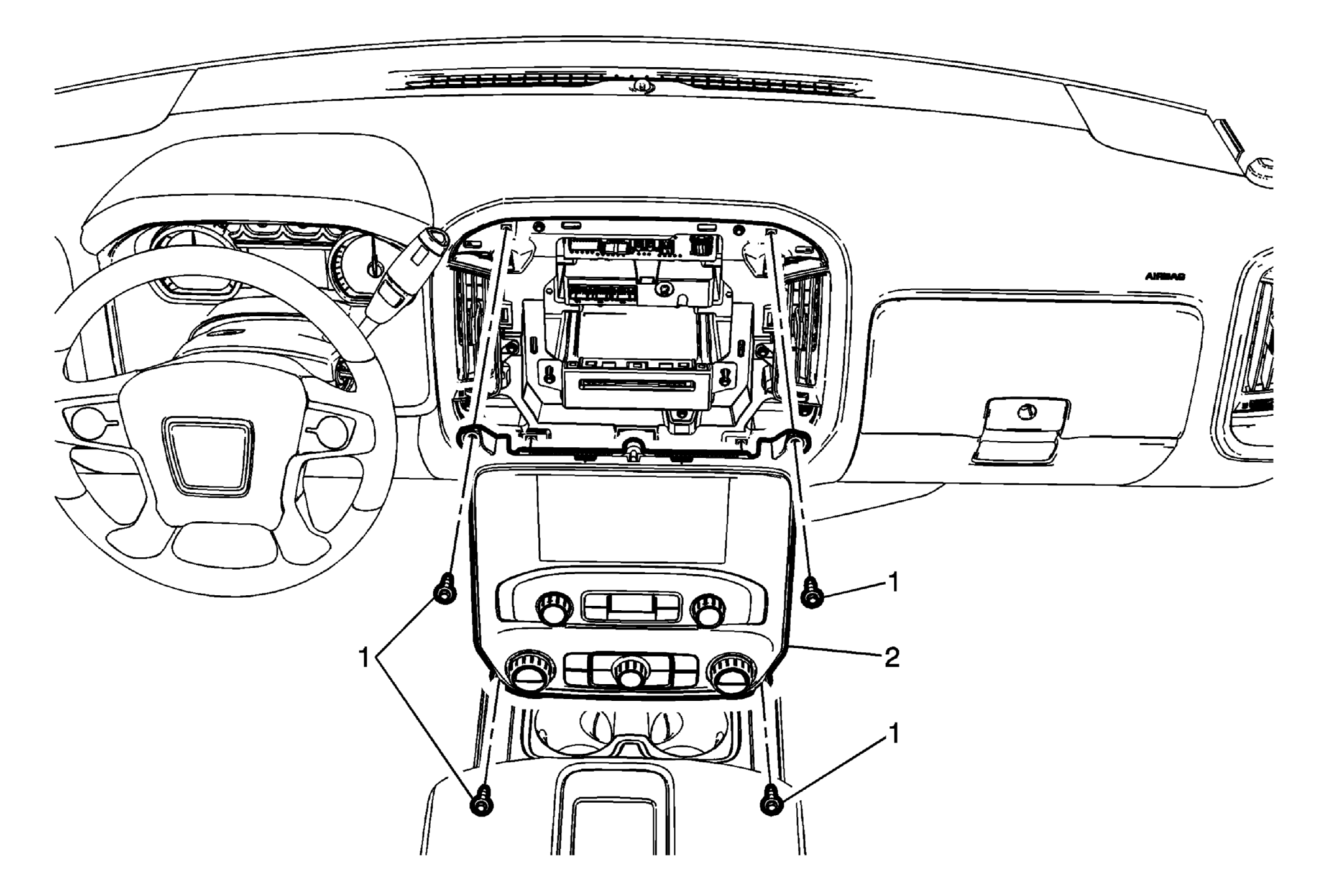

Fig 1: Radio Control Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel accessory bezel. Refer to Instrument Panel Accessory Bezel Replacement .
1	Radio Control Fastener (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Radio Control Assembly Procedure Disconnect the electrical connections. When replacing the radio control assembly, transfer all necessary components.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel accessory bezel. Refer to Instrument Panel Accessory Bezel Replacement .

Radio Control Fastener (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Radio Control Assembly

Procedure

Disconnect the electrical connections.
When replacing the radio control assembly, transfer all necessary components.
