Liftgate Alignment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

Interior Trim Remover

Inspection

NOTE: Removal steps in this procedure may contain installation details.

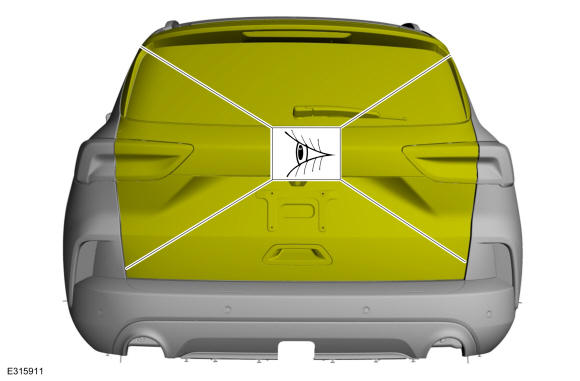

Inspect the body-to-liftgate door dimensions.

Courtesy of FORD MOTOR COMPANY

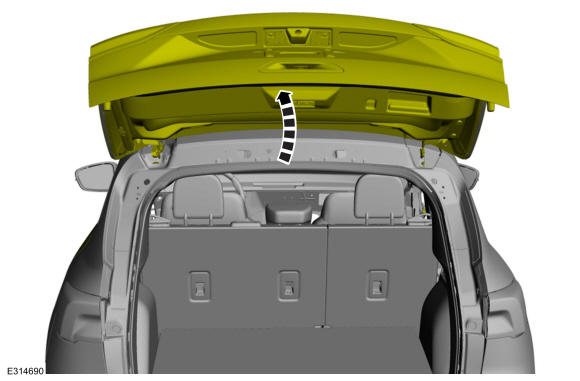

Open the liftgate.

Courtesy of FORD MOTOR COMPANY

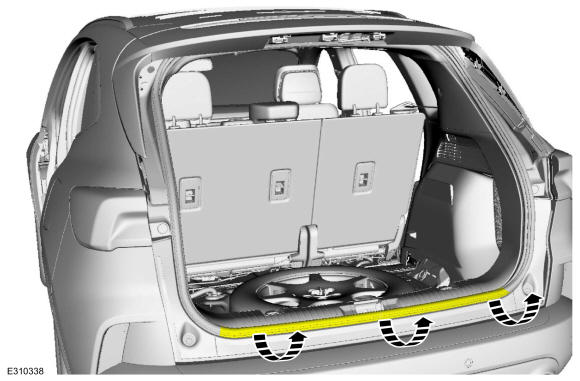

Position the liftgate opening weather strip aside.

Courtesy of FORD MOTOR COMPANY

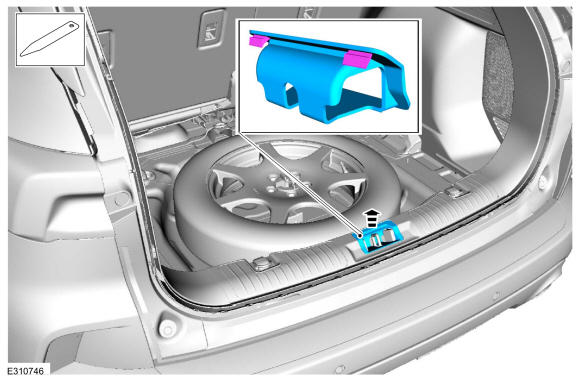

Release the tabs and remove the liftgate striker cover.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

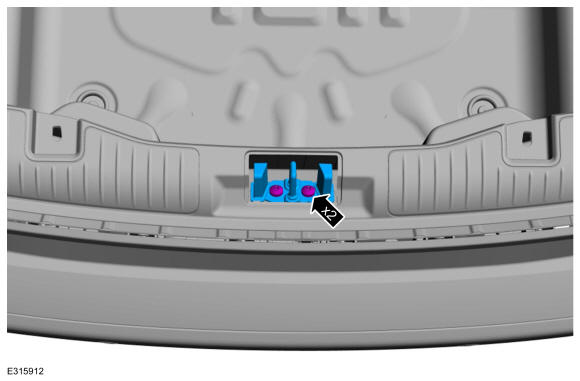

Remove the fasteners and liftgate striker.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

Liftgate left and right, up and down alignment

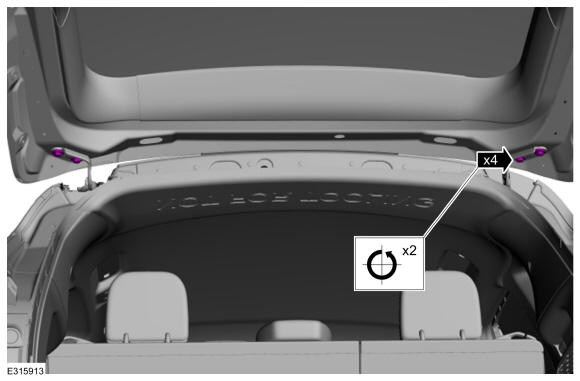

Loosen the bolts to permit movement of the liftgate.
Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

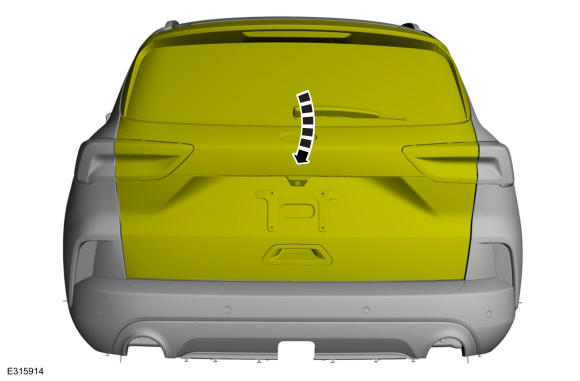

Carefully close the liftgate.

Courtesy of FORD MOTOR COMPANY

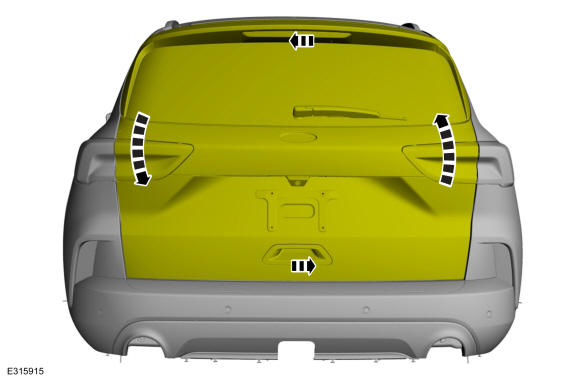

Adjust the liftgate as required.

Courtesy of FORD MOTOR COMPANY
Carefully open the liftgate.

Courtesy of FORD MOTOR COMPANY

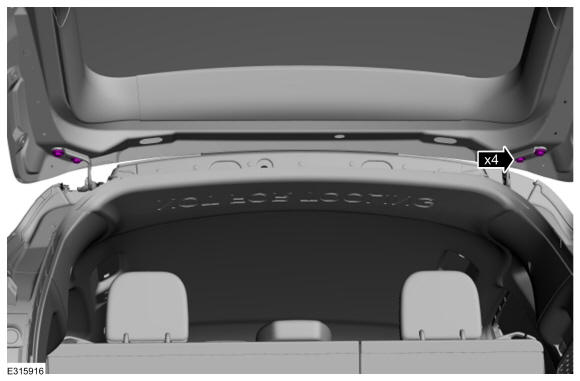

Tighten the fasteners.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

Liftgate in and out alignment

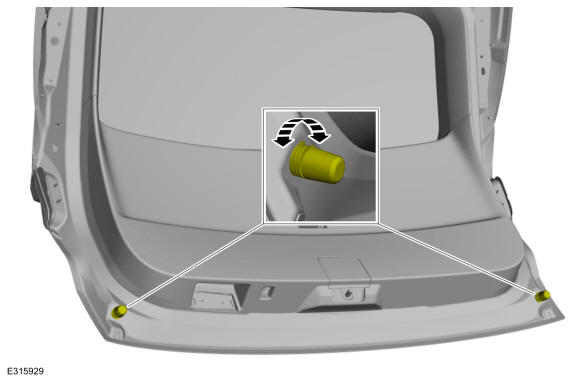

Adjust the stops.

Courtesy of FORD MOTOR COMPANY
Remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel

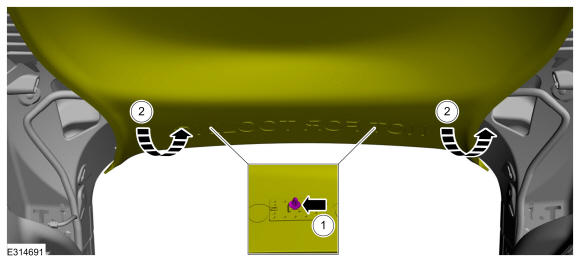

1. Release the clips.
2. Lower the rear headliner.
Courtesy of FORD MOTOR COMPANY

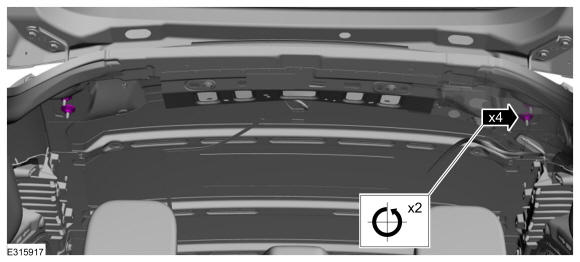

Loosen the bolts to permit movement of the liftgate.
Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

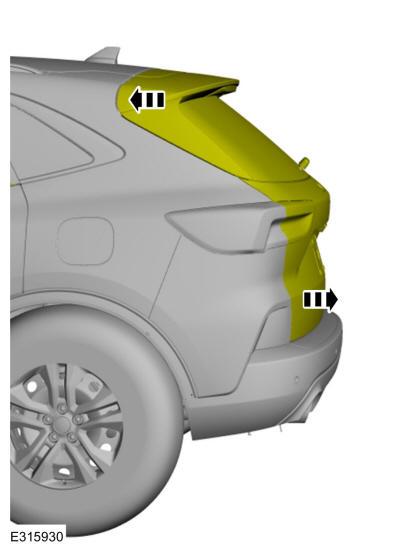

Adjust the liftgate as required.

Courtesy of FORD MOTOR COMPANY

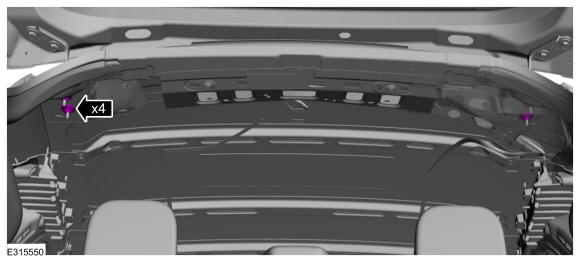

Tighten the fasteners.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

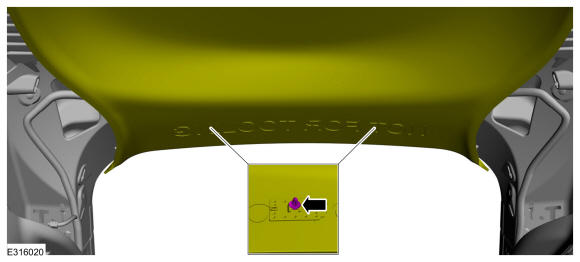

1. Attach the clips.
2. Position back the rear headliner.
Courtesy of FORD MOTOR COMPANY
Install the C-pillar trim panel. Refer to: C-Pillar Trim Panel
All alignments
Inspect the liftgate dimentions.

Courtesy of FORD MOTOR COMPANY
If equipped with power liftgate, carry out the power liftgate initialization. Refer to: Power Liftgate Initialization .
