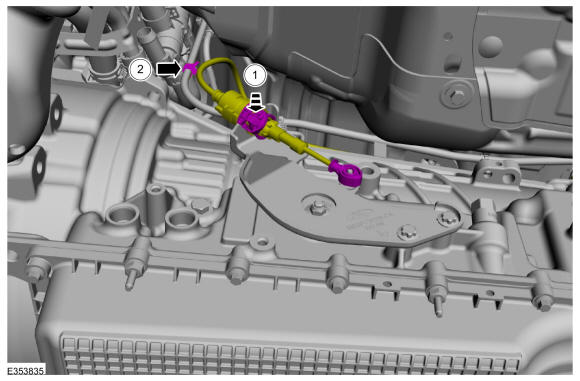

Selector Lever Cable: Installation

1. Position the selector lever cable and install the bolt.
  Torque: 53 lb.in (6 Nm)
2. Connect the selector lever cable.
Courtesy of FORD MOTOR COMPANY

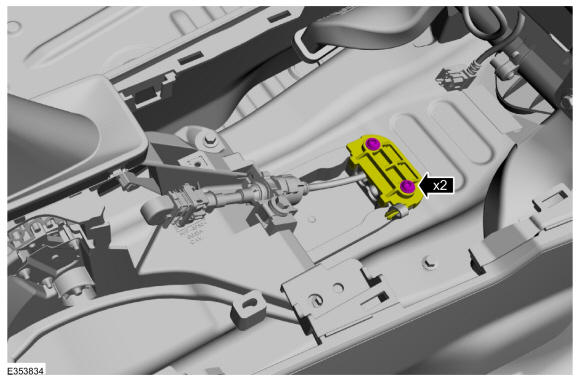

Close the grommet box cap and install the bolts.
Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Take extra care when handling selector lever cable.

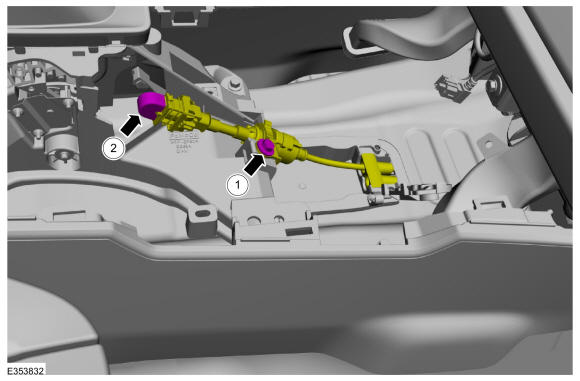

1. Connect the selector lever cable to the bracket.
2. Connect the selector lever cable retainer.
Courtesy of FORD MOTOR COMPANY
Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment .
Install the console reinforcement bracket and bolts.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the floor console upper trim panel electrical connectors.

Courtesy of FORD MOTOR COMPANY
Feed the shift boot through the panel opening and install the floor console upper trim panel.

Courtesy of FORD MOTOR COMPANY
Attach the selector lever boot retainer tabs to the trim ring.

Courtesy of FORD MOTOR COMPANY

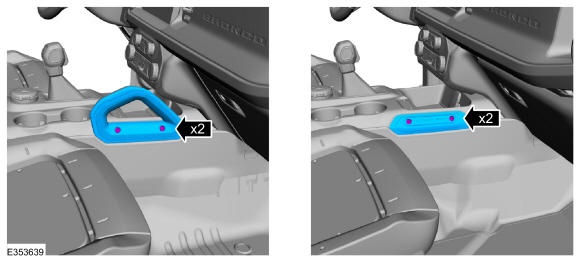

Install the handle or trim plate and bolts.
Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY
Install the lower instrument trim panel.

Courtesy of FORD MOTOR COMPANY
