Selector Lever Cable Adjustment

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Adjustment

1. With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting .

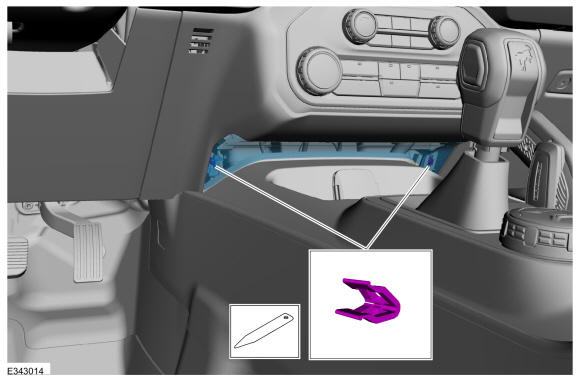

2. Release the retainers and remove the lower instrument trim panel. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

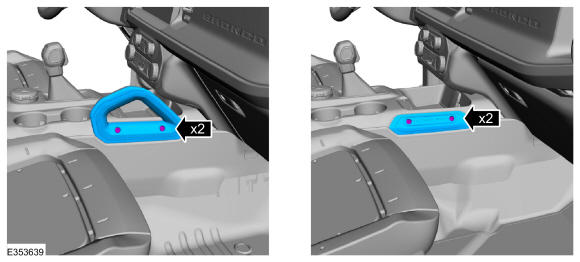

3. NOTE: Vehicles not equipped with a handle are equipped with a trim plate. The bolts and trim plate must be removed.

   Remove the bolts and the handle or trim plate.

   Courtesy of FORD MOTOR COMPANY

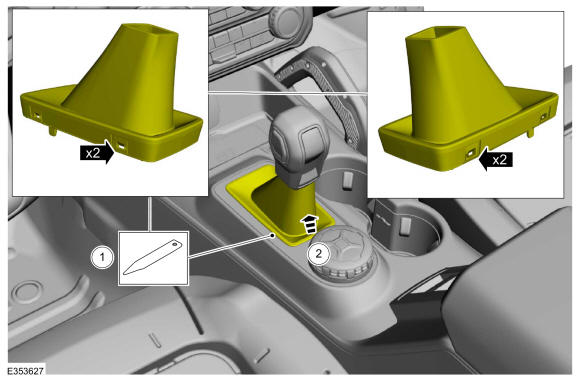

4. 1. Insert a trim tool between the selector lever boot and the trim ring to release the retainer tabs from the trim ring. Use the General Equipment: Interior Trim Remover
   2. lift the selector lever boot upwards.

   Courtesy of FORD MOTOR COMPANY

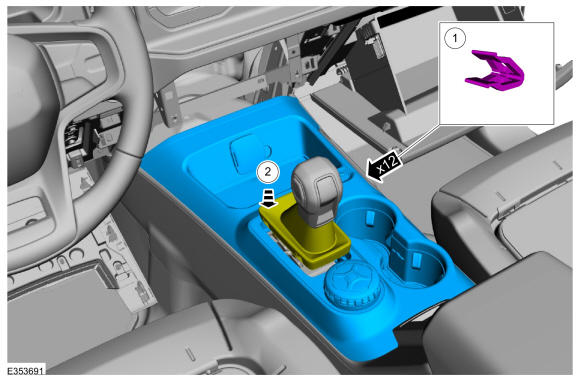

5. 1. Release the retainers and position the floor console upper trim panel up.
   2. Feed the shift boot through the panel opening.

   Courtesy of FORD MOTOR COMPANY

6. Disconnect the electrical connectors and remove the floor console upper trim panel.

   Courtesy of FORD MOTOR COMPANY

7. Remove the bolts and the console reinforcement bracket.

   Courtesy of FORD MOTOR COMPANY

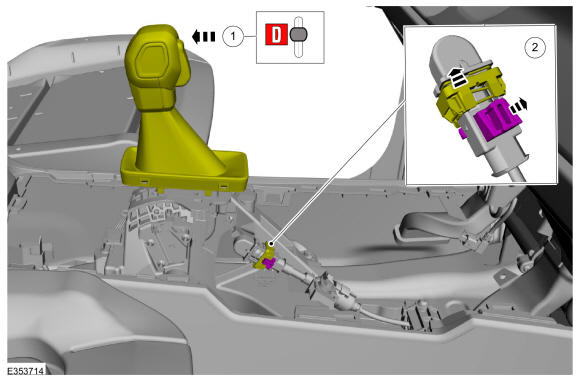

8. 1. Place the selector lever in D.
   2. Unlock the selector lever cable adjuster.

   Courtesy of FORD MOTOR COMPANY

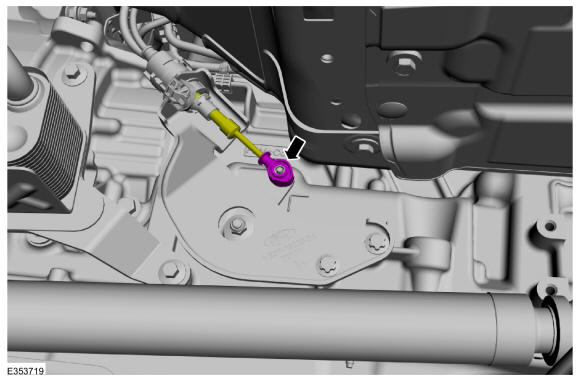

9. Disconnect the selector lever cable from the transmission manual lever.

   Courtesy of FORD MOTOR COMPANY

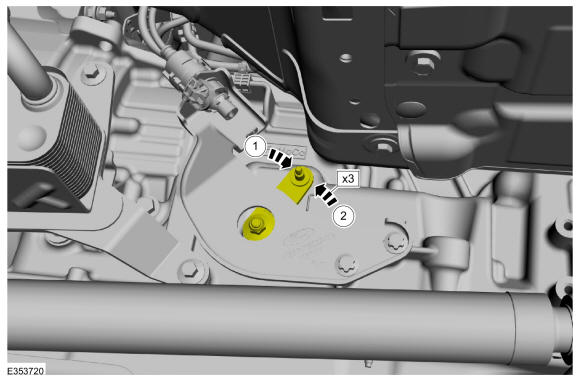

10. Position the manual lever in D.
    1. Rotate the manual lever clockwise until it stops.
    2. Rotate the manual lever counterclockwise 3 detents.

    Courtesy of FORD MOTOR COMPANY

11. Connect the selector lever cable to the transmission manual lever.

    Courtesy of FORD MOTOR COMPANY

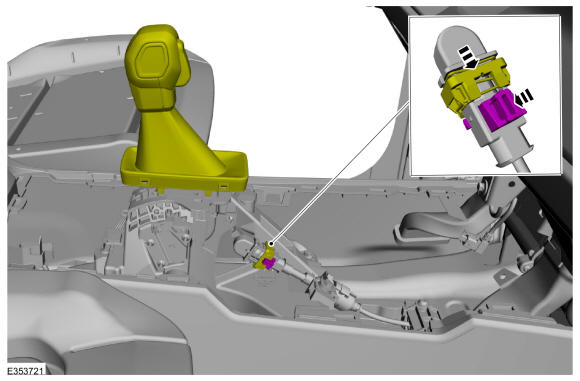

12. NOTE: Ensure that the selector lever cable adjustment mechanism is locked.

    Lock the selector lever cable adjuster.

    Courtesy of FORD MOTOR COMPANY

13. Install the console reinforcement bracket and bolts.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

14. Connect the floor console upper trim panel electrical connectors.

    Courtesy of FORD MOTOR COMPANY

15. Feed the shift boot through the panel opening and install the floor console upper trim panel.

    Courtesy of FORD MOTOR COMPANY

16. Attach the selector lever boot retainer tabs to the trim ring.

    Courtesy of FORD MOTOR COMPANY

17. Install the handle or trim plate and bolts.

    Torque: 48 lb.in (5.4 Nm)

    Courtesy of FORD MOTOR COMPANY

18. Install the lower instrument trim panel.

    Courtesy of FORD MOTOR COMPANY

19. Verify the vehicle starts in P and N only and that the reverse lamps illuminate in R.
