Selector Lever Assembly: Installation

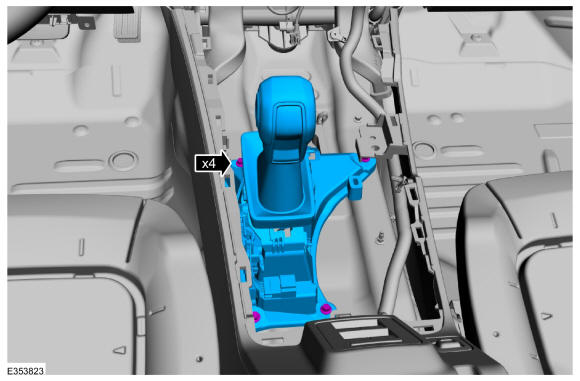

Install the selector lever assembly and bolts.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

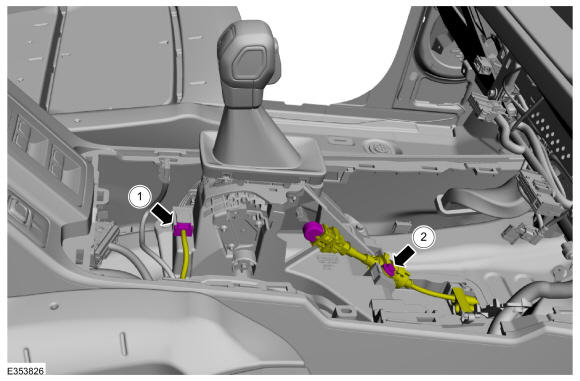

1. Connect the electrical connector.
2. Install the selector lever cable bolt.
  Torque: 53 lb.in (6 Nm)
Courtesy of FORD MOTOR COMPANY
Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment .

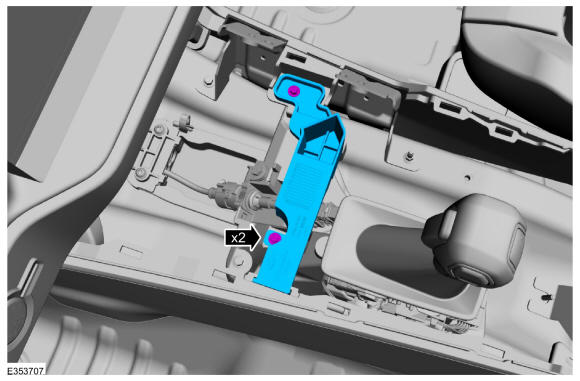

Install the console reinforcement bracket and bolts.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

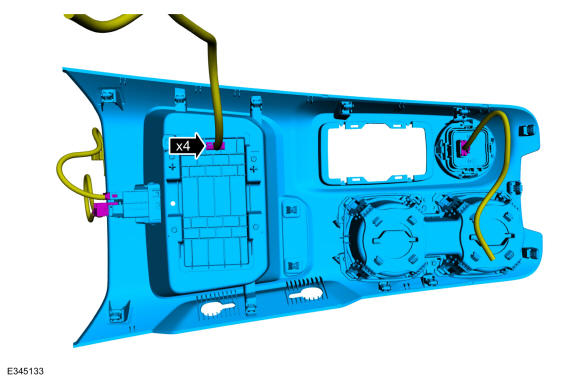

Connect the floor console upper trim panel electrical connectors.

Courtesy of FORD MOTOR COMPANY

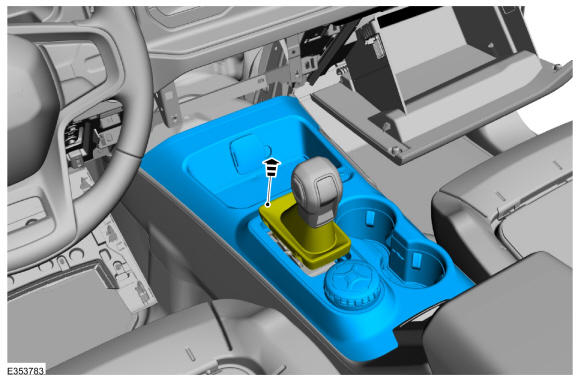

Feed the shift boot through the panel opening and install the floor console upper trim panel.

Courtesy of FORD MOTOR COMPANY

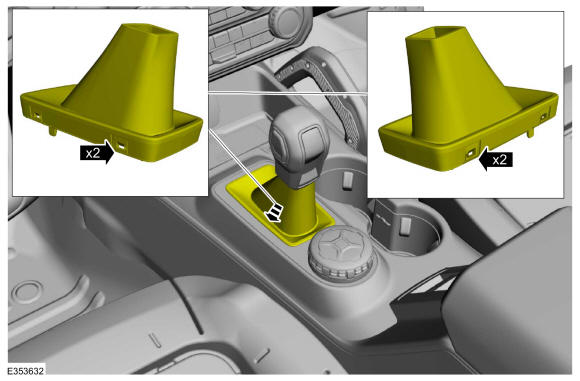

Attach the selector lever boot retainer tabs to the trim ring.

Courtesy of FORD MOTOR COMPANY

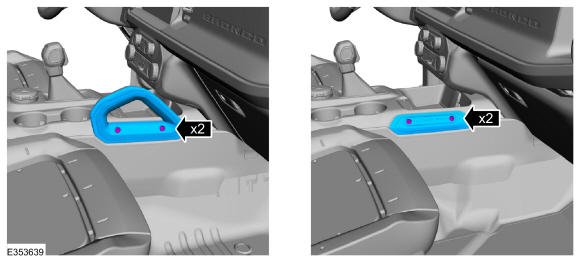

Install the handle or trim plate and bolts.
Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

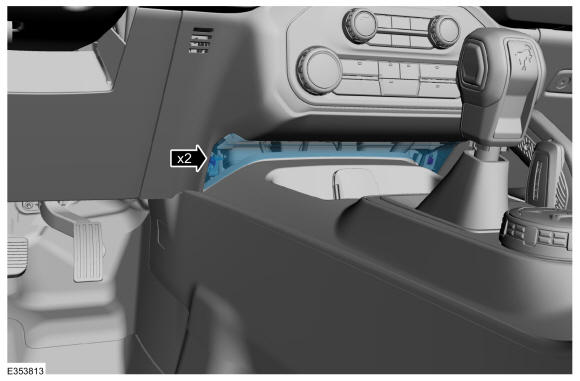

Install the lower instrument trim panel.

Courtesy of FORD MOTOR COMPANY
