Axle Assembly: Installation

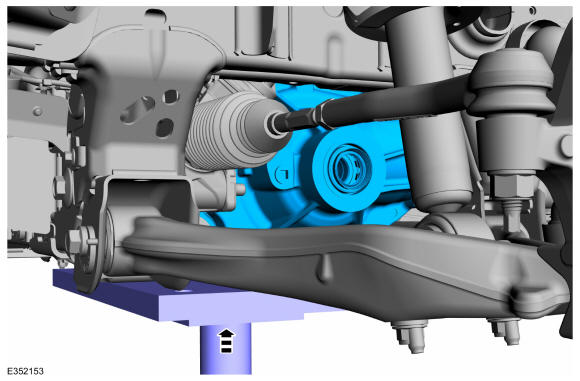

Using the transmission jack, position the front axle assembly. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new nuts and bolts are installed.

NOTE: Only tighten the bolt finger tight at this stage.

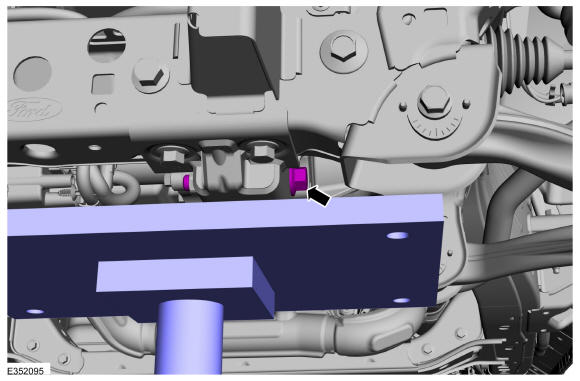

Install the new front axle cover bushing bolt. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new bolts are installed.

NOTE: Only tighten bolt finger tight at this stage.

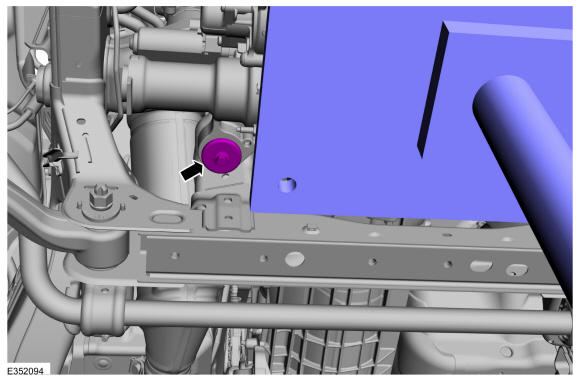

Install the new front axle tube bushing support bracket bolt and lower the transmission jack. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY

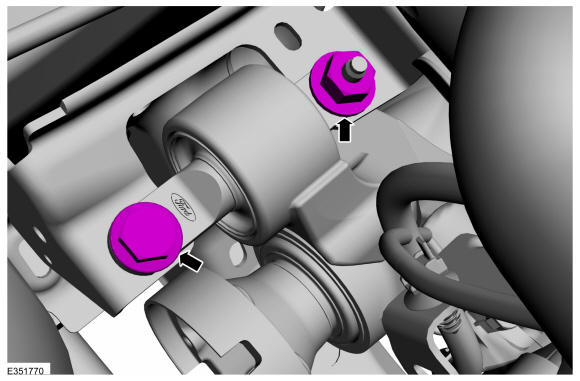

NOTE: Make sure that new nut and bolt is installed.

NOTE: Only tighten nut and bolt finger tight at this stage.

Install the new upper mounting bracket-to-frame nut and bolt.

Courtesy of FORD MOTOR COMPANY

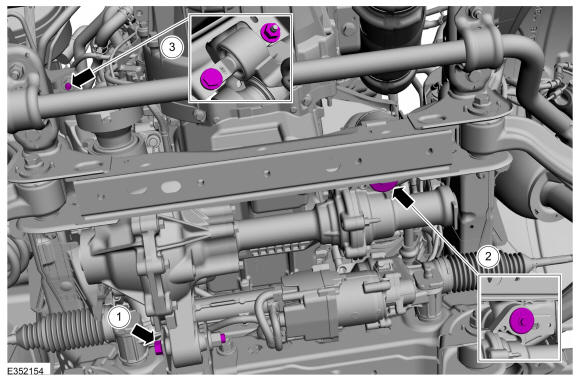

Tighten all axle assembly fasteners.
1. Tighten the front axle cover bushing bolt.
  Torque: 195 lb.ft (265 Nm)
2. Tighten the front axle tube bushing support bracket bolt.
  Torque: 52 lb.ft (70 Nm)
3. Tighten the front axle carrier to bracket bolt and nut.
  Torque:

  Stage 1: 30 lb.ft (40 Nm)

  Stage 2: 70°
Courtesy of FORD MOTOR COMPANY

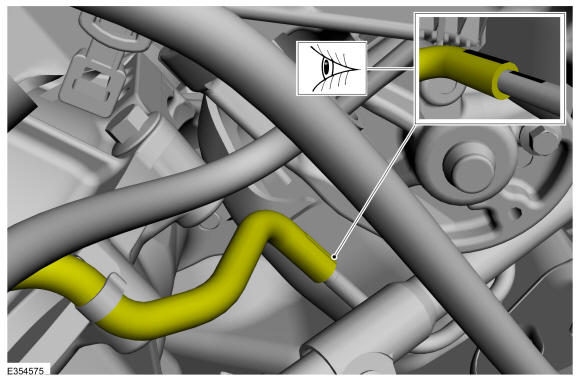

NOTE: Make sure that the component aligns with the installation mark.
- Align the highlighted installation mark on the breather hose and tube.
- Attach the breather hose to the tube.
Courtesy of FORD MOTOR COMPANY

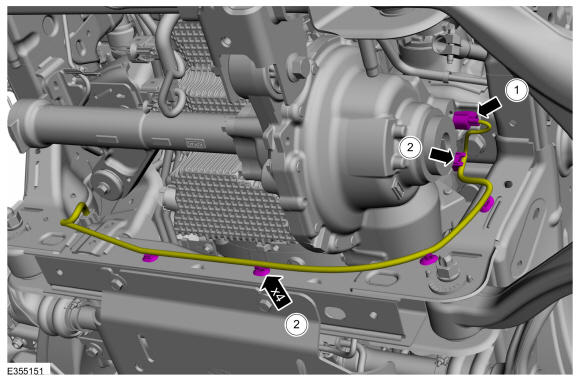

1. Connect the ELD electrical connector.
2. Routing the ELD electrical wiring harness and attach the retainers.
Courtesy of FORD MOTOR COMPANY
Install the front halfshafts. Refer to: Halfshaft .
Install the front driveshaft. Refer to: Front Driveshaft .
Check the front differential fluid level. Refer to: Differential Fluid Level Check .
Install the LH fender splash shield. Refer to: Fender Splash Shield .
Install the rear undershield. Refer to: Engine Rear Undershield .
