Differential Fluid Level Check

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Materials

Check

1. Remove the engine rear undershield. Refer to: Engine Rear Undershield .

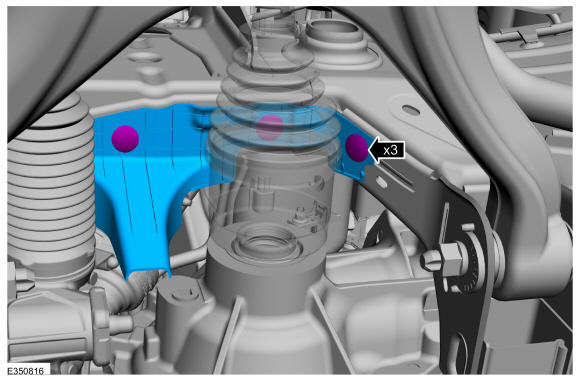

2. If equipped. Remove the retainers and the front fender splash shield.

   Courtesy of FORD MOTOR COMPANY

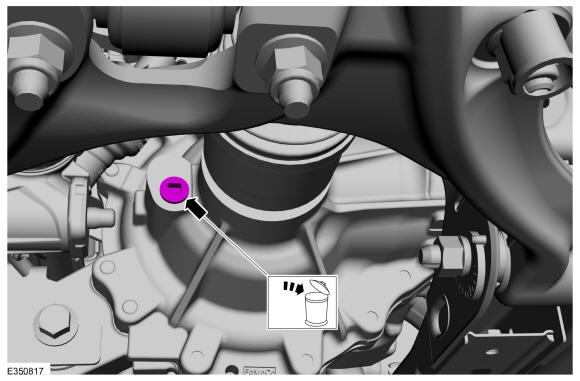

3. Remove and discard the front differential fill plug.

   Courtesy of FORD MOTOR COMPANY

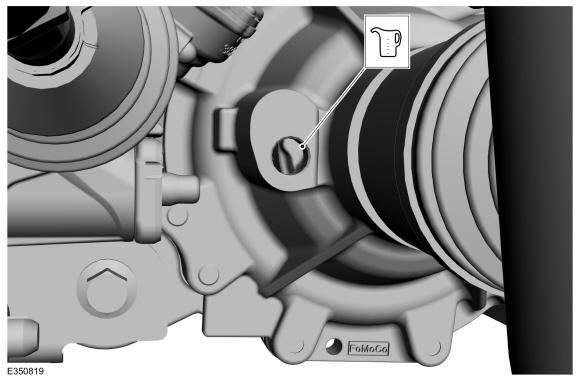

4. Check and top off the differential with clean differential gear lubricant.

   Material: Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant / XY-80W90-QL (WSP-M2C197-A)

   Courtesy of FORD MOTOR COMPANY

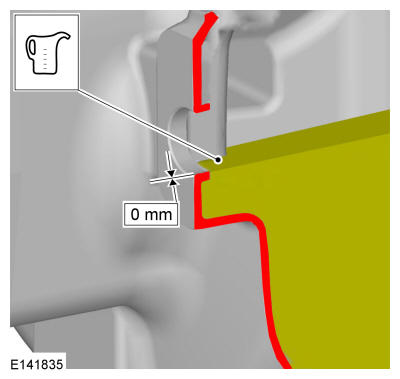

5. Make sure the front differential lubricant level should be to the bottom of fluid fill plug opening.

   Courtesy of FORD MOTOR COMPANY

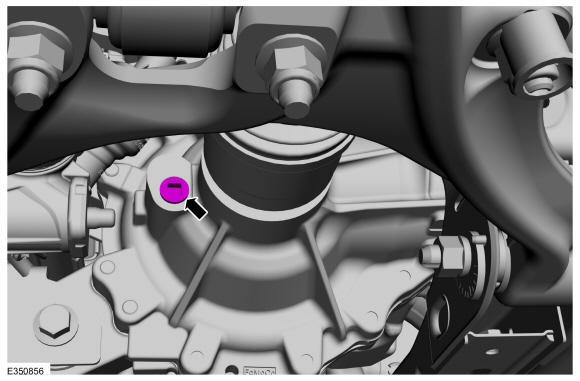

6. NOTE: Make sure that a new component is installed.

   Install the new front differential fill plug.

   Torque: 21 lb.ft (28 Nm)

   Courtesy of FORD MOTOR COMPANY

7. If removed. Install the front fender splash shield and the retainers.

   Courtesy of FORD MOTOR COMPANY

8. Install the engine rear undershield. Refer to: Engine Rear Undershield .
