Console Multifunction Switch: Removal

WARNING: This page is about a different car, the 2019 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

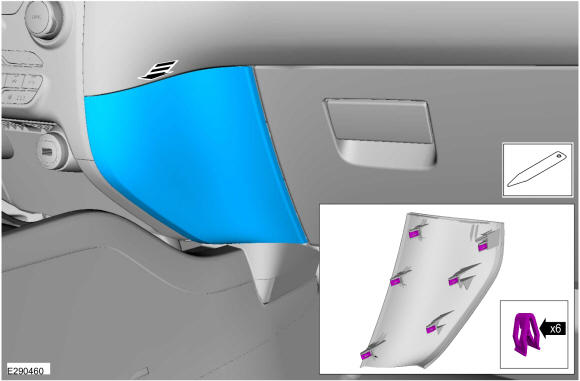

  1. Release the retainers and remove the lower RH center stack trim panel. Use the General Equipment: Interior Trim Remover
    GFD433152Courtesy of FORD MOTOR COMPANY

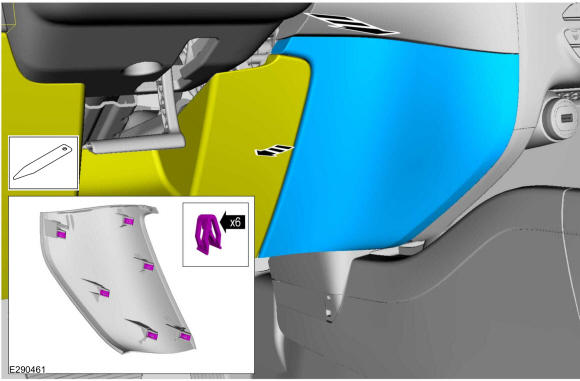

  2. Position aside the lower steering column trim panel, release the retainers and remove the lower LH center stack trim panel. Use the General Equipment: Interior Trim Remover
    GFD433153Courtesy of FORD MOTOR COMPANY

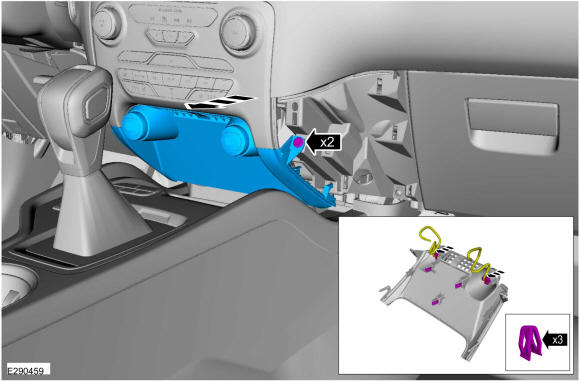

  3. Remove the bolts and the lower center stack trim panel.

    • Disconnect the electrical connectors.

    GFD433154Courtesy of FORD MOTOR COMPANY

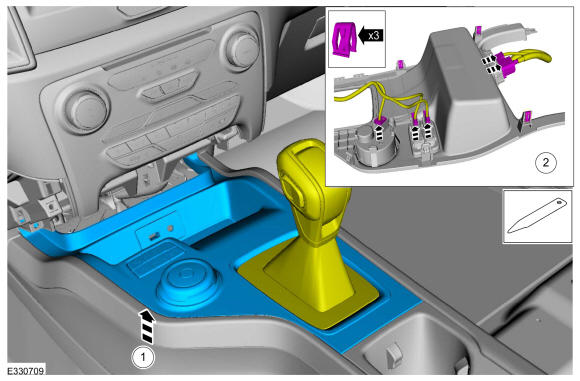

    1. Release the retainers remove the floor console upper trim panel.
    2. Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover
    GFD433155Courtesy of FORD MOTOR COMPANY

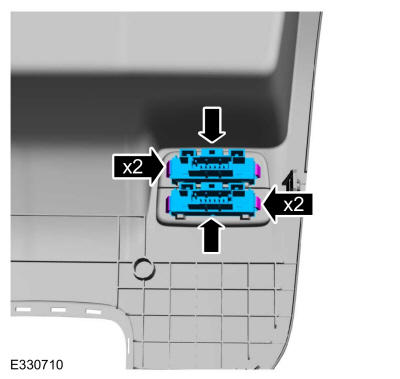

  5. Release the tabs and replace the necessary switch.
GFD433156Courtesy of FORD MOTOR COMPANY
