Selector Lever Cable Adjustment

WARNING: This page is about a different car, the 2019 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Interior Trim Remover

Adjustment

  1. With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting .

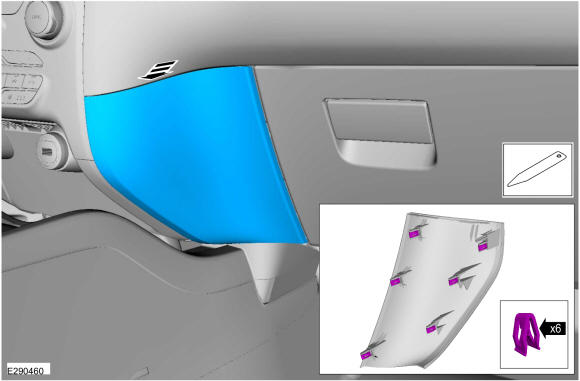

  2. Release the retainers and remove the lower RH center stack trim panel. Use the General Equipment: Interior Trim Remover
    GFD433140Courtesy of FORD MOTOR COMPANY

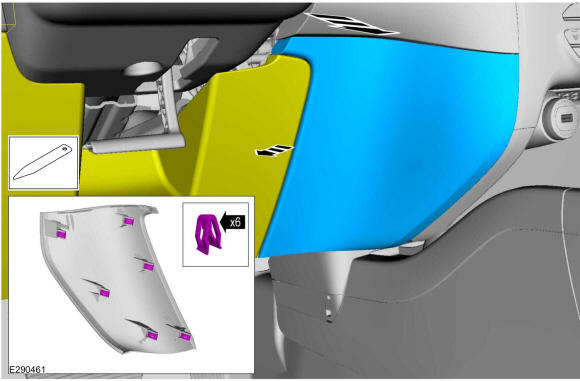

  3. Position aside the lower steering column trim panel, release the retainers and remove the lower LH center stack trim panel. Use the General Equipment: Interior Trim Remover
    GFD433141Courtesy of FORD MOTOR COMPANY

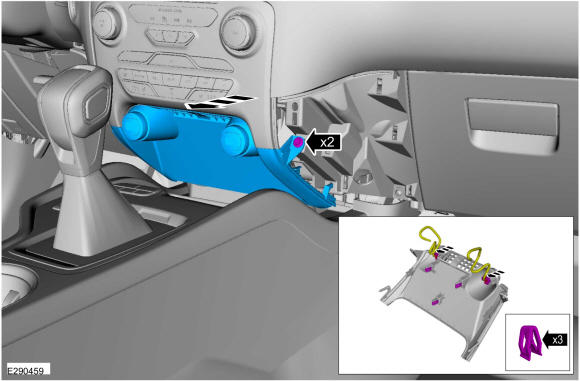

  4. Remove the bolts and the lower center stack trim panel.

    • Disconnect the electrical connectors.

    GFD433142Courtesy of FORD MOTOR COMPANY

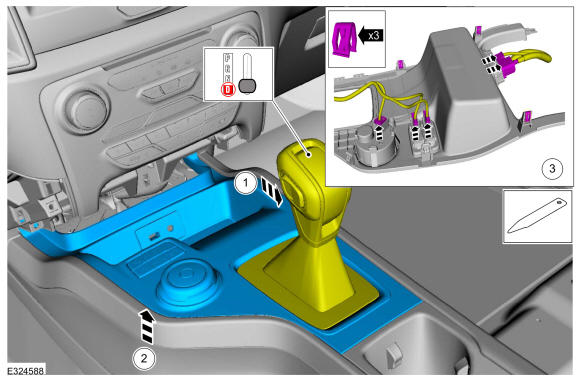

    1. Position the selector lever in D.
    2. Release the retainers remove the floor console upper trim panel.
    3. Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover
    GFD433143Courtesy of FORD MOTOR COMPANY

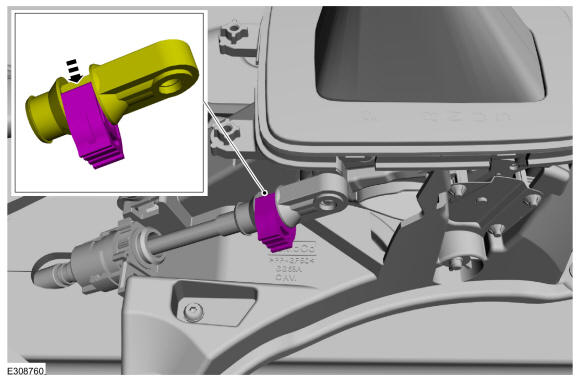

  6. Unlock the selector lever cable adjuster.
    GFD433144Courtesy of FORD MOTOR COMPANY

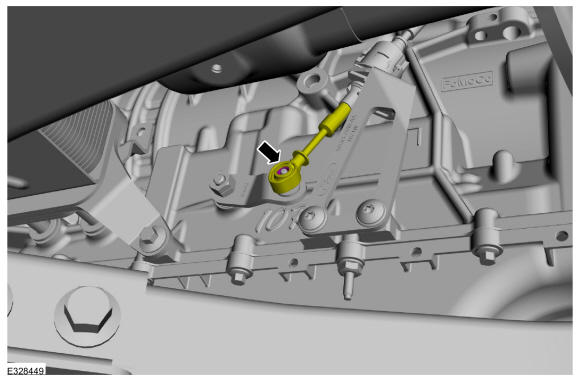

  7. Disconnect the selector lever cable from the transmission manual lever.
    GFD433145Courtesy of FORD MOTOR COMPANY

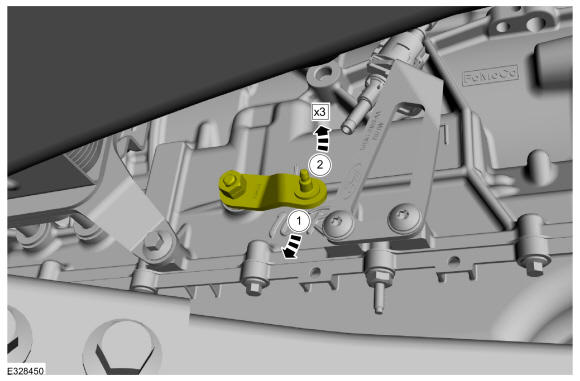

  8. Position the manual lever in D.

    1. Rotate the manual lever clockwise until it stops.
    2. Rotate the manual lever counterclockwise 3 detents.

    GFD433146Courtesy of FORD MOTOR COMPANY
  9. Connect the selector lever cable to the transmission manual lever.
    GFD433145Courtesy of FORD MOTOR COMPANY

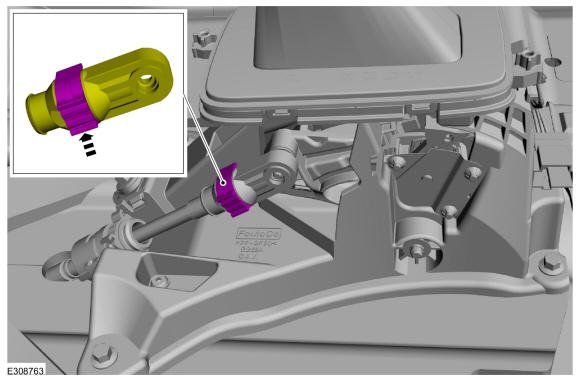

  10. NOTE: Ensure that the selector lever cable adjustment mechanism is locked.

    Lock the selector lever cable adjuster.

    GFD433147Courtesy of FORD MOTOR COMPANY

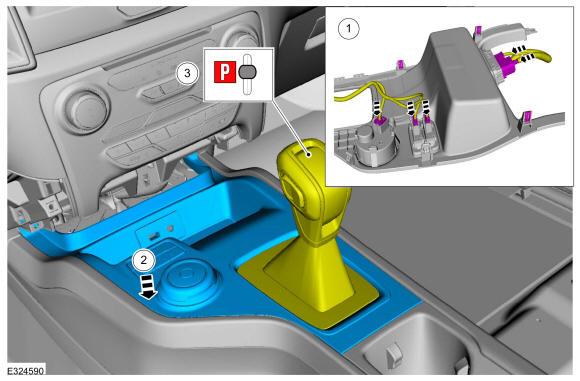

    1. Connect the electrical connectors.
    2. Install the floor console upper trim panel.
    3. Position the selector lever in P.
    GFD433148Courtesy of FORD MOTOR COMPANY

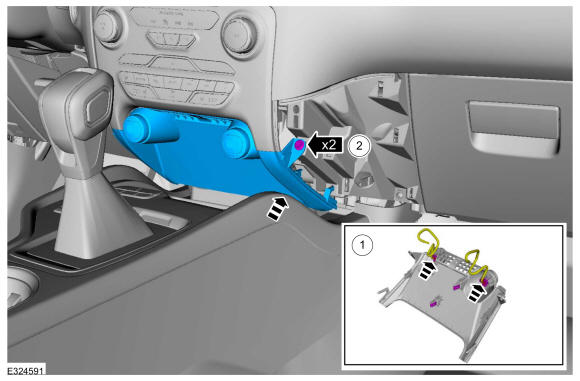

    1. Connect the electrical connectors.
    2. Install the lower center stack trim panel and the bolts.

      Torque: 17 lb.in (1.9 Nm)

    GFD433149Courtesy of FORD MOTOR COMPANY

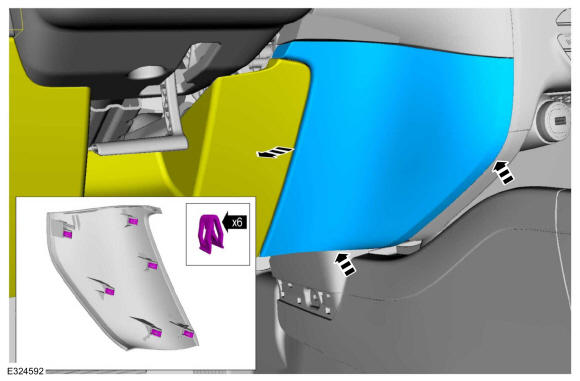

  13. Install the lower LH center stack trim panel and position back the lower steering column trim panel. Use the General Equipment: Interior Trim Remover
    GFD433150Courtesy of FORD MOTOR COMPANY

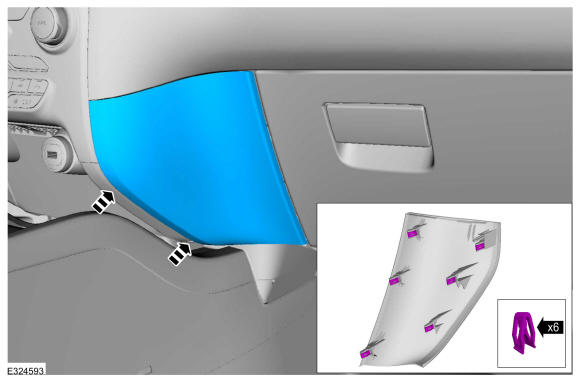

  14. Install the lower RH center stack trim panel.
    GFD433151Courtesy of FORD MOTOR COMPANY
  15. Verify the vehicle starts in P and N only and that the reverse lamps illuminate in R.
