Tie Rod: Installation

To install, reverse the removal procedure.
NOTE: Thoroughly remove any abrasive material or damage to the steering gear can result.

NOTE: Clean gear before installing the new O-ring.

Clean the specified area. And install the O-ring seal provided with the bellows boot kit.

Courtesy of FORD MOTOR COMPANY

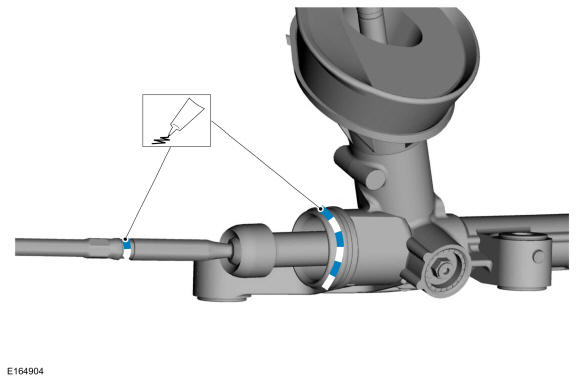

Apply the specified grease to the steering gear-to-bellows boot mating surface and bellows boot groove on the inner tie-rod.
Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

Courtesy of FORD MOTOR COMPANY
Check and if necessary, adjust front toe. Refer to: Front Toe Adjustment .
